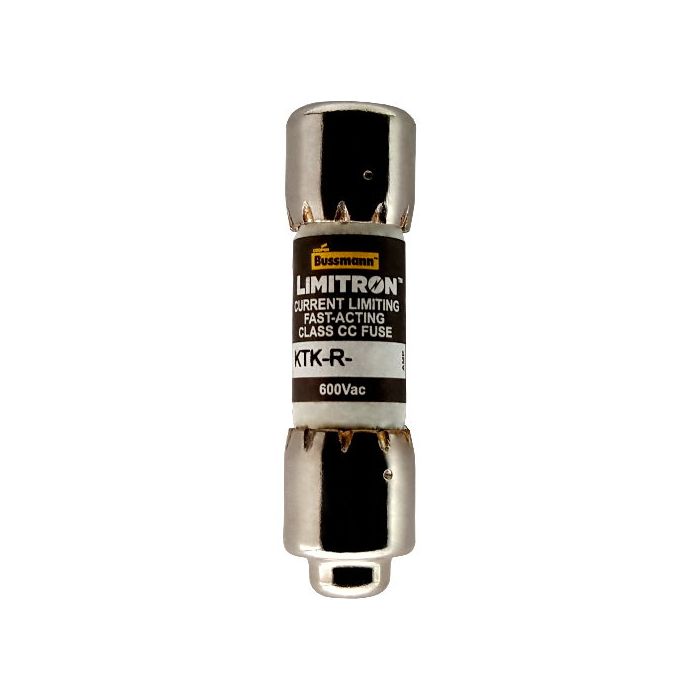

KTK-R-7 - Bussmann Eaton 7 Amp 600 VAC Class CC Fast Acting Fuse

KTK-R-7

KTK-R-7 is a Bussmann Eaton 7 Amp, 600 VAC Class CC fast acting fuse designed for branch circuit protection.This KTK-R series fuse features a fast-acting characteristic with a 200 kA interrupt rating at 600 VAC. It has a cylindrical cartridge body measuring approximately 13/32 inch diameter by 1-1/2 inch length. The fuse is Class CC rated with rejection type design to ensure proper application and safety compliance. It is UL listed, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 7 Amps
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Fuse Type: Fast Acting (Fast Blow)
• Class: CC
• Body Style: Cylindrical Cartridge
• Size: 13/32 inch diameter x 1-1/2 inch length
• Rejection Type: Class CC
• Certifications: UL Listed, CSA Certified, CE, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-R-7
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTK-R
• Voltage : 600
• Amperage : 7
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712420662
• GTIN : 00051712420662
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.02
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
