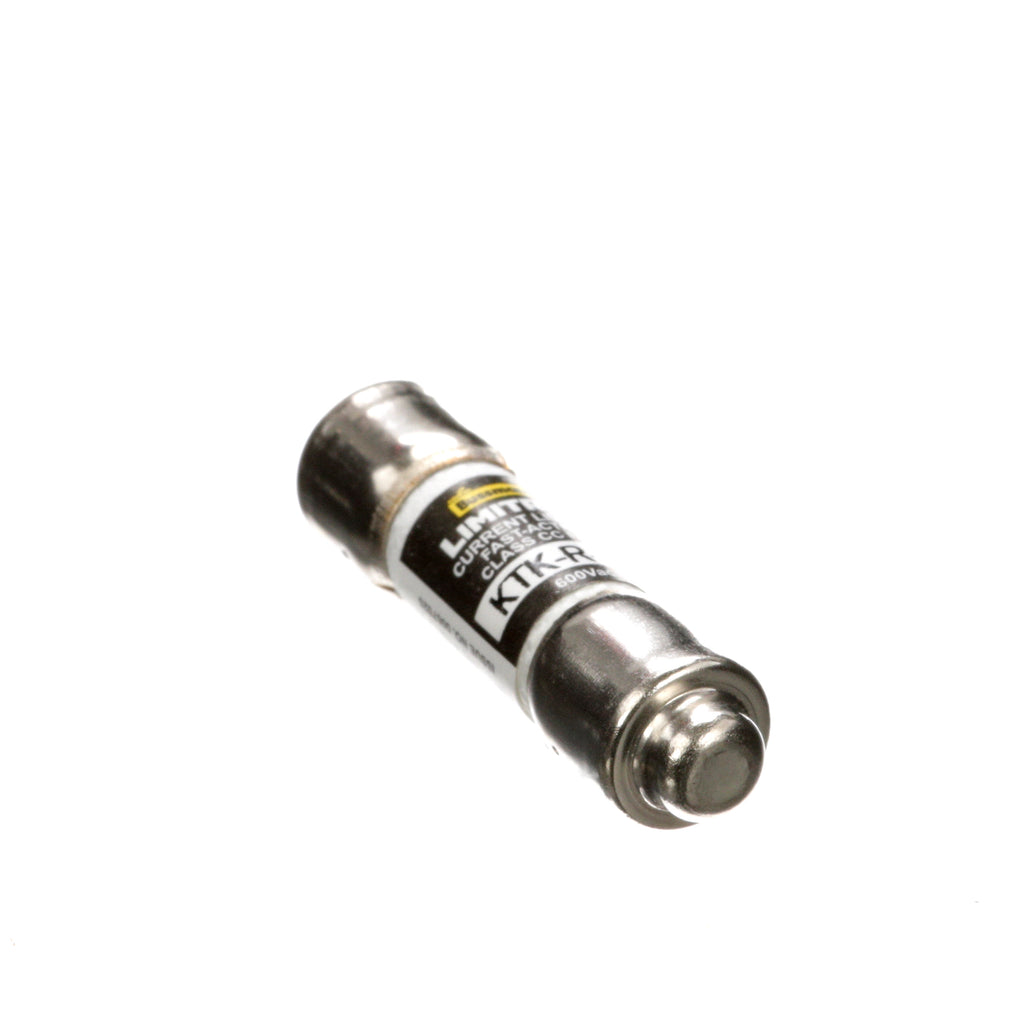

KTK-R-6 - Eaton Bussmann 6A 600V Class CC Fast-Acting Fuse, Limitron, Rejection Style, 200kA Interrupt Rating

KTK-R-6

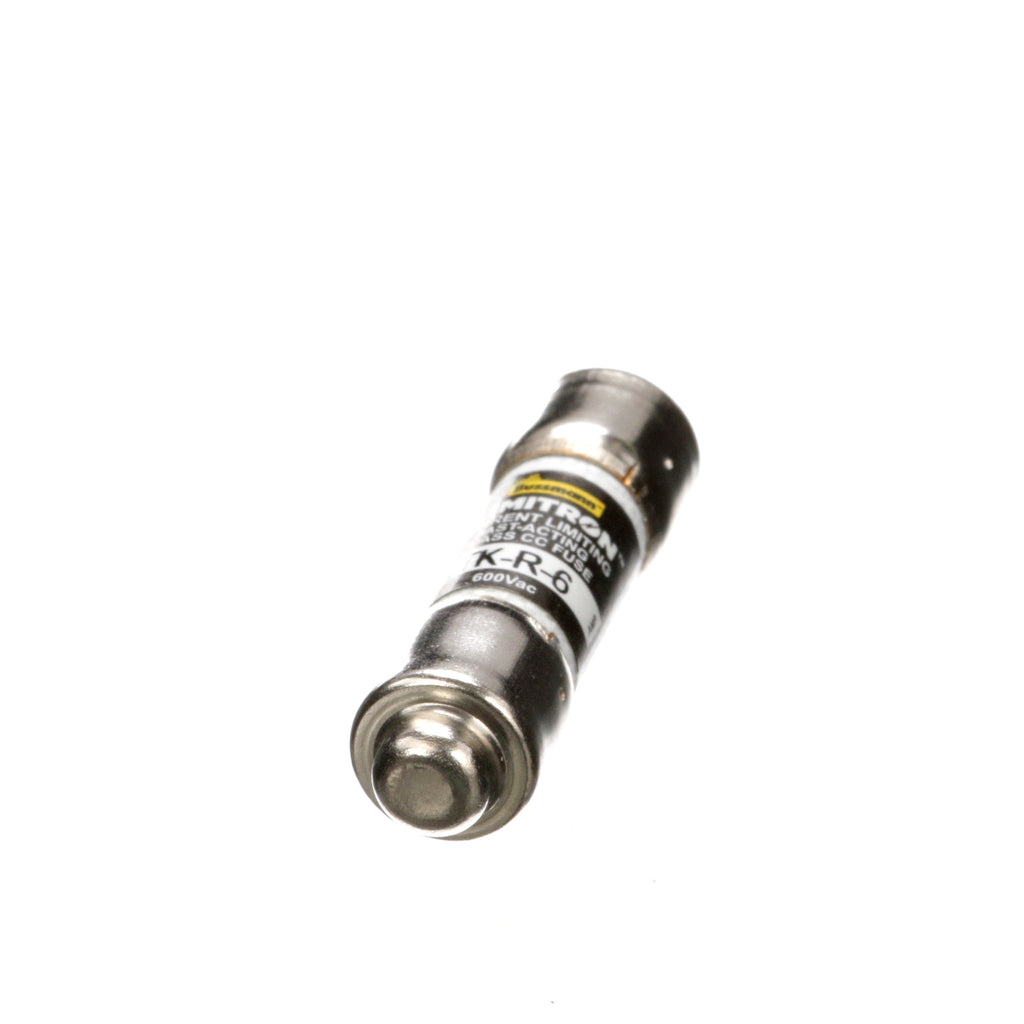

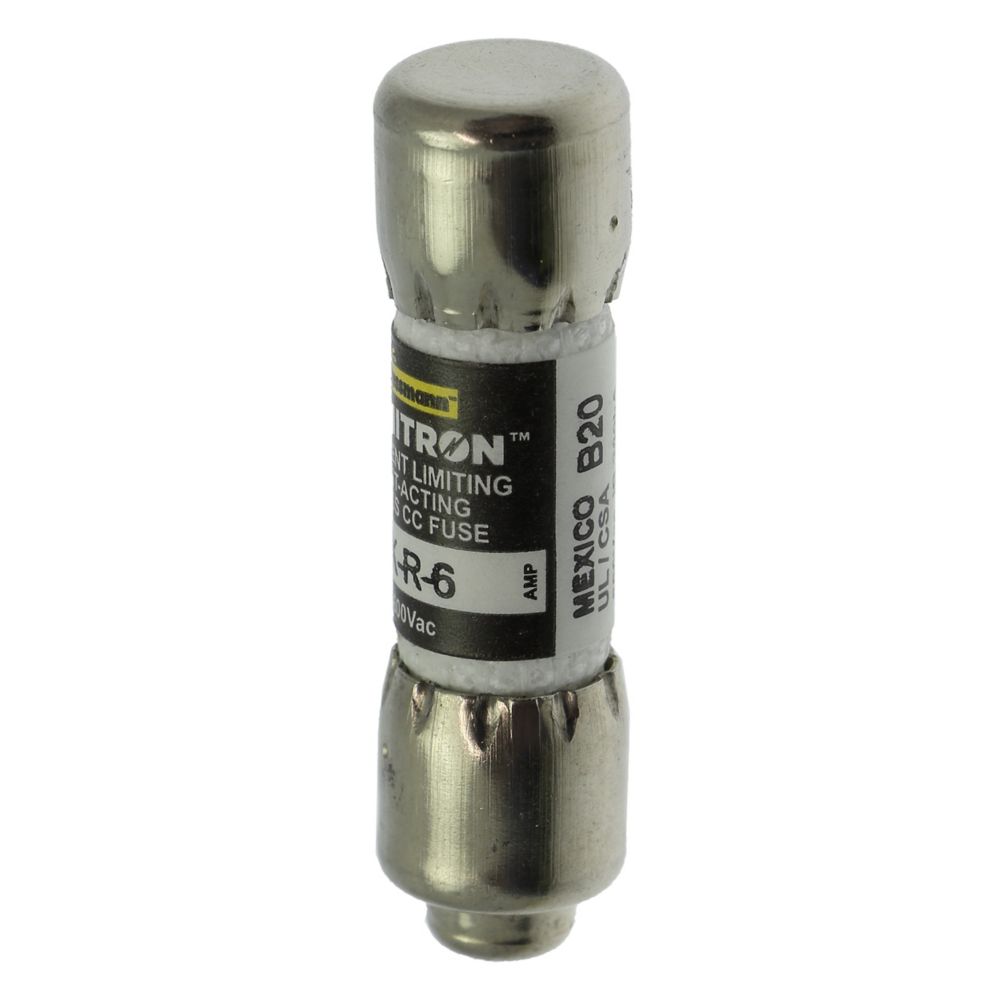

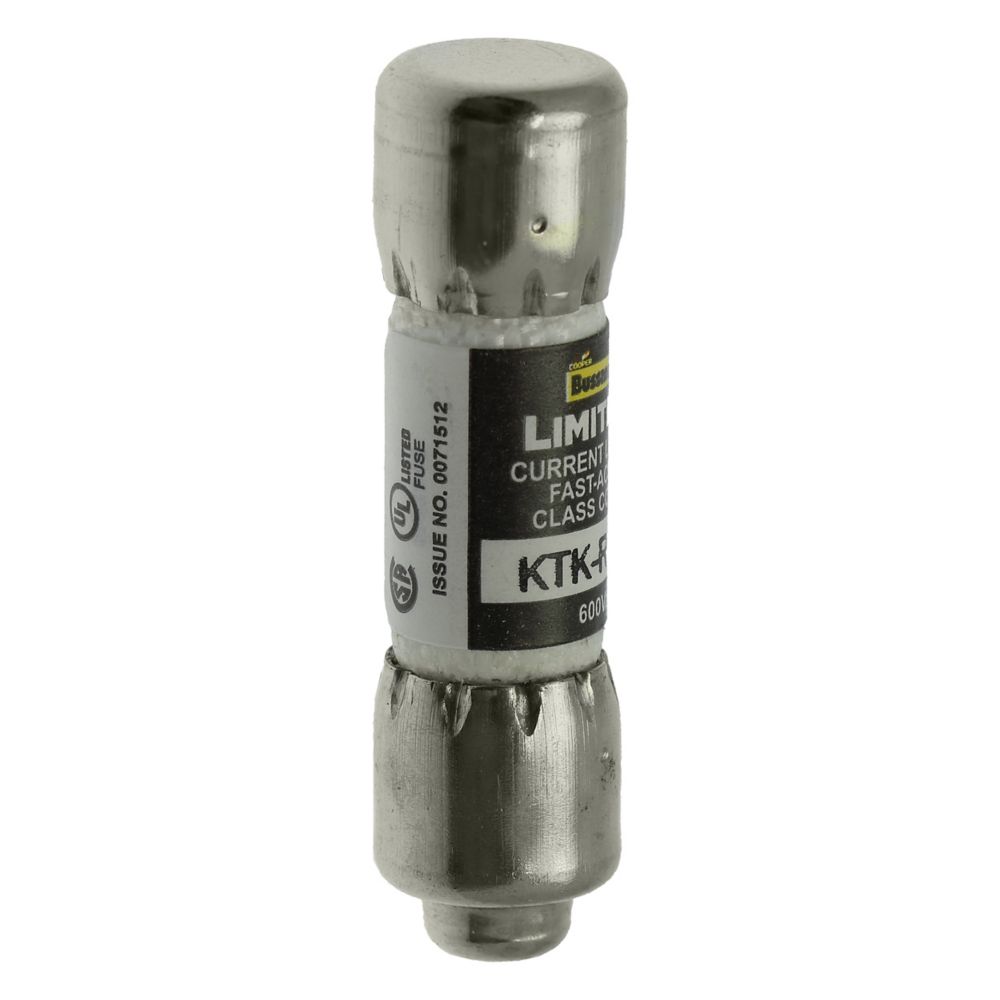

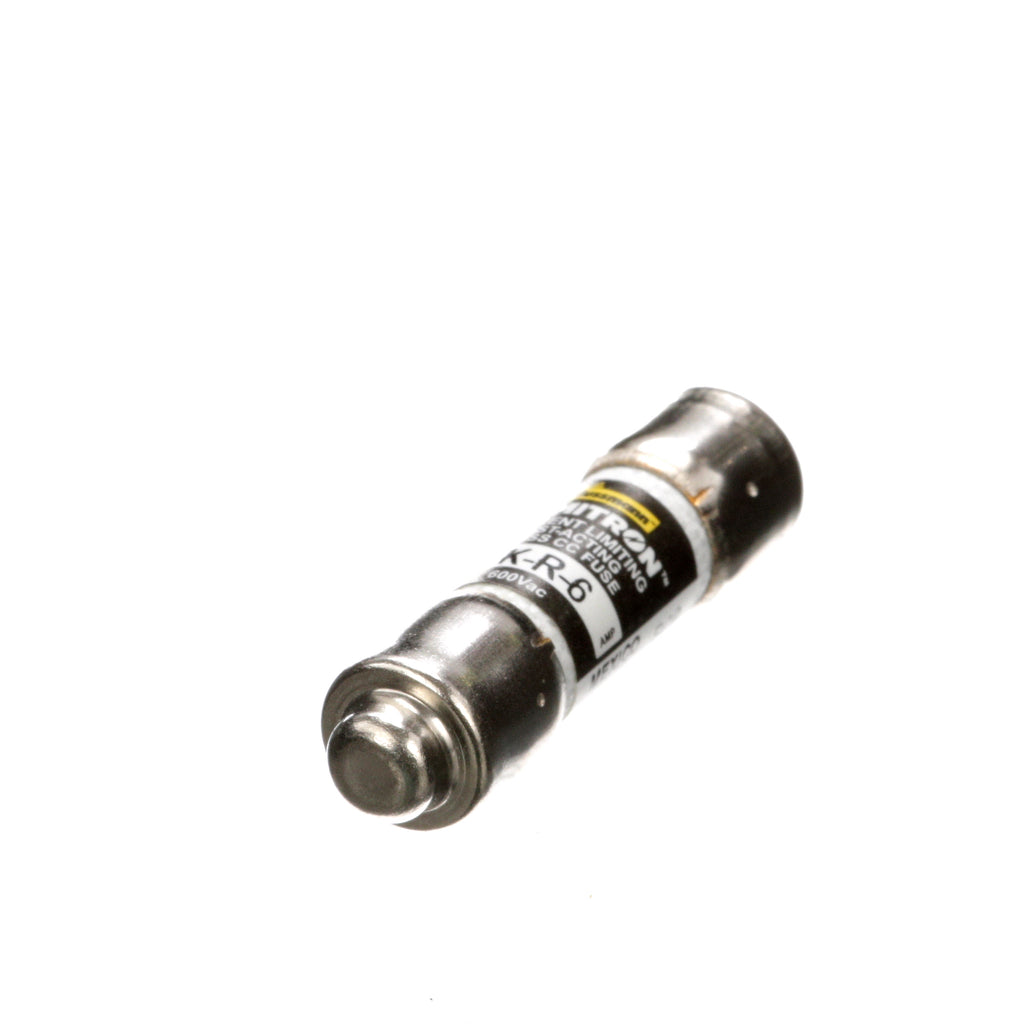

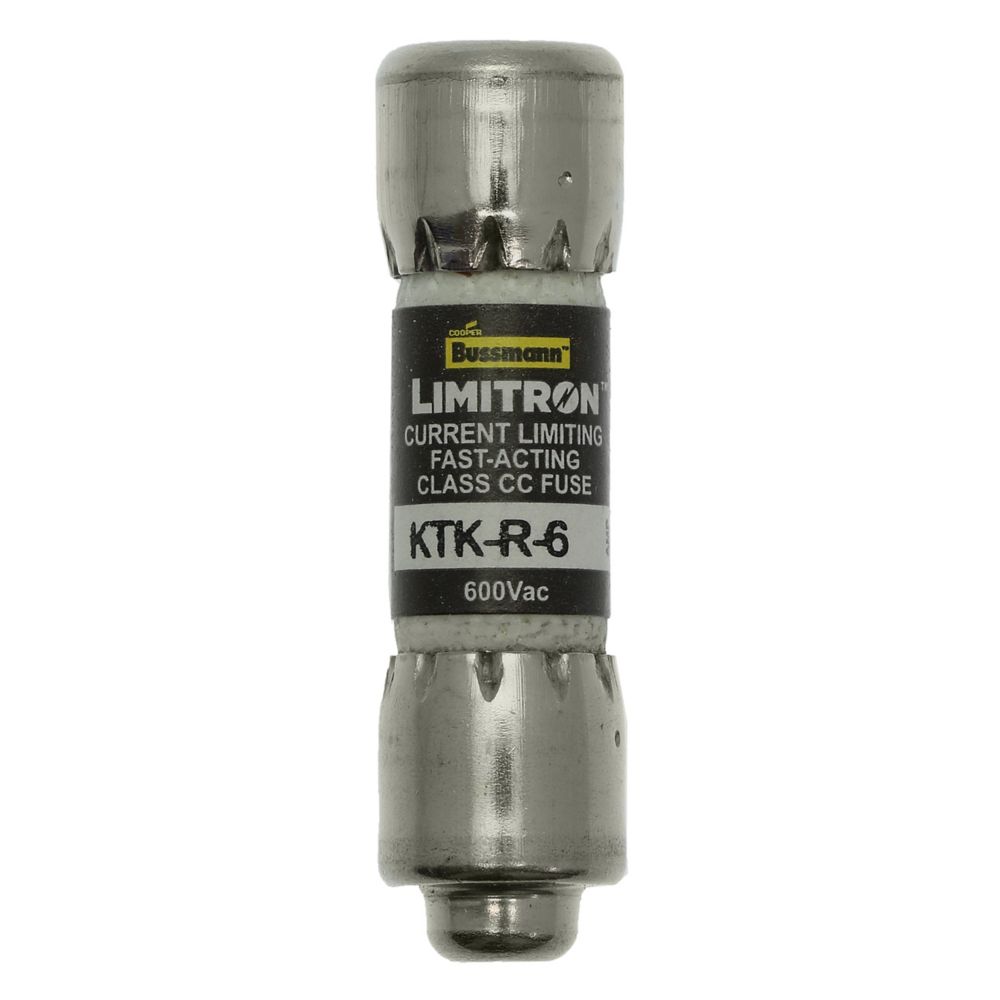

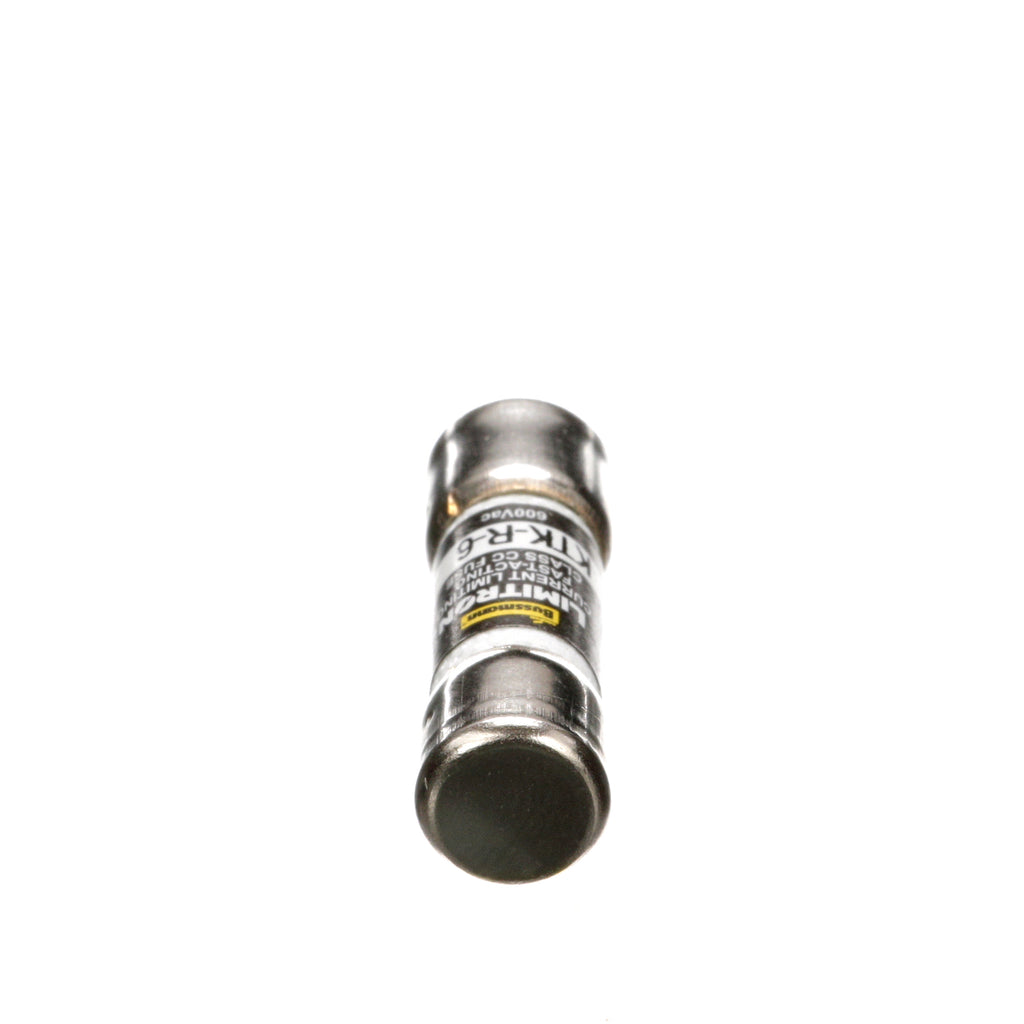

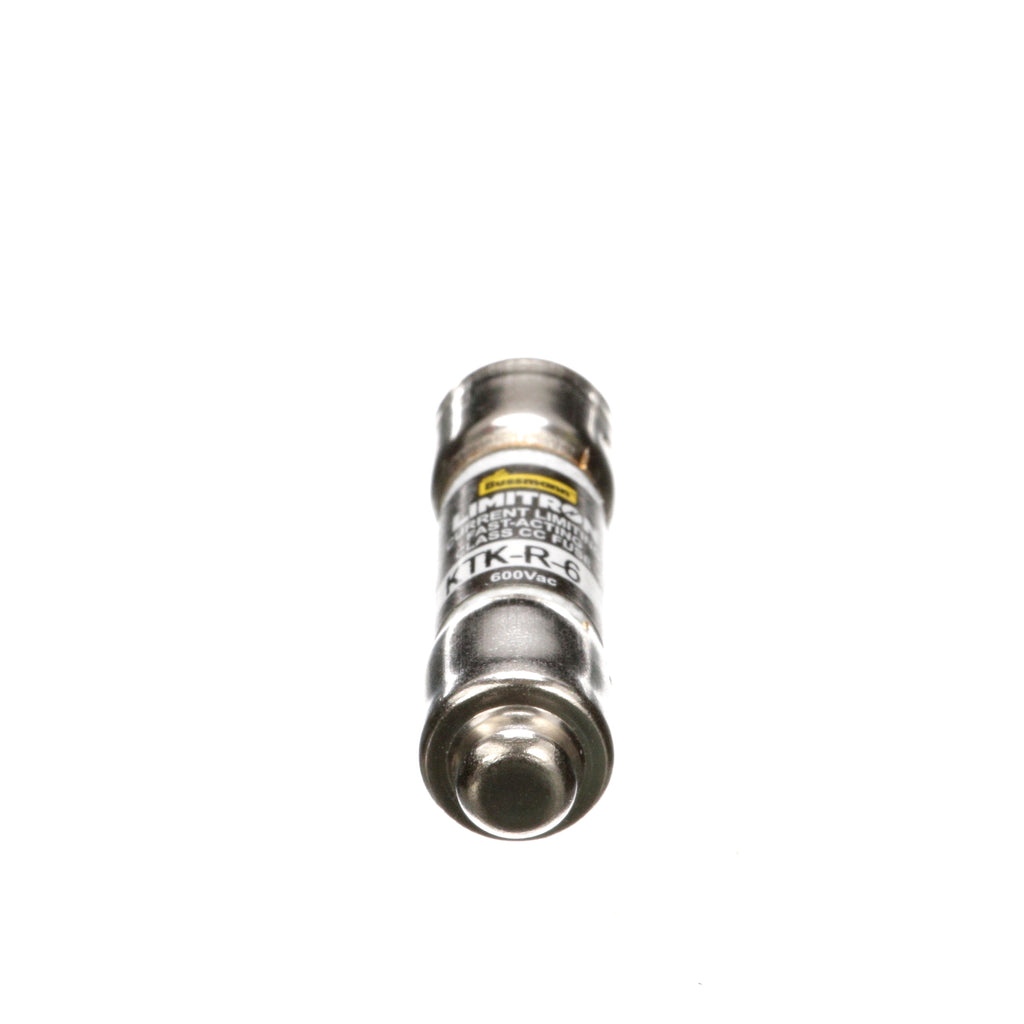

KTK-R-6 is a fast-acting Class CC fuse from Eaton Bussmann designed for branch circuit protection with a 6 amp rating and 600V maximum voltage.This Limitron series fuse features current-limiting, fast-acting characteristics with a rejection style design to prevent misapplication. It has a high interrupting rating of 200kA at 600Vac and is UL listed, CSA certified, CE marked, and RoHS compliant. The fuse uses a melamine tube with ferrule terminals and is suitable for protecting control circuit transformers and other branch circuits.

Key Specifications
• Amperage: 6 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Class CC, Fast-Acting
• Series: KTK-R Limitron
• Interrupting Rating: 200kA at 600Vac
• Mounting Type: Rejection Style
• Fuse Body: Melamine Tube with Nickel-Plated Ferrules
• Certifications: UL Listed, CSA Certified, CE, RoHS Compliant
• Dimensions: Approx. 0.41" diameter x 1.5" length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-R-6
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTK-R
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712420655
• GTIN : 00051712420655
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
