Product Info
- Manufacturer: Bussmann
- Sub-Category: Low Voltage Fuse
Description
KTK-R-5

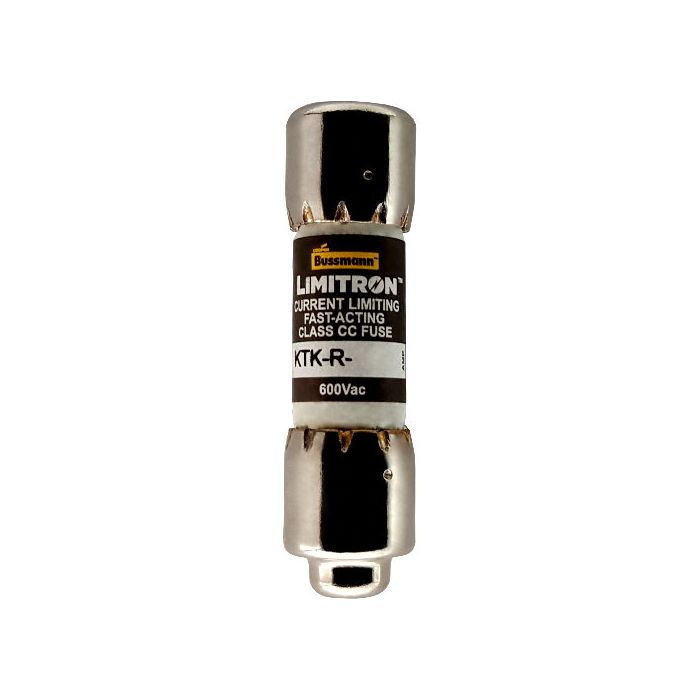

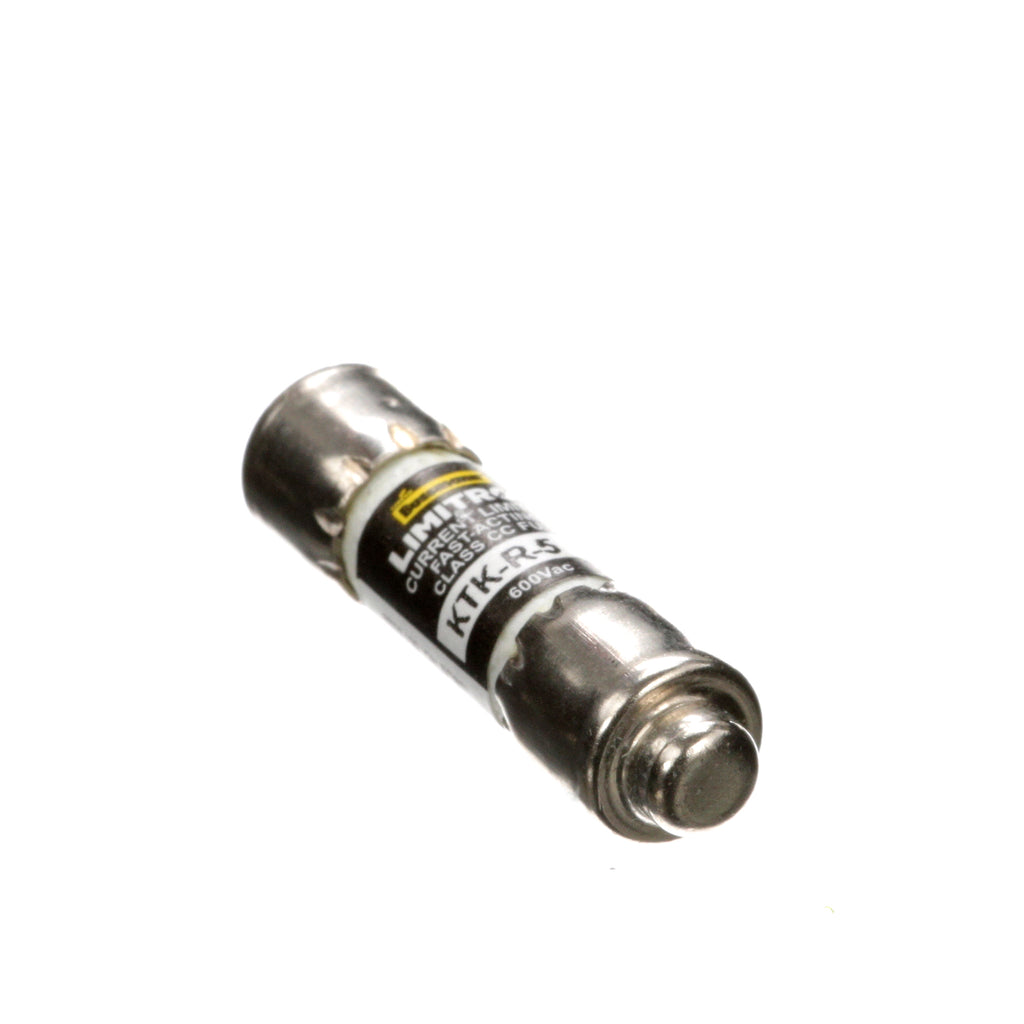

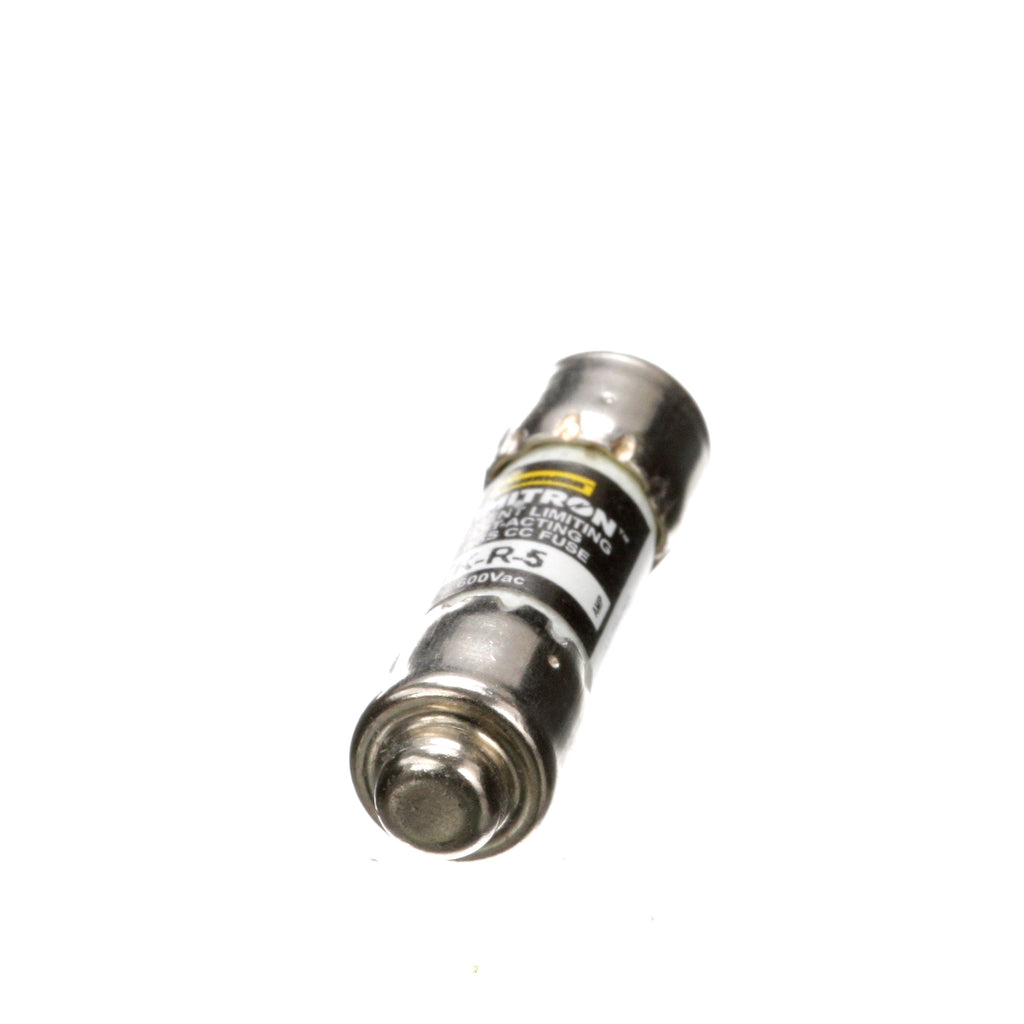

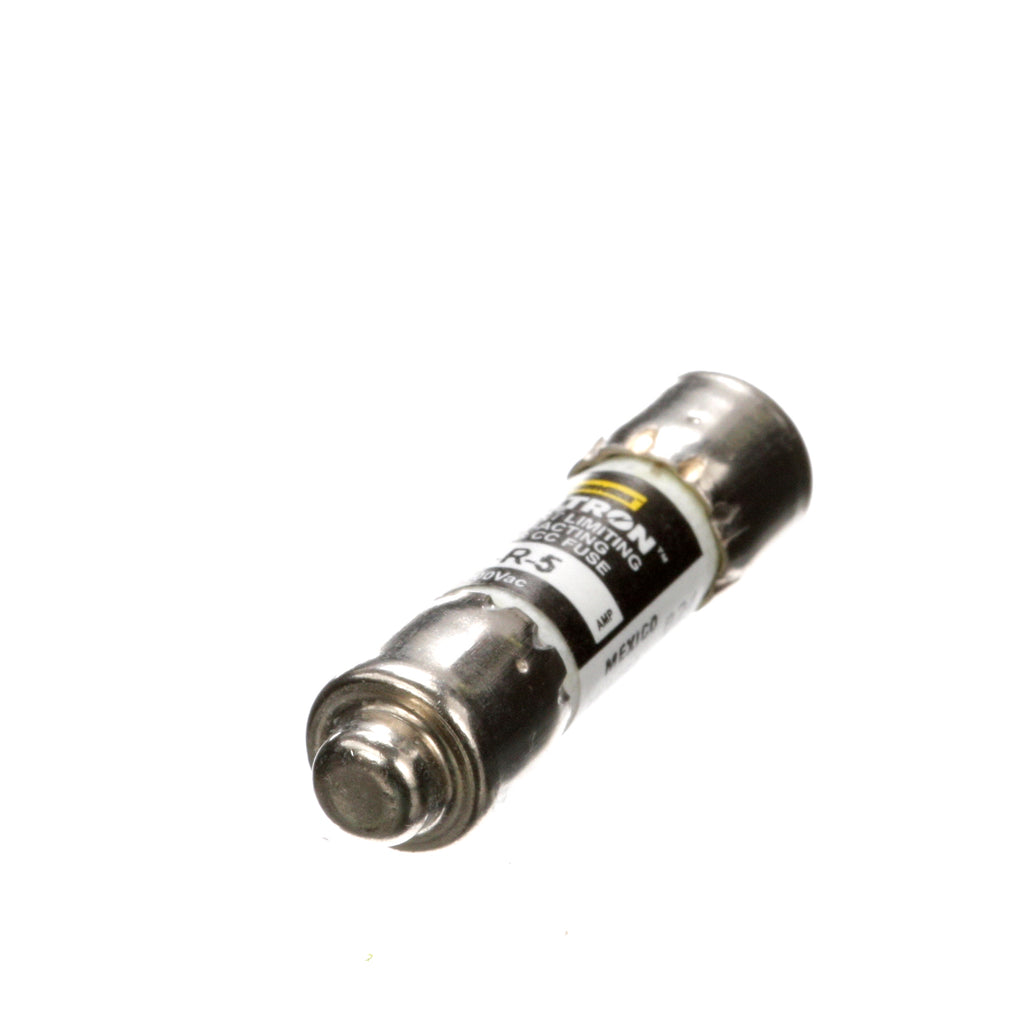

KTK-R-5 is a fast-acting Class CC fuse from Eaton Bussmann designed for industrial and commercial circuit protection.This 5 amp, 600 volt fuse features a Limitron series design with a compact size of 1.5 inches length and 0.41 inches diameter. It provides a high interrupting rating of 200kA at 600Vac, ensuring superior current limitation and protection against short-circuit events. The fuse is a rejection type, compatible with standard and rejection-style holders, and is UL listed and CSA certified for safety and reliability.
- Key Specifications
- Amperage: 5 A
- Voltage Rating: 600 Vac
- Fuse Type: Fast Acting, Current Limiting
- Series: KTK-R Limitron
- Interrupting Rating: 200 kA at 600 Vac
- Dimensions: 1.5 in (38.1 mm) length x 0.41 in (10.3 mm) diameter
- Mounting Type: Rejection style fuse holder compatible
- Certifications: UL Listed, CSA Certified
- Fuse Class: Class CC
Specifications
- Part Number: KTK-R-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : KTK-R
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 051712420648
- GTIN : 00051712420648
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.01
- Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
