KTK-R-2/10 - Bussmann 0.2 Amp 600 Volt Class CC Fast Acting Fuse

KTK-R-2/10

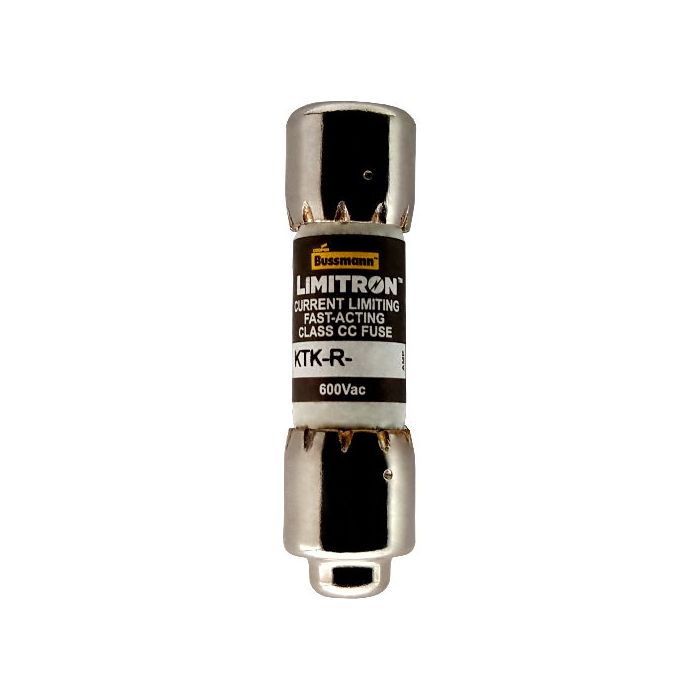

KTK-R-2/10 is a Bussmann Class CC fast acting fuse rated for 0.2 amps and 600 volts AC, designed for branch circuit protection.This fuse features a LIMITRON® fast acting design with a melamine tube and nickel plated bronze end caps. It has a physical size of 0.41" x 1.5" and a rejection type body to ensure proper fuse replacement. The KTK-R-2/10 offers a high interrupting rating of 200,000 AIC RMS at 600 VAC, meeting UL 248-14 and CSA C22.2 No. 248.14 standards. It is UL listed, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 0.2 Amp (2/10 Amp)
• Voltage Rating: 600 Volts AC
• Fuse Class: Class CC
• Fuse Type: Fast Acting (LIMITRON®)
• Interrupting Rating: 200,000 AIC RMS @ 600 VAC
• Physical Size: 0.41" diameter x 1.5" length
• Mounting Type: Cartridge Fuse, rejection type
• End Caps: Nickel Plated Bronze
• Agency Approvals: UL Listed (Std. 248-14), CSA Certified (C22.2 No. 248.14), CE, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KTK-R-2/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KTK-R
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1



Product Data

• UPC : 051712420532
• GTIN : 00051712420532
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
