KTK-R-12 - Eaton Bussmann 12 Amp 600 Vac Class CC Fast-Acting Fuse, Rejection Type, 200kA Interrupt Rating

KTK-R-12

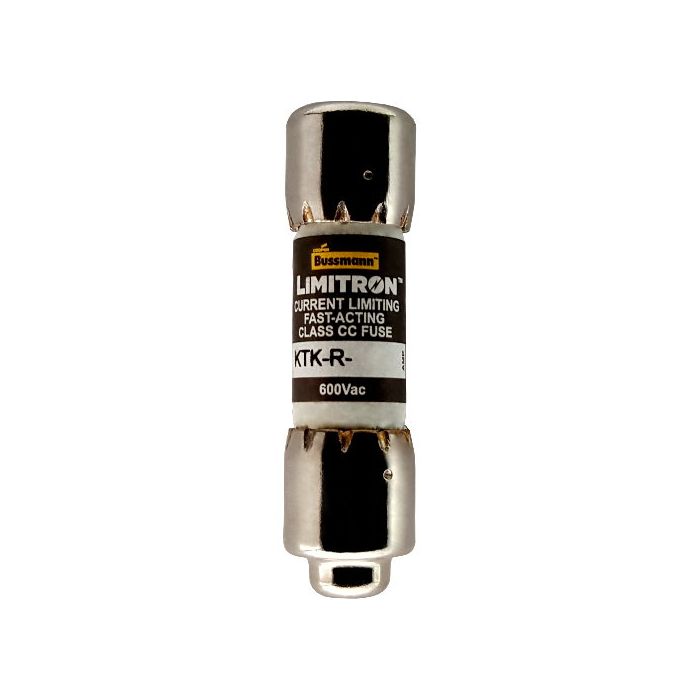

KTK-R-12 is a 12 Amp, 600 Vac, Class CC fast-acting fuse from Eaton Bussmann designed for branch circuit protection.This KTK-R series fuse features a dual-element, current-limiting design with a rejection style to ensure proper fuse holder compatibility. It has a high interrupting rating of 200,000 Amps at 600 Vac, providing superior protection for electrical circuits. The fuse is constructed with a melamine tube and nickel-plated brass end caps, measuring 13/32 inch in diameter by 1-1/2 inch in length. It is UL 248-4, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 12 Amps
• Voltage Rating: 600 Vac
• Fuse Class: CC
• Fuse Type: Fast-Acting, Dual-Element, Current-Limiting
• Interrupting Rating: 200,000 Amps RMS Symmetrical
• Mounting Type: Rejection Style
• Material: Melamine Tube with Nickel-Plated Brass End Caps
• Dimensions: 13/32 inch Diameter x 1-1/2 inch Length
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-R-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTK-R
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712420693
• GTIN : 00051712420693
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
