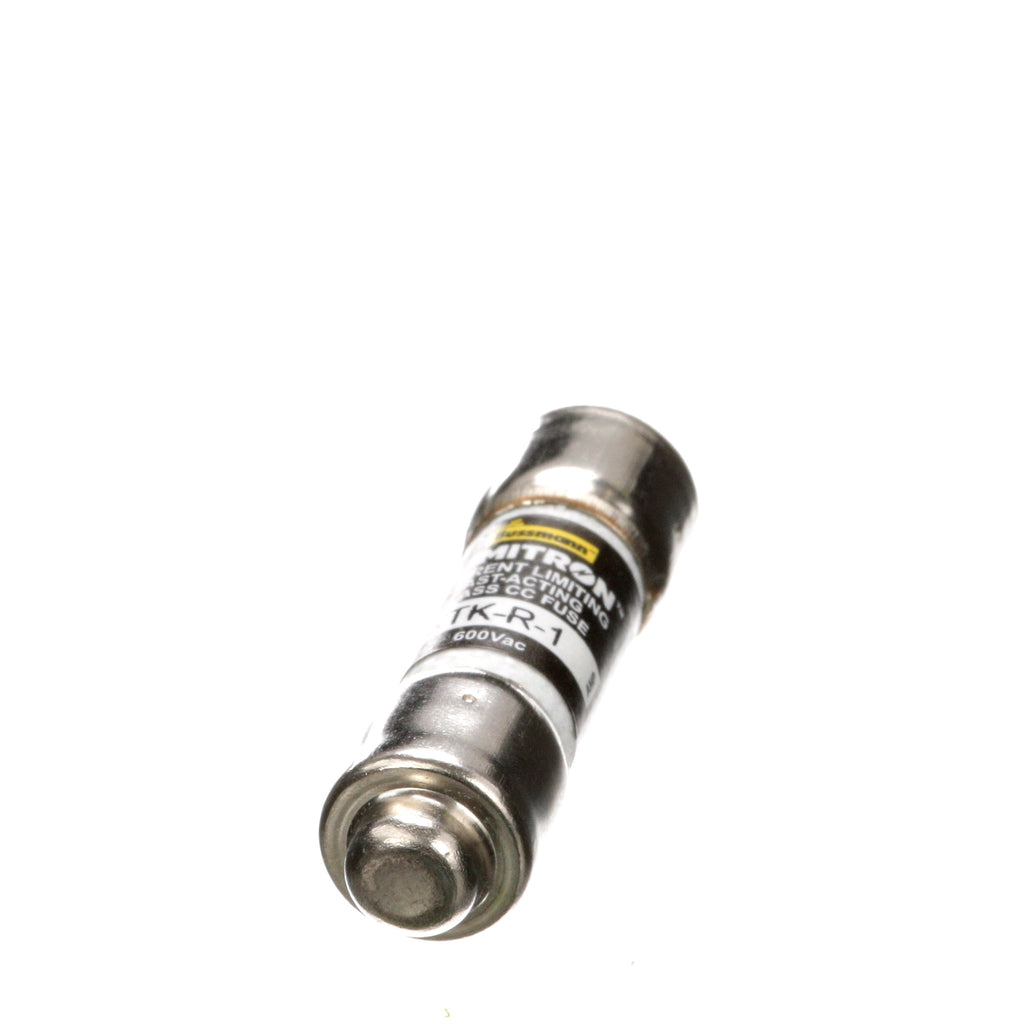

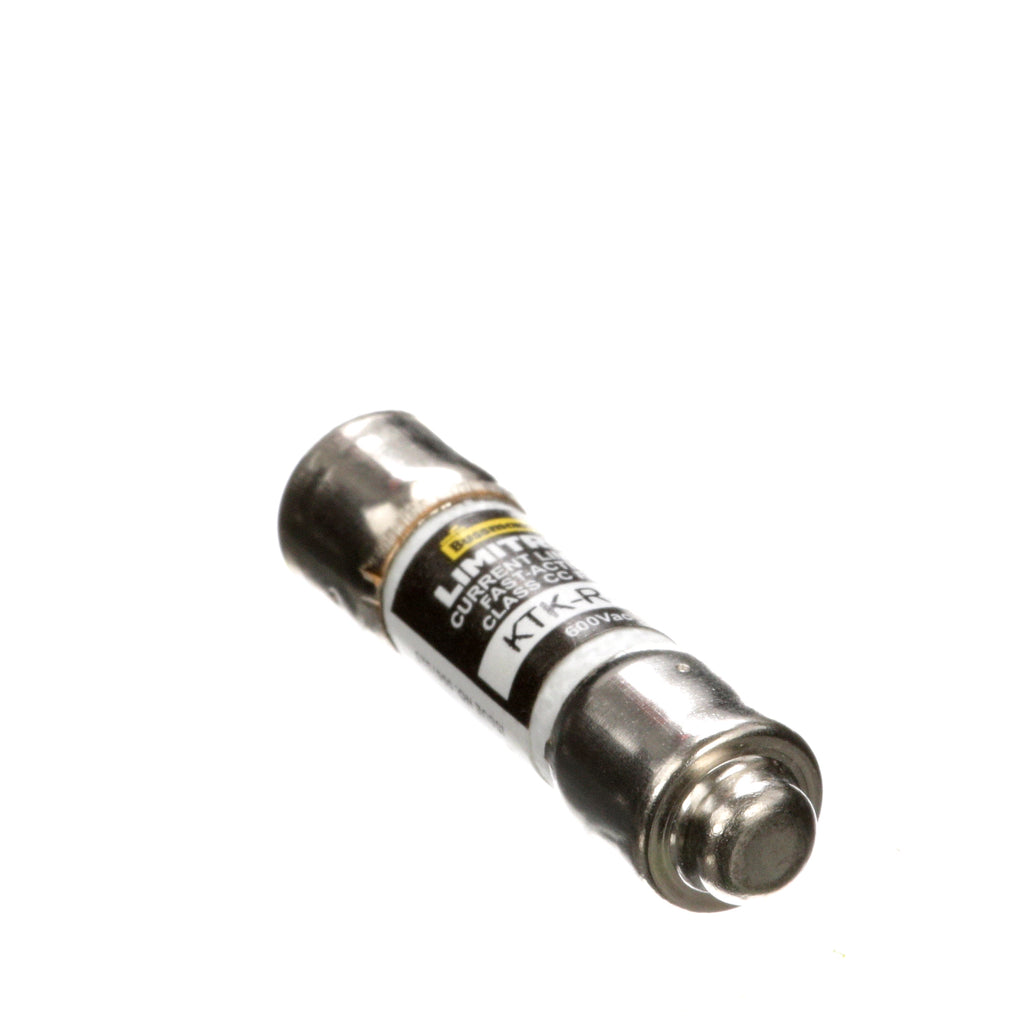

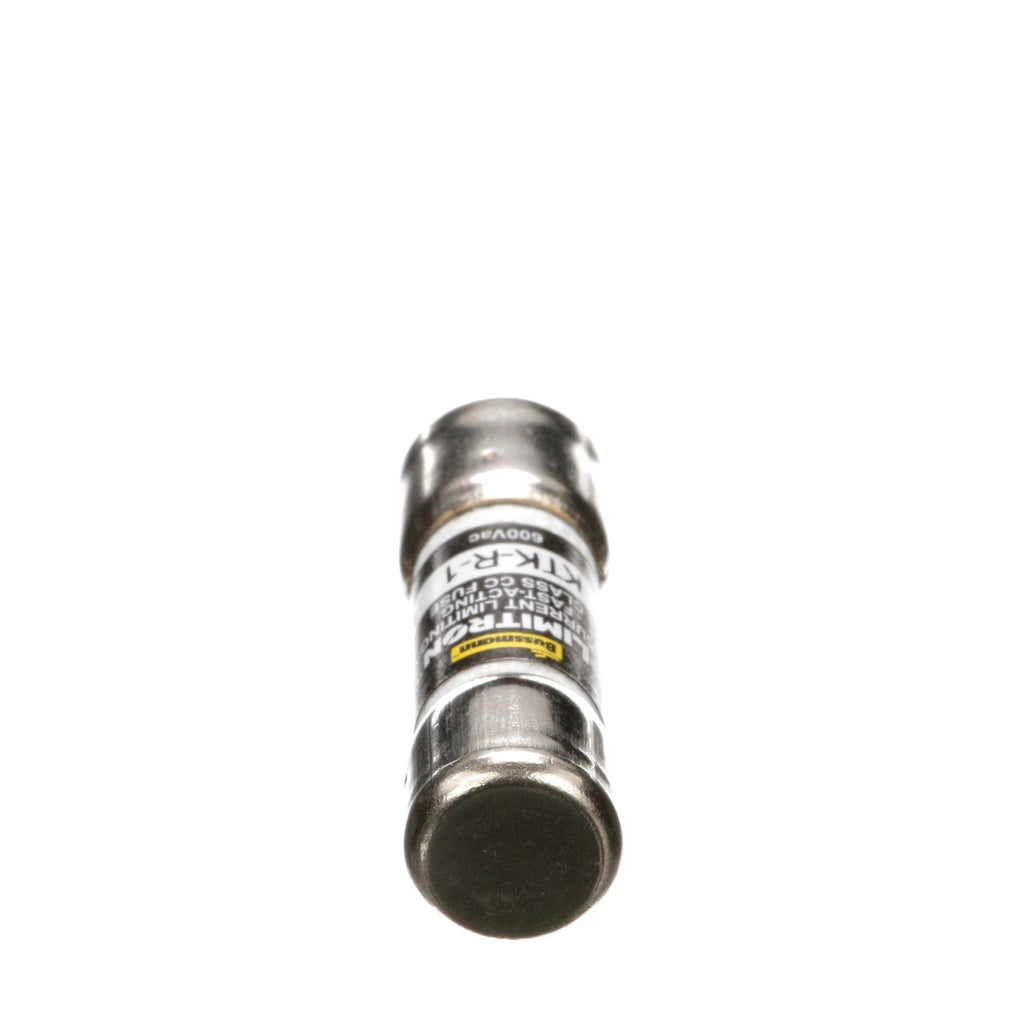

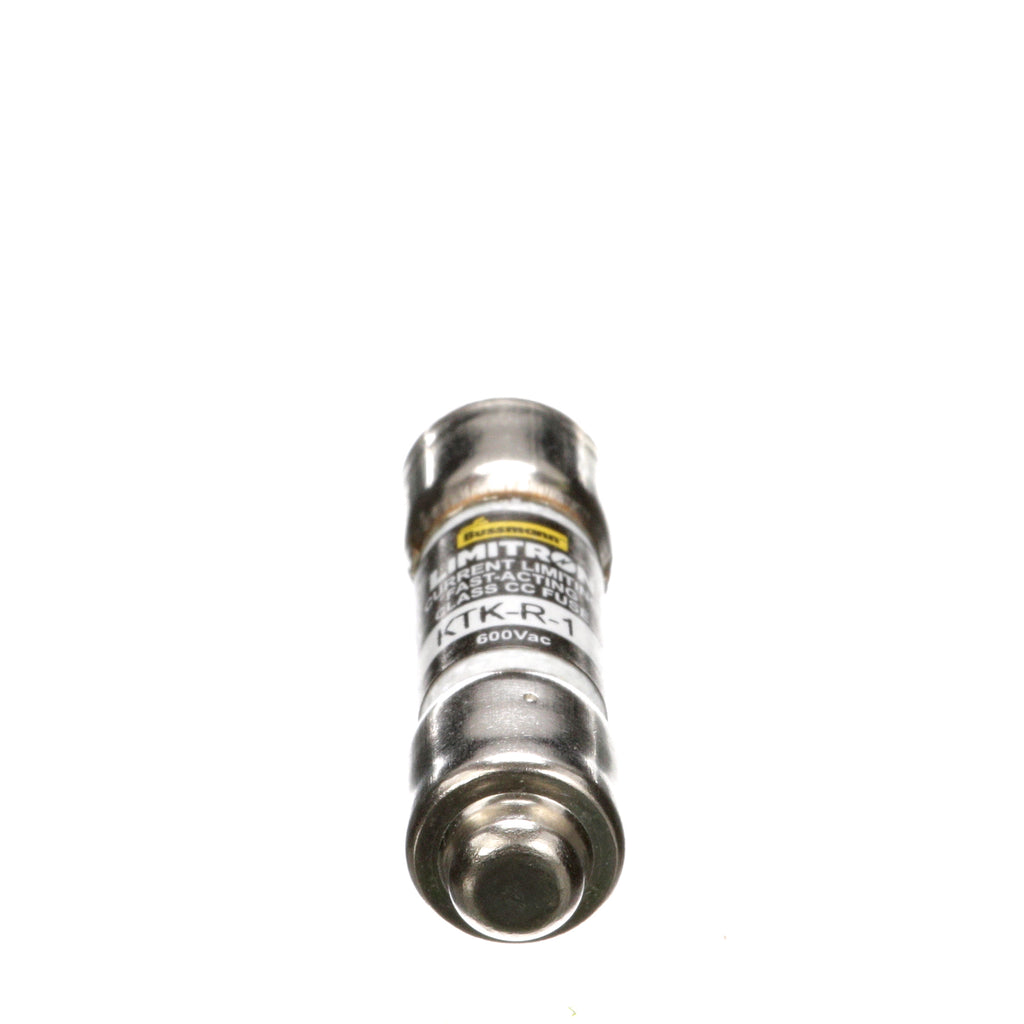

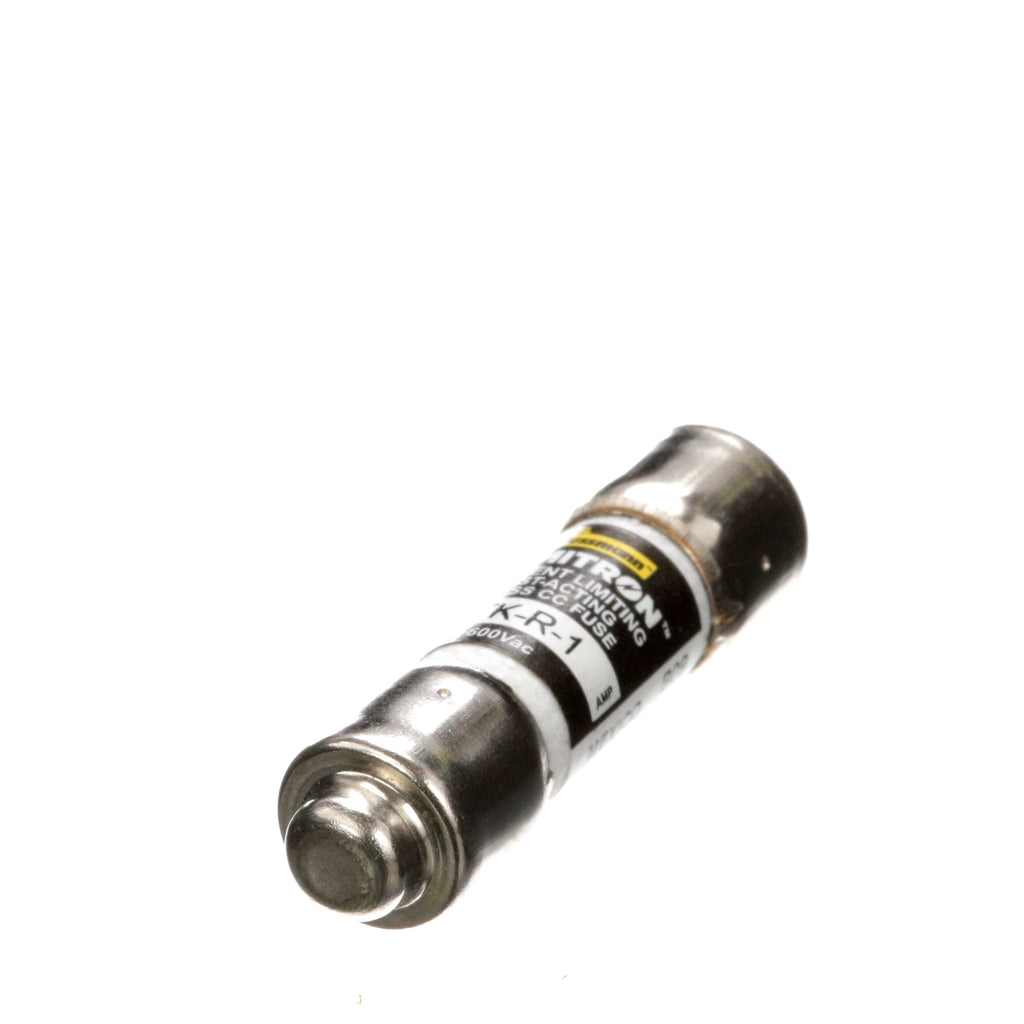

KTK-R-1 - Eaton Bussmann 1A 600V Class CC Fast Acting Fuse, Limitron Series

KTK-R-1

KTK-R-1 is a 1 ampere, 600 volt AC Class CC fast acting fuse from Eaton Bussmann's Limitron KTK-R series.This fuse features a fast-acting characteristic designed for advanced circuit protection in control transformers and other applications requiring Class CC fuses. It has a high interrupting rating of 200,000 amps RMS symmetrical at 600 VAC, ferrule end x ferrule end mounting, and a melamine tube body. The KTK-R-1 fuse is UL listed, CSA certified, CE marked, and RoHS compliant.

• Amperage: 1 Amp
• Voltage Rating: 600 VAC
• Fuse Type: Fast Acting
• Interrupting Rating: 200 kA RMS Symmetrical
• Series: KTK-R (Limitron)
• Fuse Class: CC
• Mounting Type: Ferrule End x Ferrule End
• Body Material: Melamine Tube
• Certifications: UL Listed, CSA Certified, CE, RoHS Compliant
• Non-Indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-R-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTK-R
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712420587
• GTIN : 00051712420587
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 1
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
