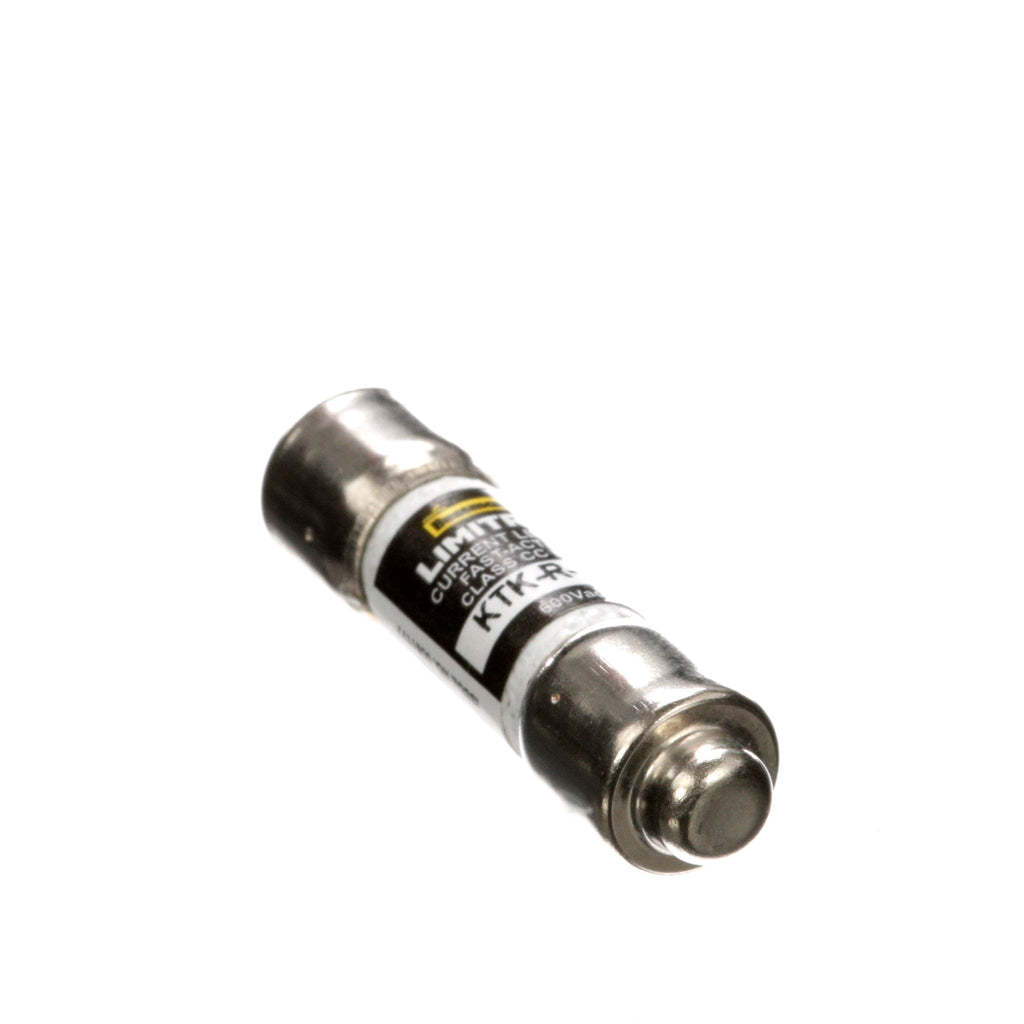

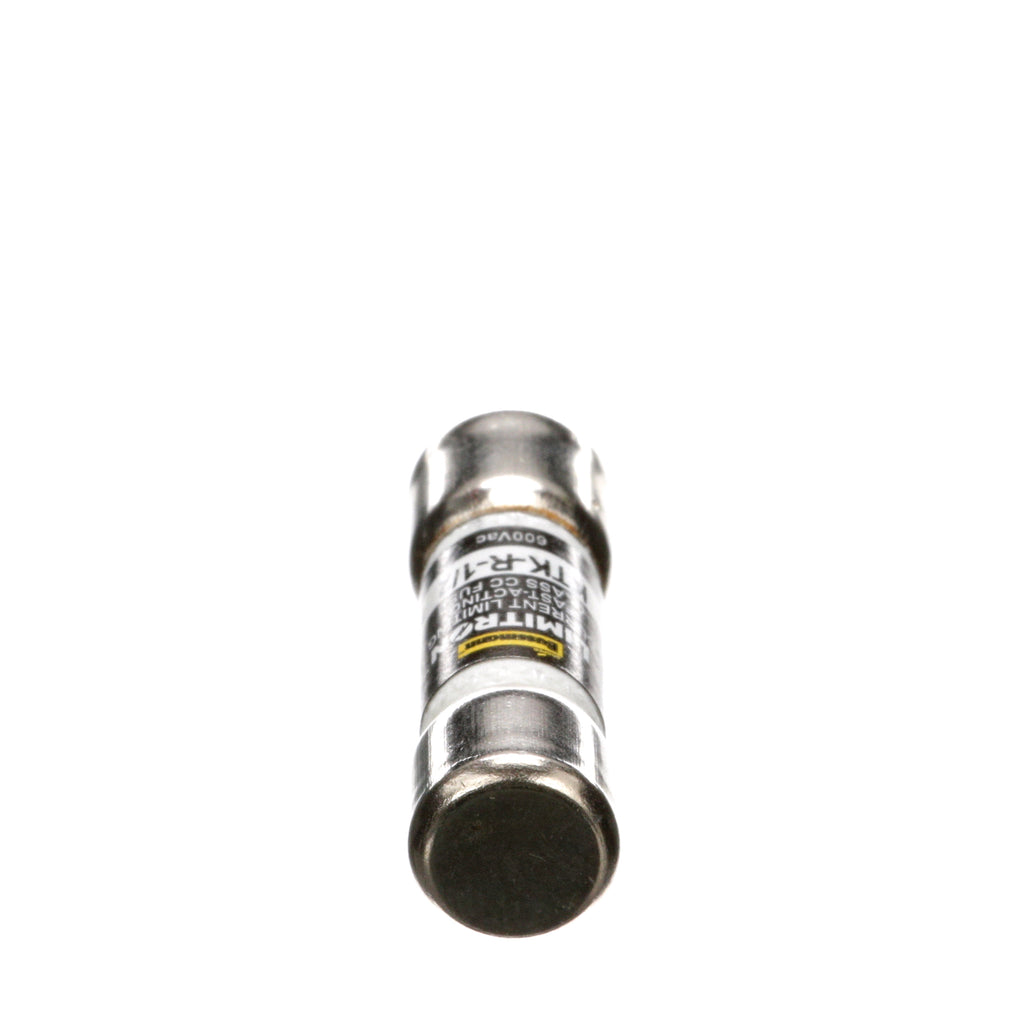

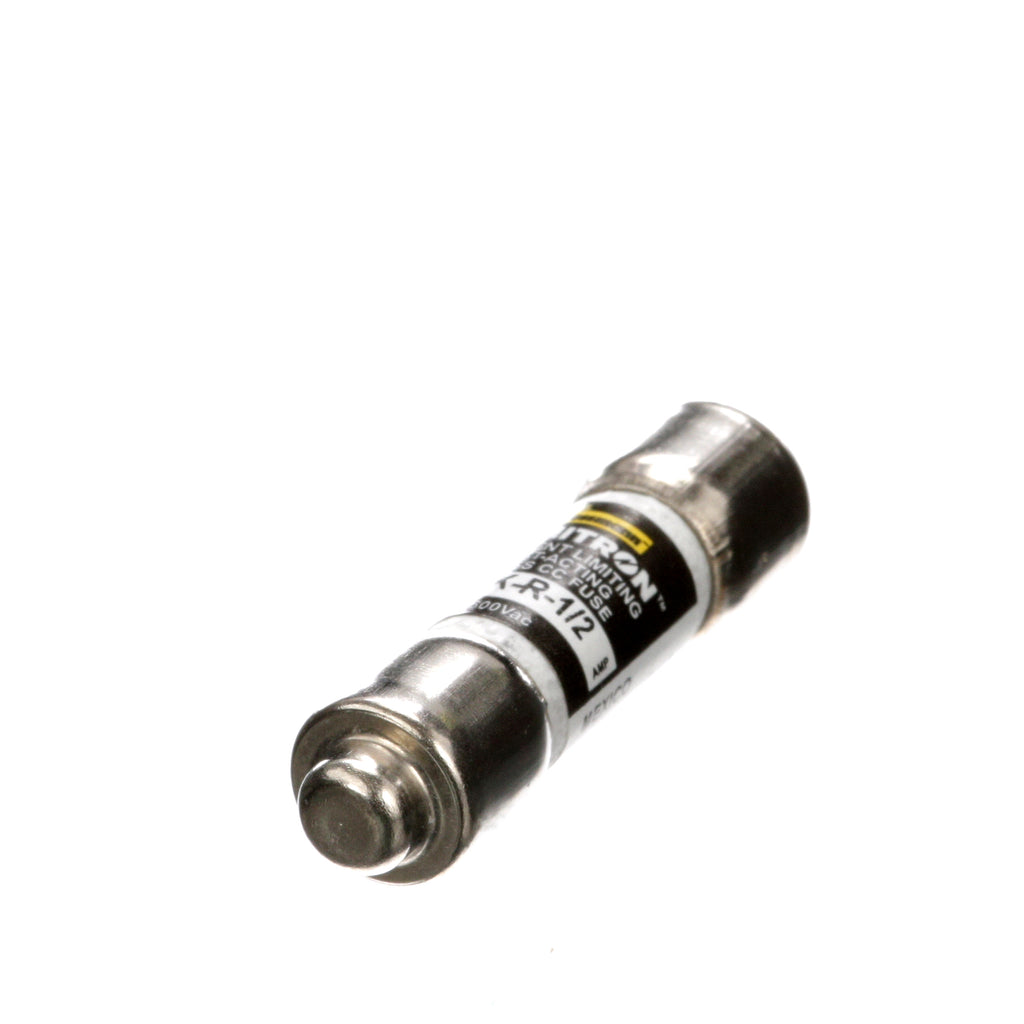

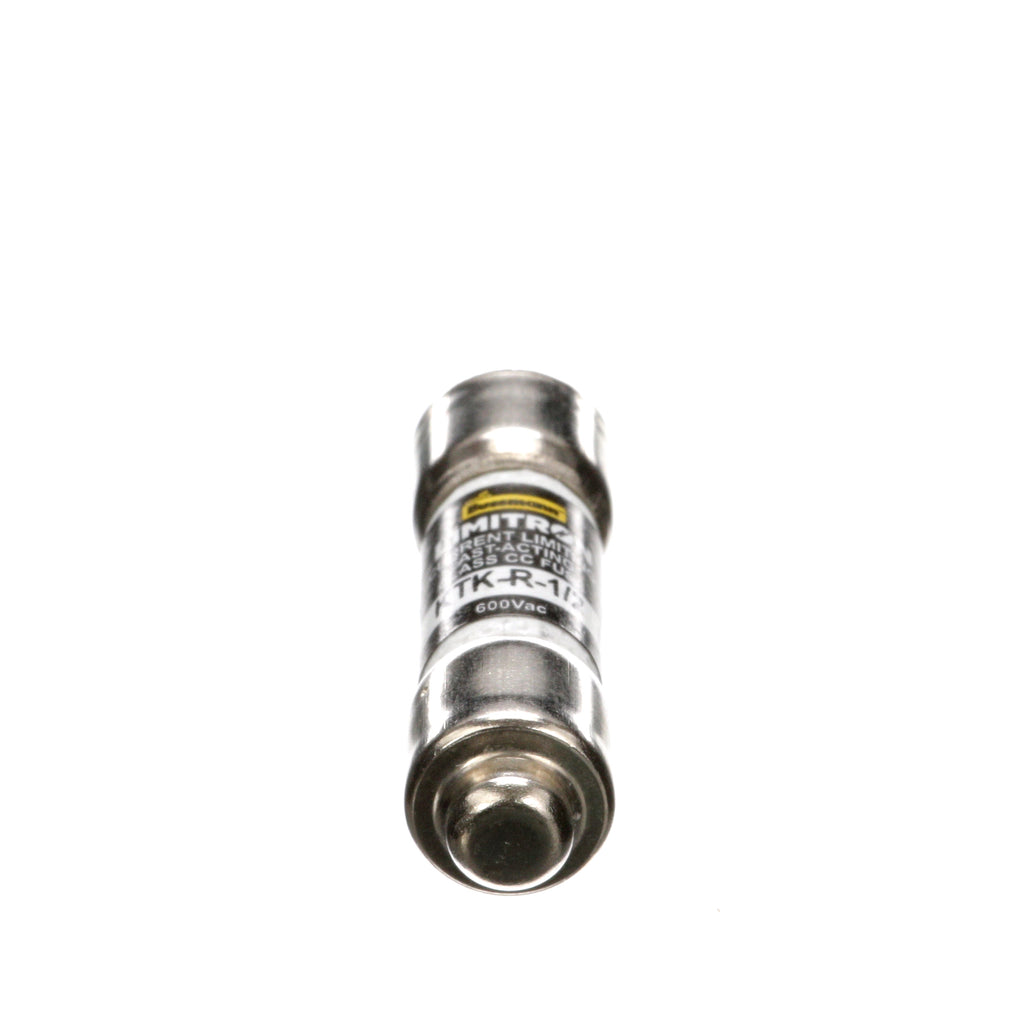

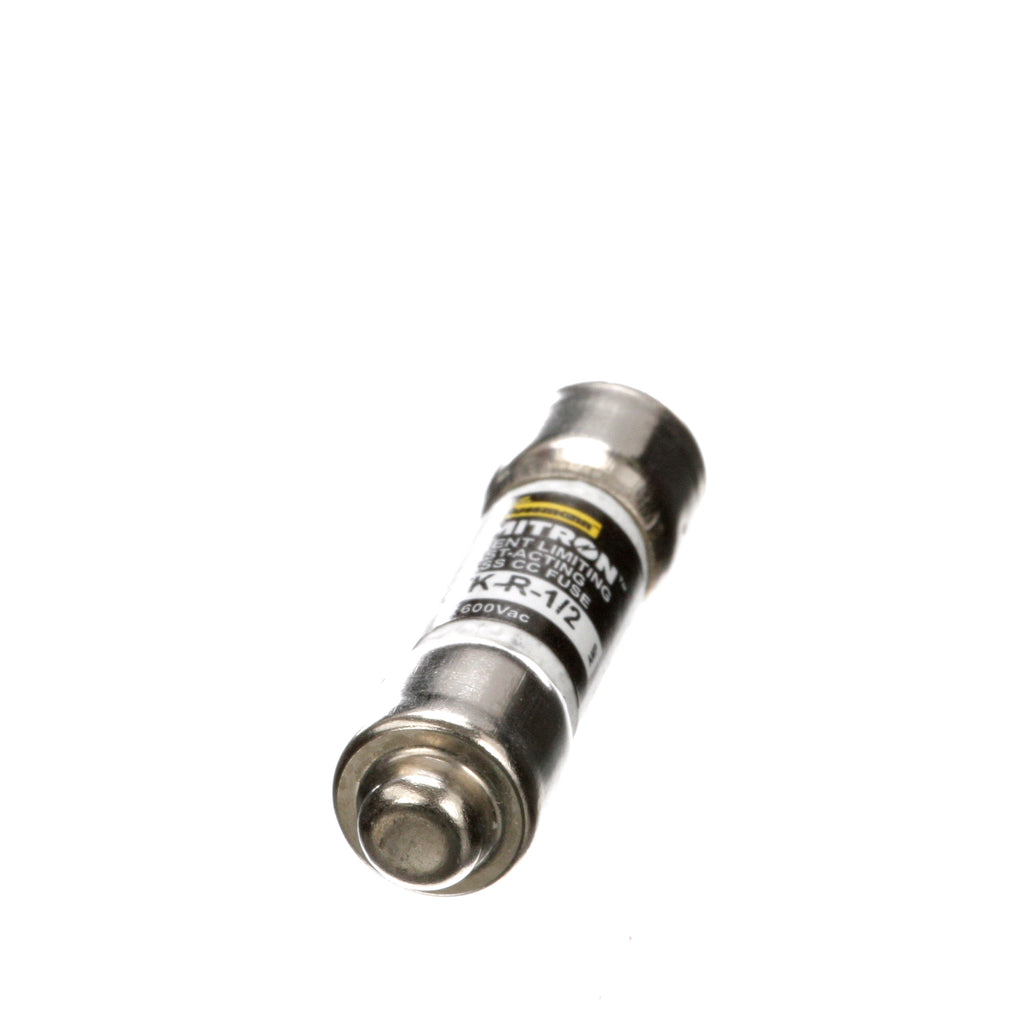

KTK-R-1/2 - Eaton Bussmann Class CC 0.5A 600V Fast-Acting Current Limiting Fuse

KTK-R-1/2

KTK-R-1/2 is an Eaton Bussmann Class CC fast-acting current limiting fuse rated at 0.5 amperes and 600 volts AC. It features a rejection style design for secure mounting and enhanced safety.This fuse is dual-element and non-indicating, designed for industrial control panels, machinery, lighting, and capacitor protection. It has a high interrupting rating of 200kA at 600Vac, ensuring reliable circuit protection. The fuse is UL Listed, CSA Certified, CE marked, and RoHS compliant.

• Amperage: 0.5 A
• Voltage Rating: 600 V AC
• Class: CC
• Interrupting Rating: 200 kA
• Fuse Type: Fast-acting, current limiting
• Mounting: Rejection style
• Elements: Dual
• Connection: Ferrule end x ferrule end
• Material: Melamine tube
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Non-indicating fuse
• Length: 1.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-R-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KTK-R
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712420563
• GTIN : 00051712420563
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
