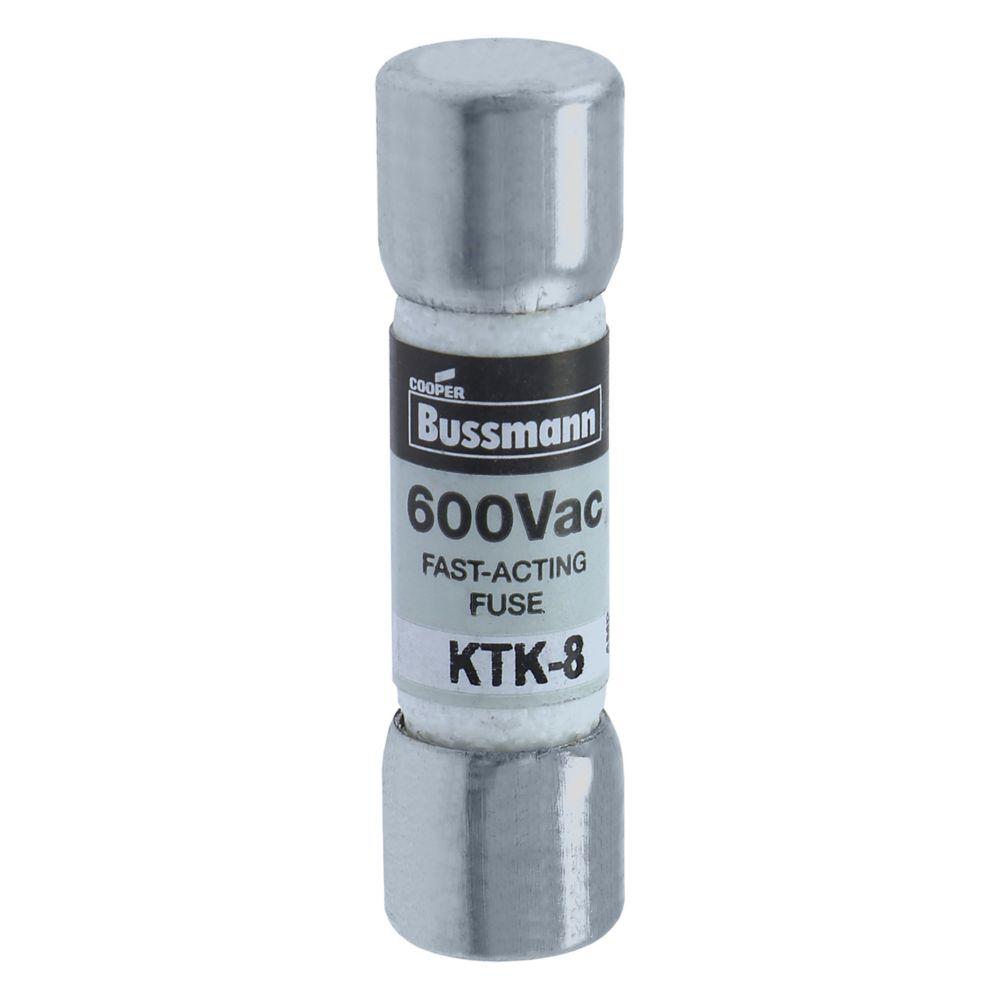

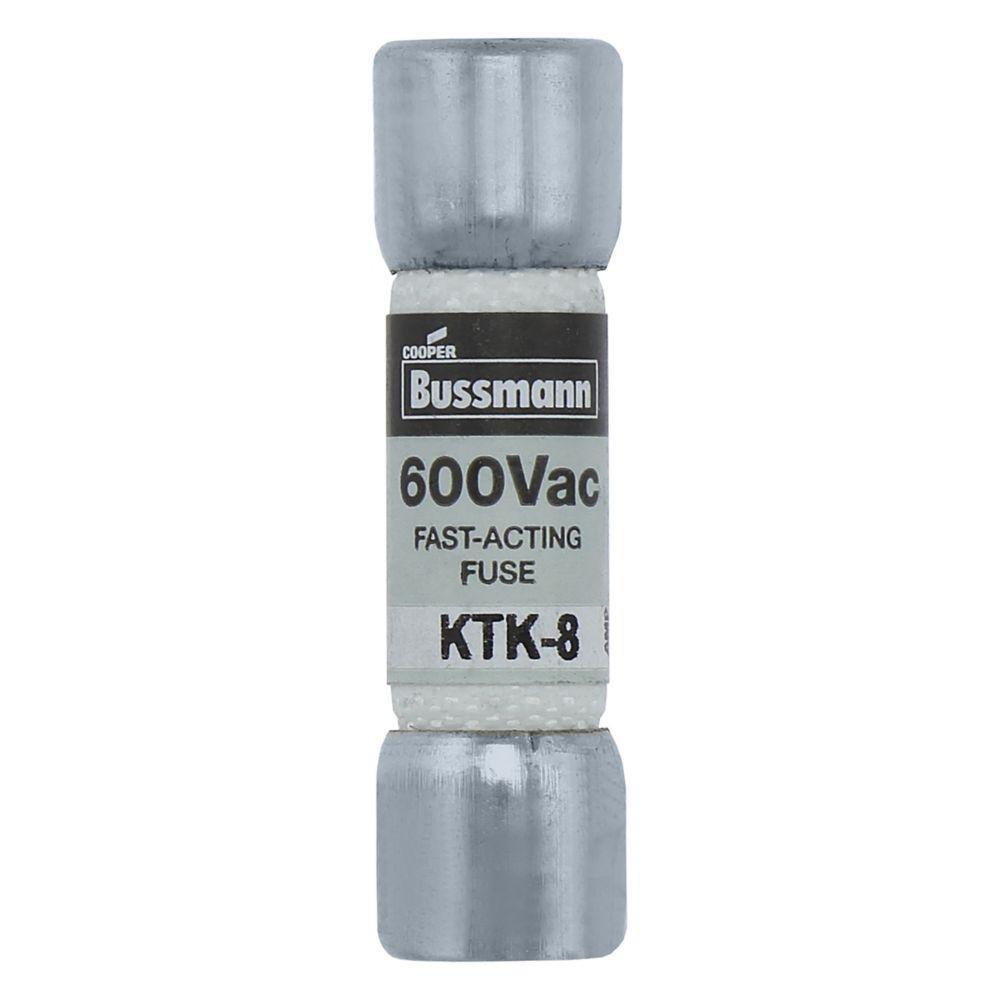

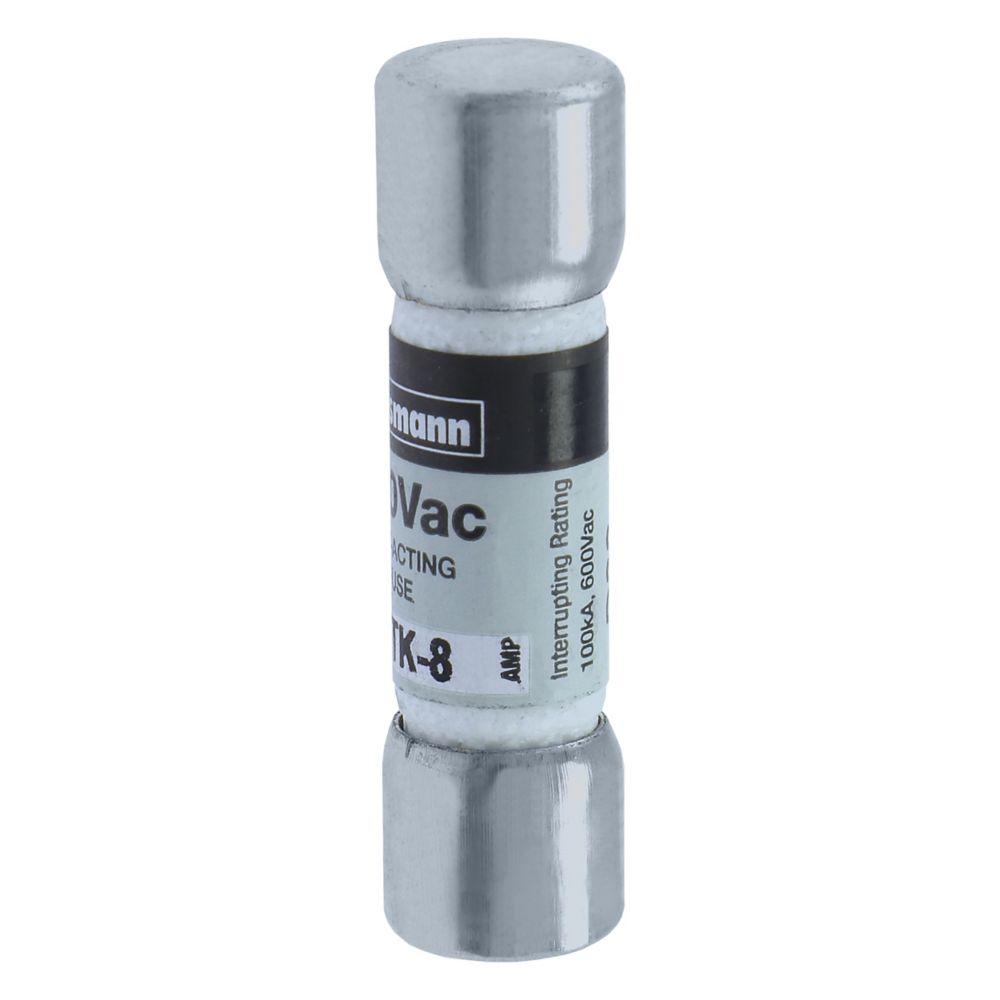

KTK-8 - Bussmann 8A 600VAC Fast Acting Supplemental Fuse Class CC 100kA Interrupt Rating

KTK-8

KTK-8 is an 8 ampere, 600 VAC fast acting supplemental fuse from Bussmann, designed for control and lighting circuit protection.This Bussmann KTK series fuse features a cartridge body type with ferrule end terminals and a melamine glass tube construction. It is a non-indicating, non-rejection type fuse with a 100 kiloamp interrupting rating at 600 volts AC, suitable for low voltage applications requiring fast-acting protection. The fuse is UL listed and CSA certified, Class CC rated, and mounts in a fuse holder.

Key Specifications
• Amperage: 8 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 100 kAIC
• Fuse Class: CC Supplemental
• Body Type: Cartridge
• Mounting Type: Holder Mount
• Terminal Type: Ferrule End
• Material: Melamine Glass Tube
• Color Code: Black
• Indicating: Non-Indicating
• Rejection Type: Non-Rejection
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KTK Series
• Type : KTK
• Voltage : 600
• Amperage : 8
• AIC rating : 100kA@600V
• Barrels : 1

Product Data

• UPC : 051712420174
• GTIN : 00051712420174
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE, CSA, UL Listed
