2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

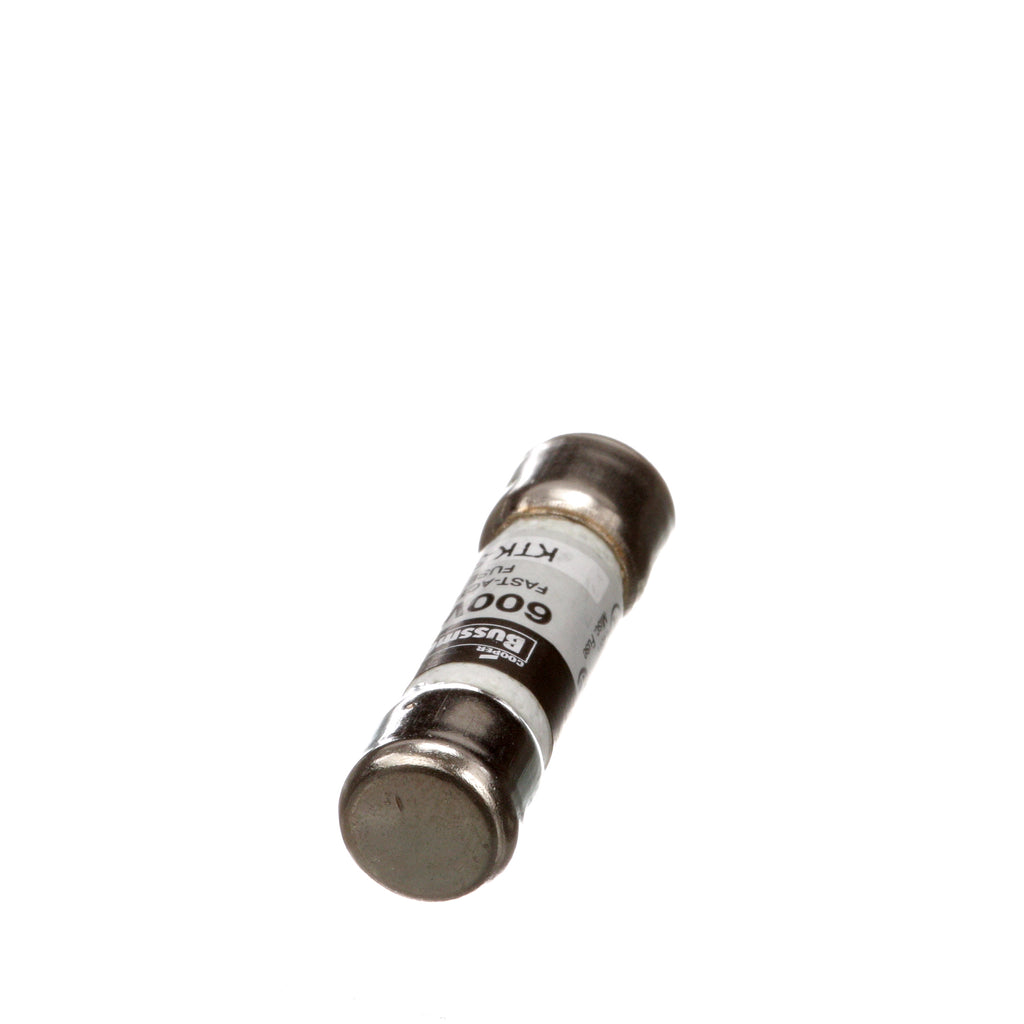

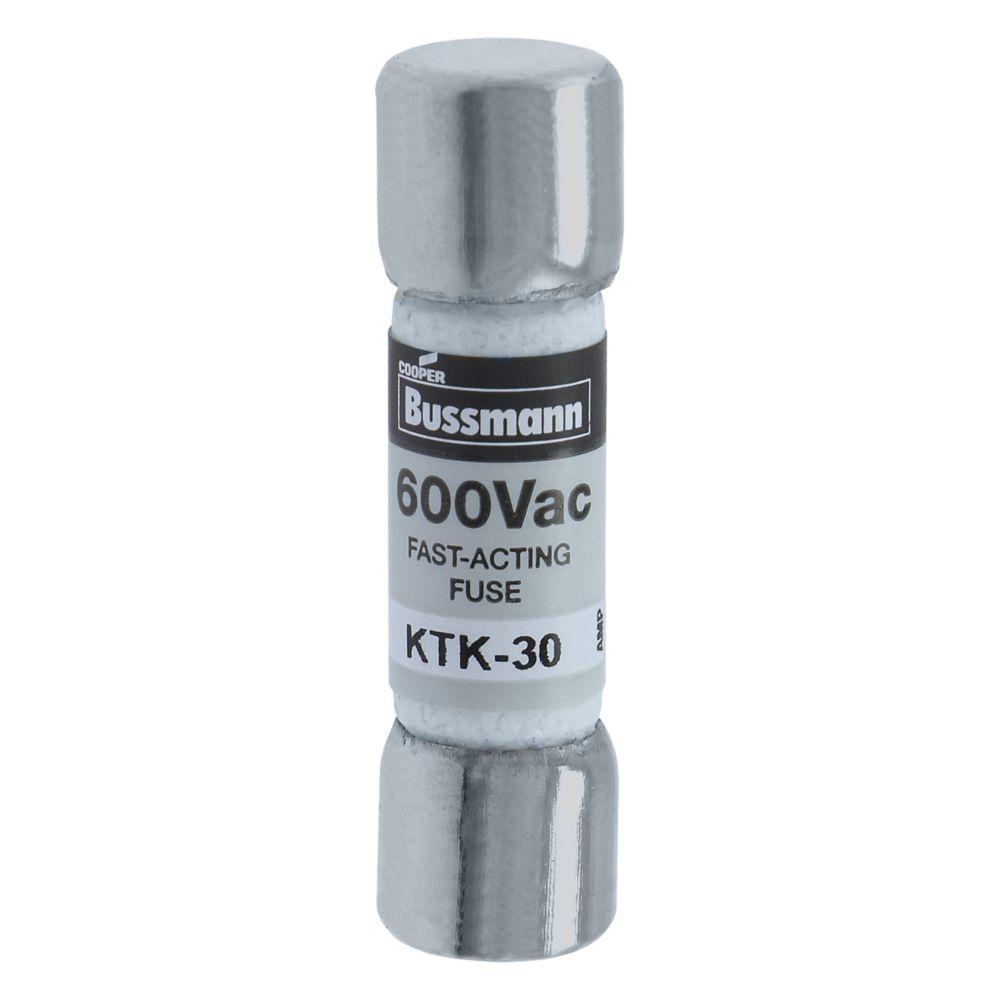

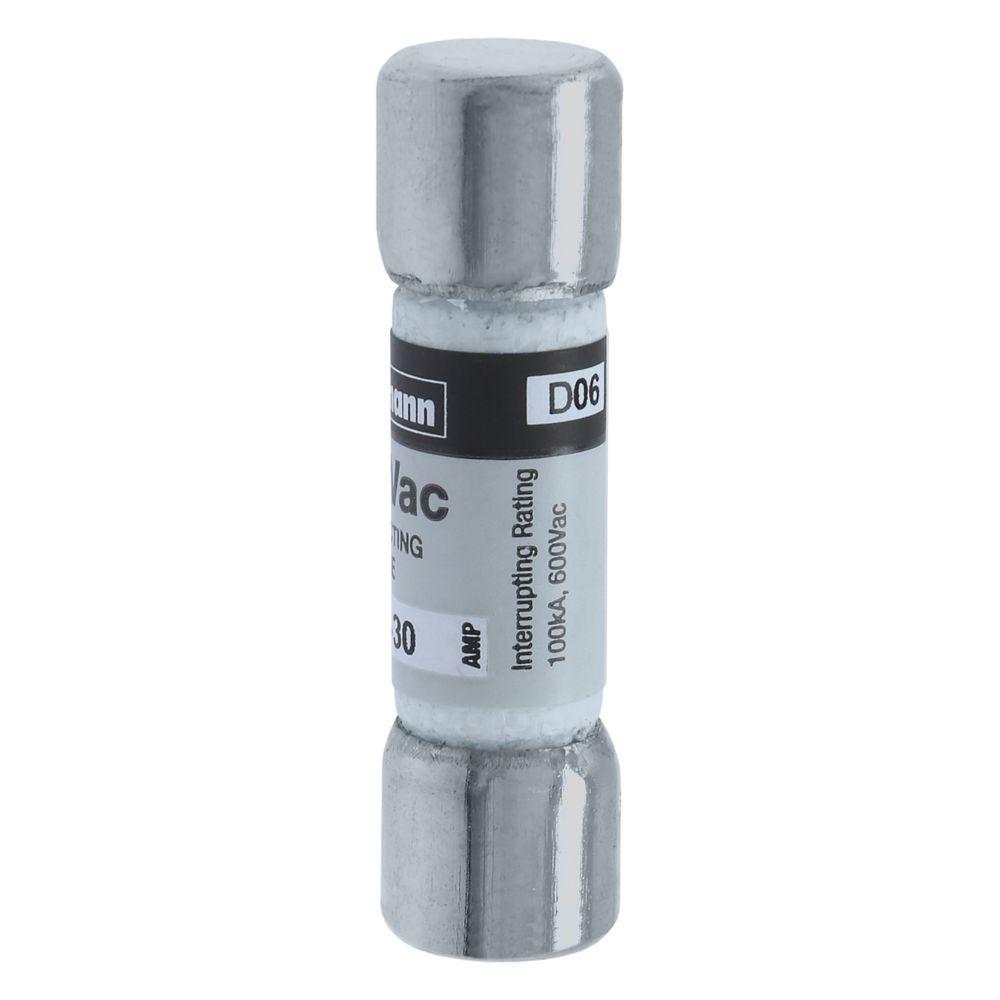

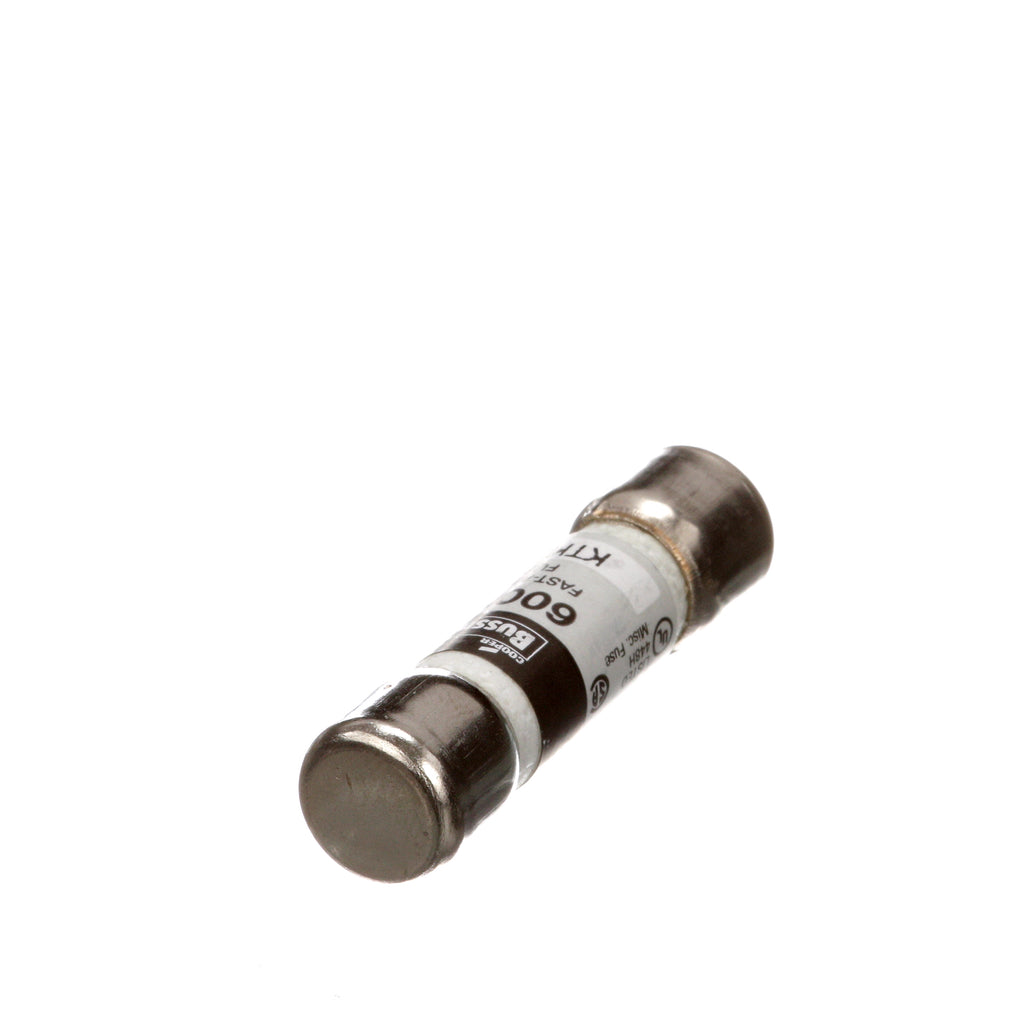

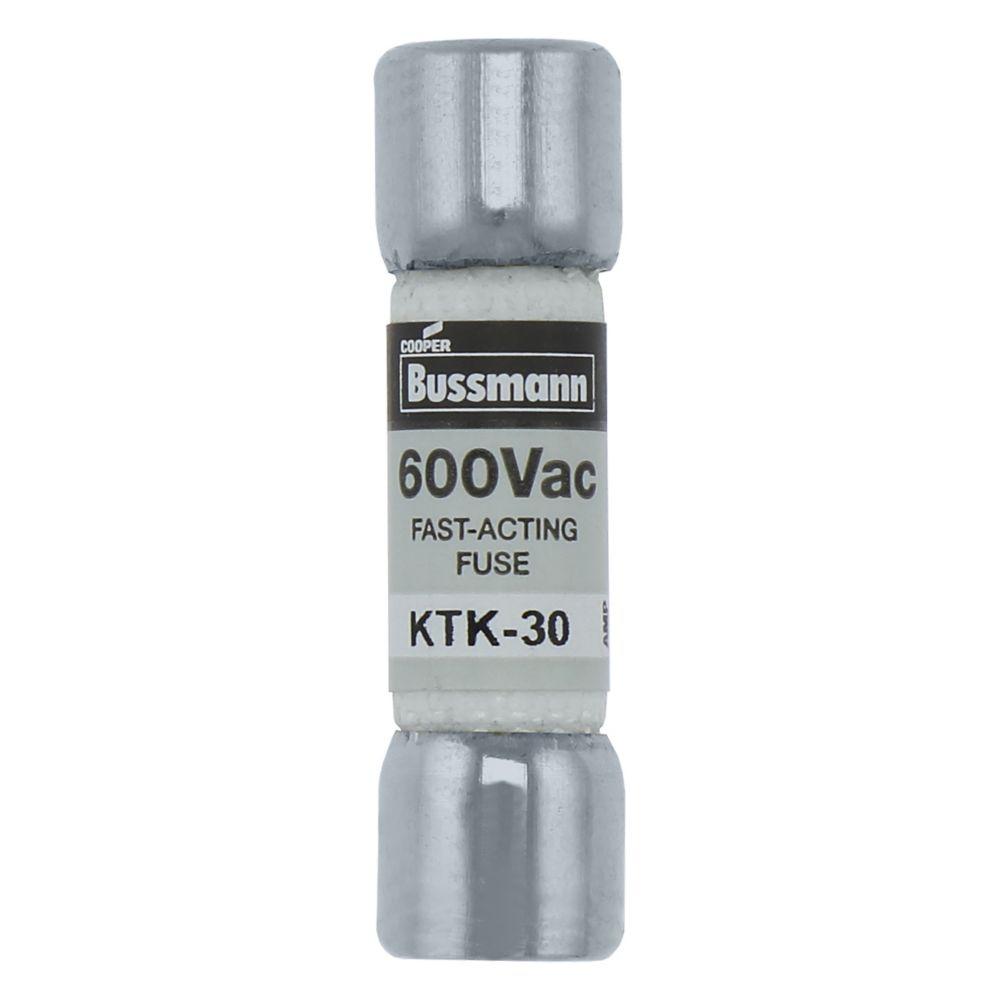

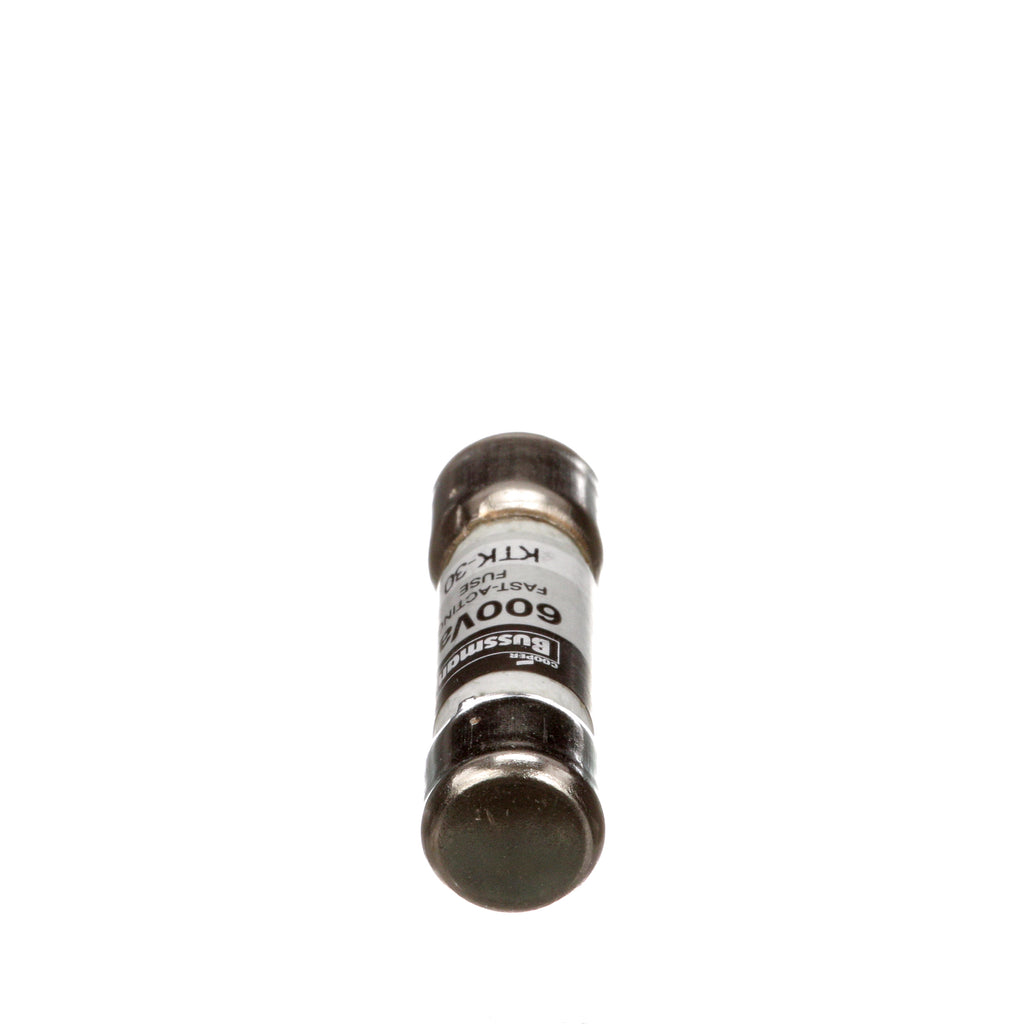

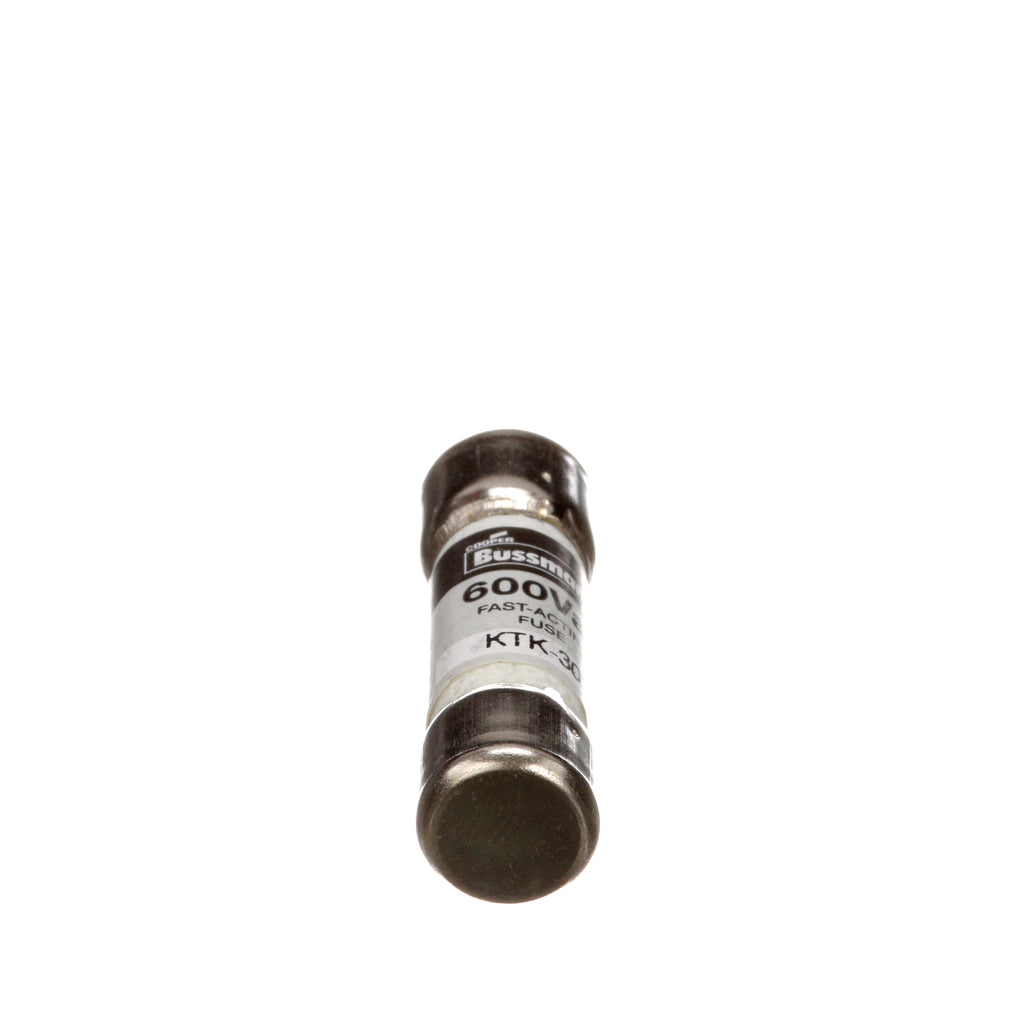

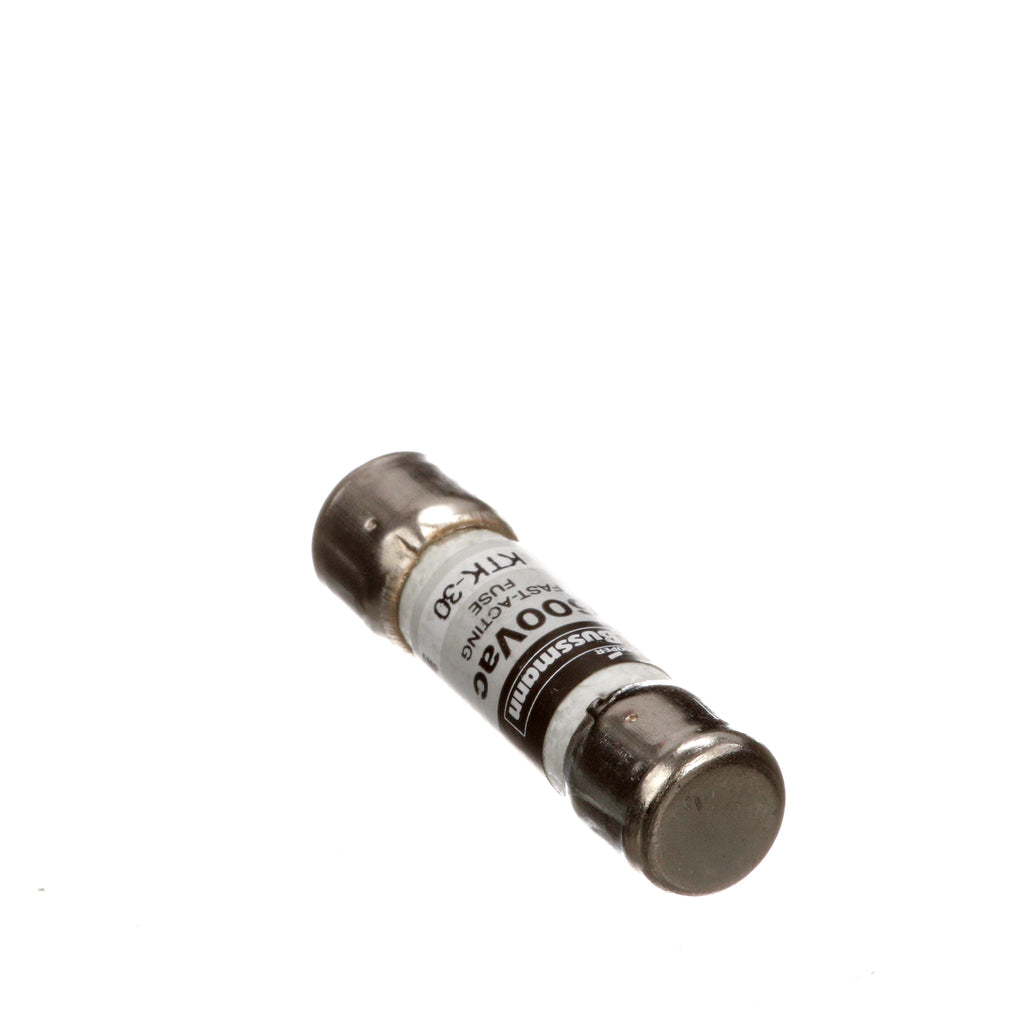

KTK-30
KTK-30 is a fast-acting supplemental fuse from Eaton Bussmann designed for control and lighting circuit protection.
This 30 amp, 600 volt fuse features a melamine tube with nickel-plated bronze endcaps and ferrule end terminals. It has a high interrupting rating of 100 kAIC at 600 VAC and is non-indicating with a small footprint, ideal for compact applications. The fuse complies with RoHS and CE standards and is UL and CSA certified for safety and reliability.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 100 kAIC at 600 VAC
- Fuse Type: Fast-Acting Limitron
- Material: Melamine tube, nickel-plated bronze endcaps
- Connection: Ferrule end x ferrule end
- Physical Size: 0.41 in diameter x 1.5 in length
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
- Series: Bussmann KTK
- Mounting Type: Cartridge fuse
- Part Number: KTK-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KTK Series
- Type : KTK
- Voltage : 600
- Amperage : 30
- AIC rating : 100kA@600V
- Barrels : 1
- UPC : 051712420303
- GTIN : 00051712420303
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.18
- Certification : CE, CSA, UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
