Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTK-15

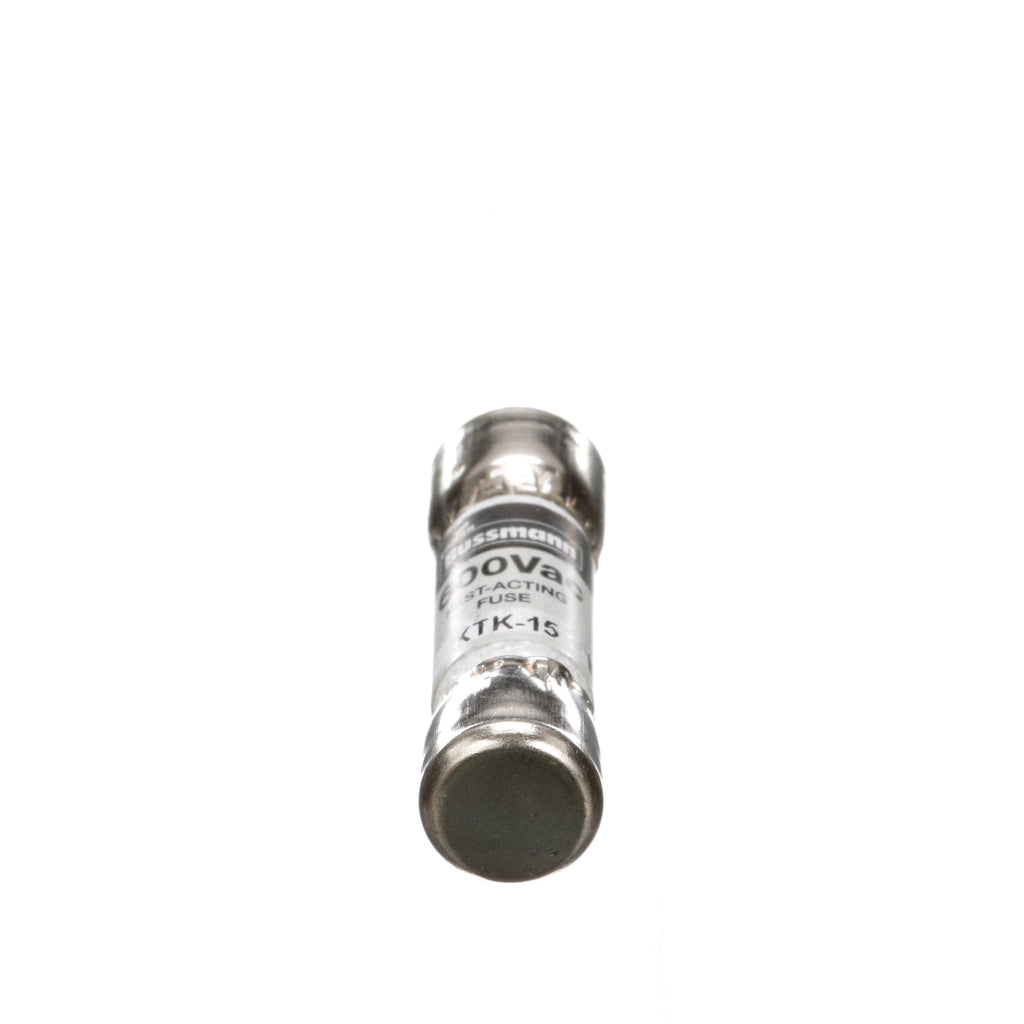

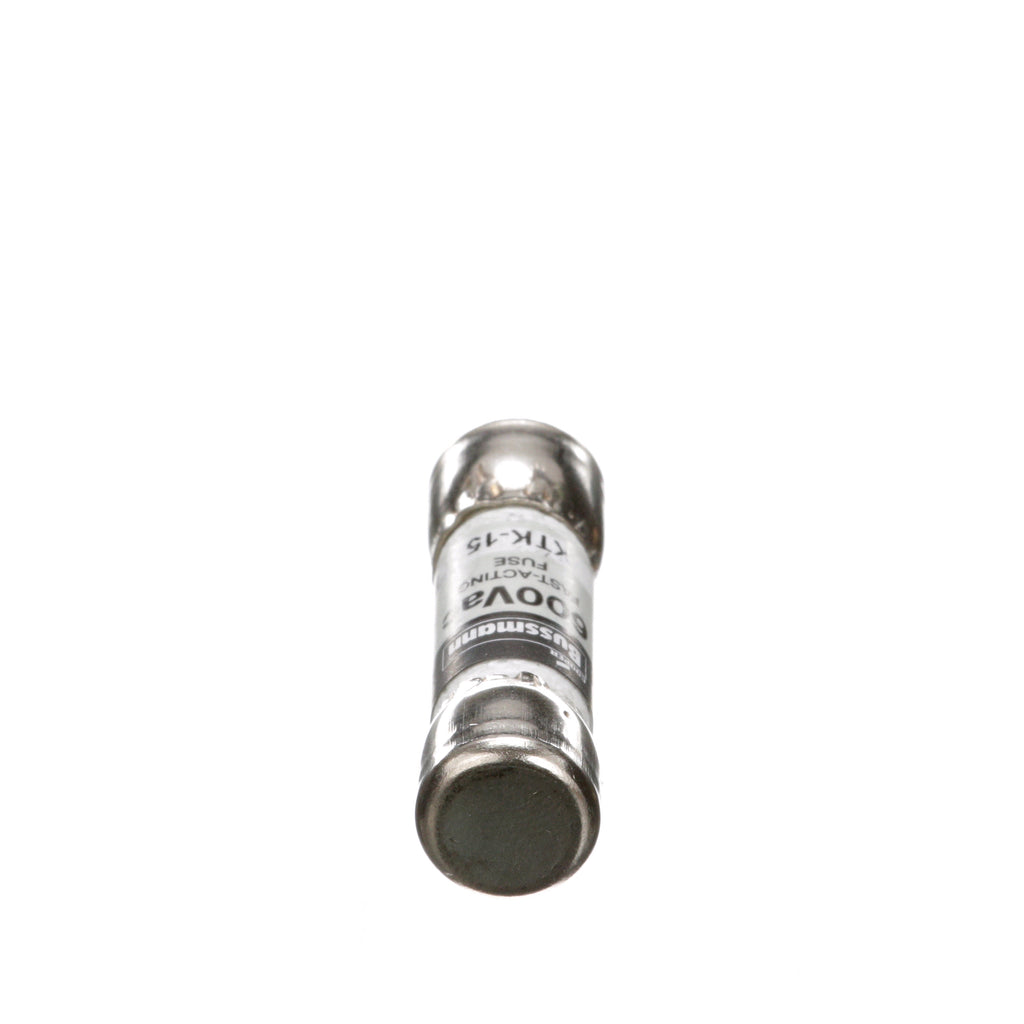

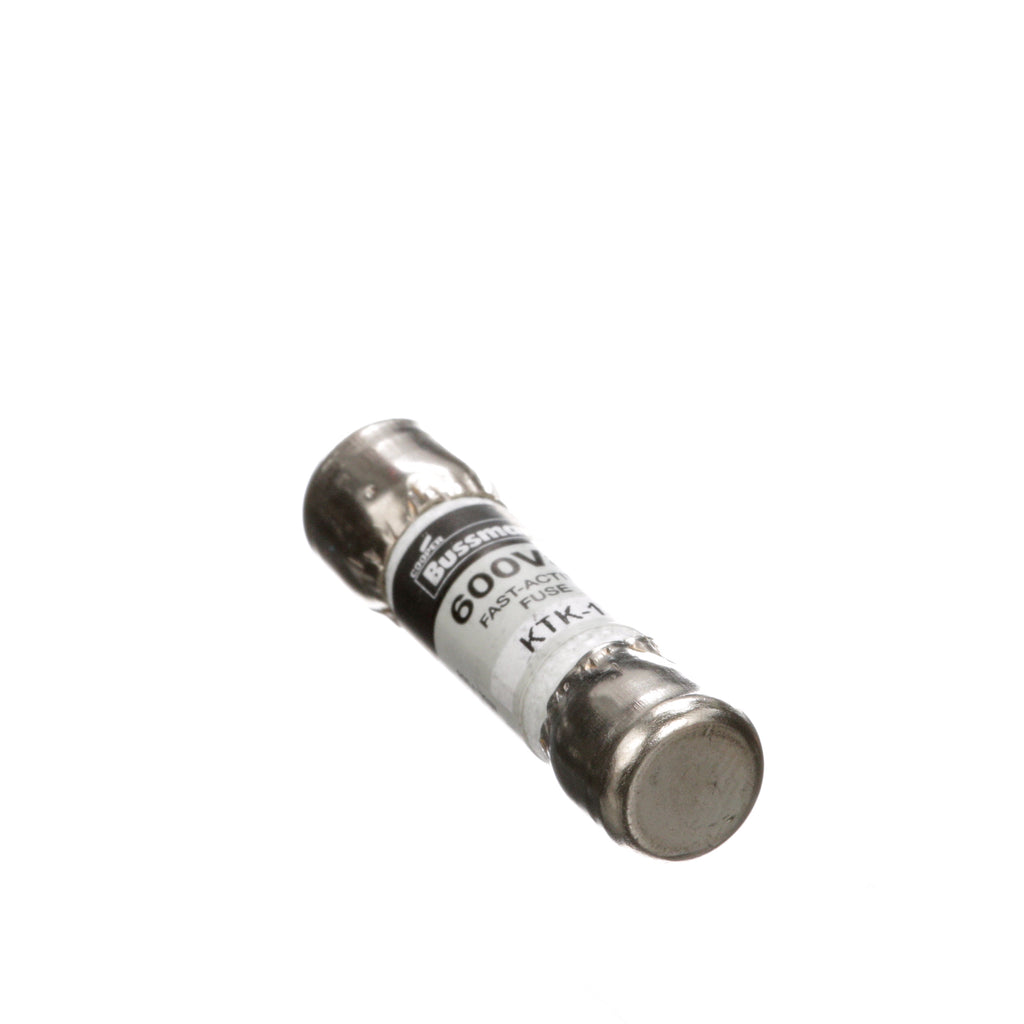

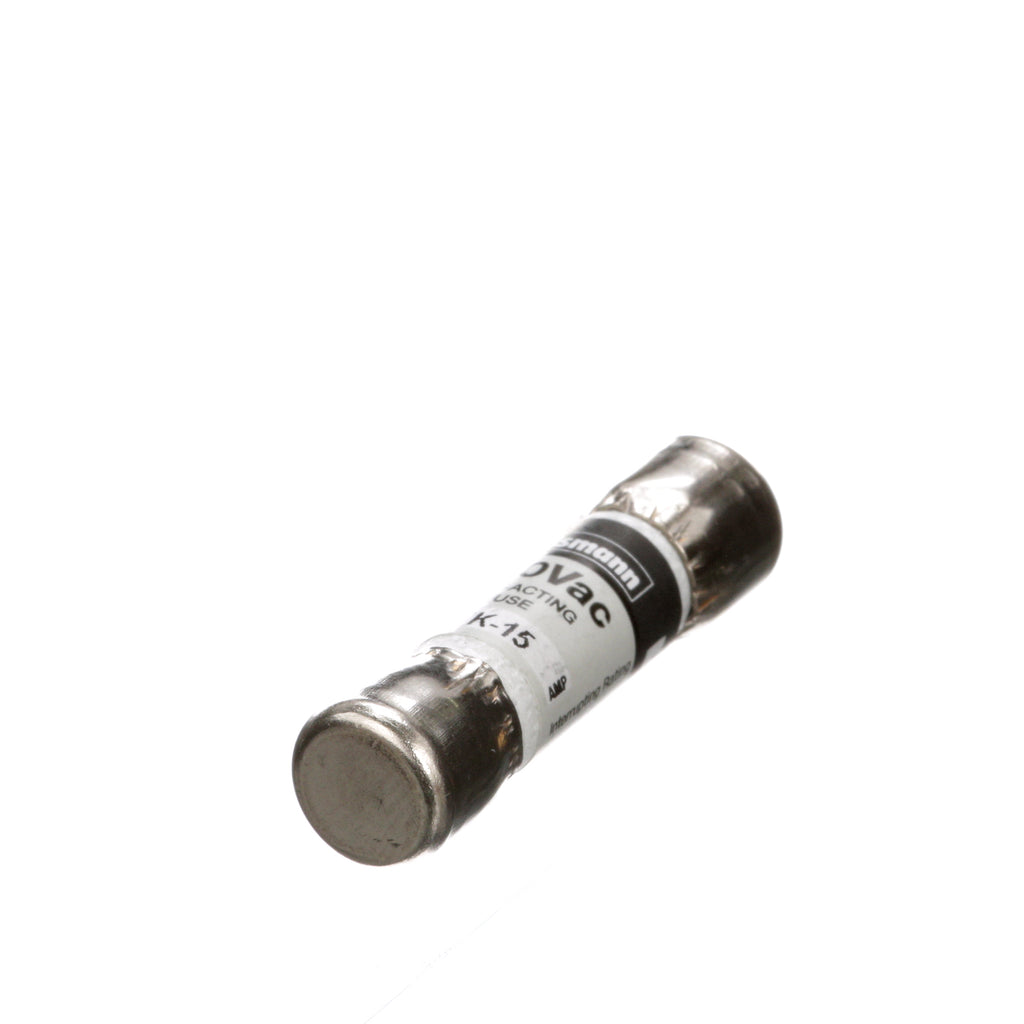

KTK-15 is a fast-acting supplemental fuse from Eaton Bussmann designed for control and lighting circuit protection.
This 15 ampere, 600 volt fuse features a melamine tube construction with nickel-plated bronze end caps and ferrule end connections. It has a high interrupting rating of 100 kA at 600 VAC, suitable for protecting control circuit transformers and lighting circuits. The fuse is non-indicating and complies with CE and RoHS standards, UL Listed and CSA Certified under standard 248-14. It is part of the Limitron series known for fast response to overcurrents.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 100 kA at 600 VAC
- Fuse Type: Fast Acting (Limitron)
- Poles: 1
- Mounting Type: Ferrule end x ferrule end
- Material: Melamine tube with nickel-plated bronze end caps
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Physical Size: 0.41 in diameter x 1.5 in length
- Part Number: KTK-15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KTK Series
- Type : KTK
- Voltage : 600
- Amperage : 15
- AIC rating : 100kA@600V
- Barrels : 1
- UPC : 051712420198
- GTIN : 00051712420198
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.19
- Certification : CE, CSA, UL Listed
