Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

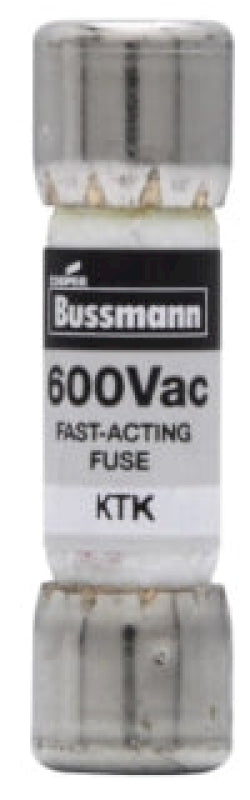

KTK-12
KTK-12 is a fast acting fuse from Eaton Bussmann designed for control circuits and lighting circuit protection.KTK-12 features a 12 ampere rating, 600 VAC voltage rating, and a 100,000 ampere interrupting rating. It has a single pole configuration with ferrule terminals and a melamine tube body with nickel-plated bronze end caps. This fuse meets UL 248-14, CSA C22.2, and CE certifications.
- Key Specifications
- Amperage: 12 A
- Voltage: 600 VAC
- Interrupting Rating: 100,000 A (symmetrical)
- Poles: 1
- Mounting Type: Ferrule terminal
- Body Material: Melamine tube
- End Caps: Nickel-plated bronze
- Fuse Type: Fast acting
- Series: KTK
- Certifications: UL 248-14, CSA C22.2, CE
- Dimensions: 13/32 inch diameter x 1-1/2 inch length
Specifications
- Part Number: KTK-12
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KTK Series
- Type : KTK
- Voltage : 600
- Amperage : 12
- AIC rating : 100kA@600V
- Barrels : 1
Product Data
- UPC : 051712420082
- GTIN : 00051712420082
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.19
- Certification : CE, CSA, UL Listed
