Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KTK-10

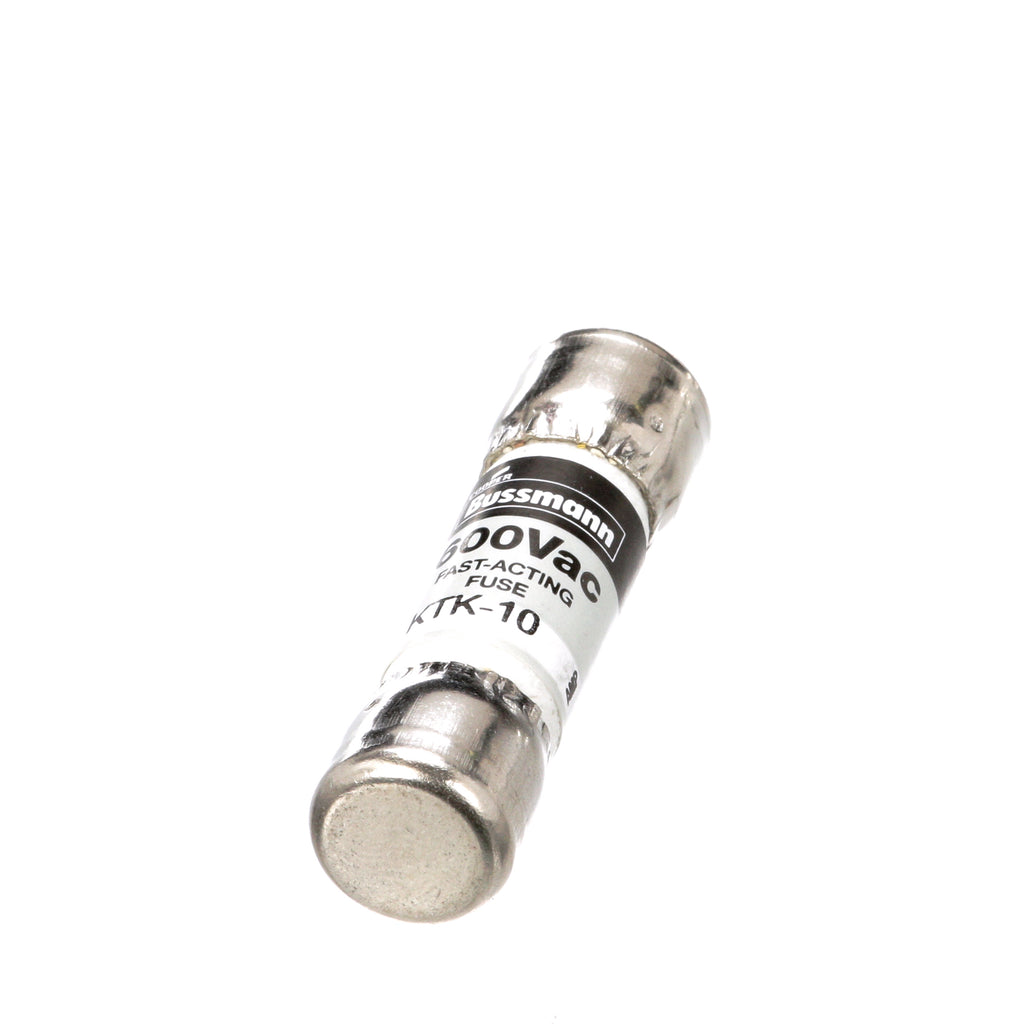

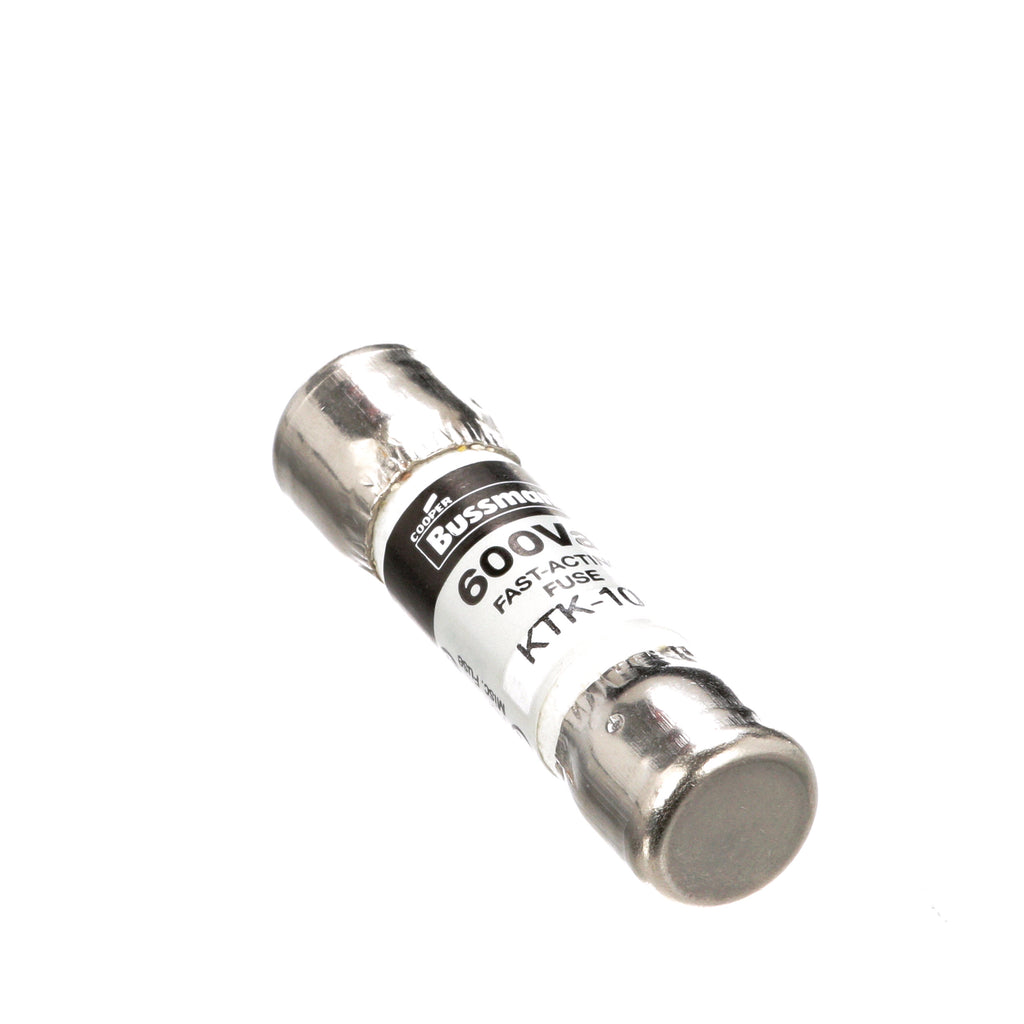

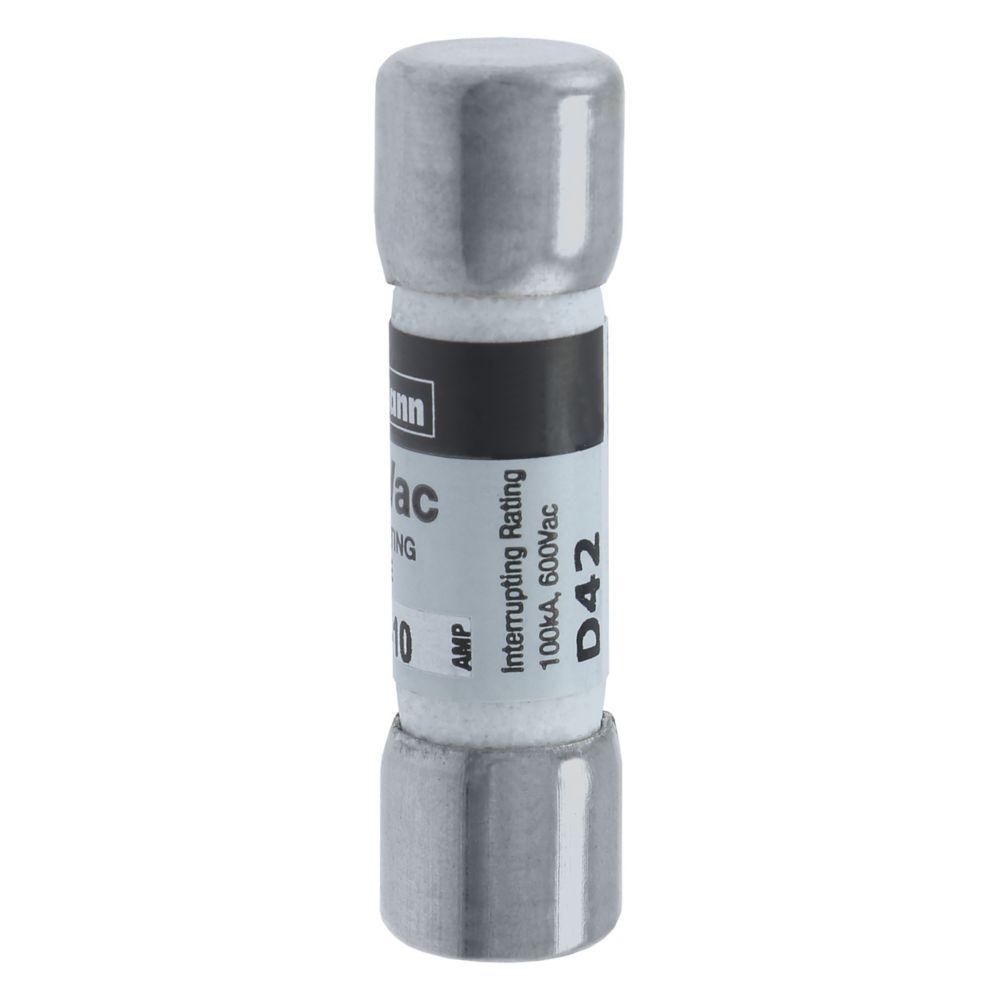

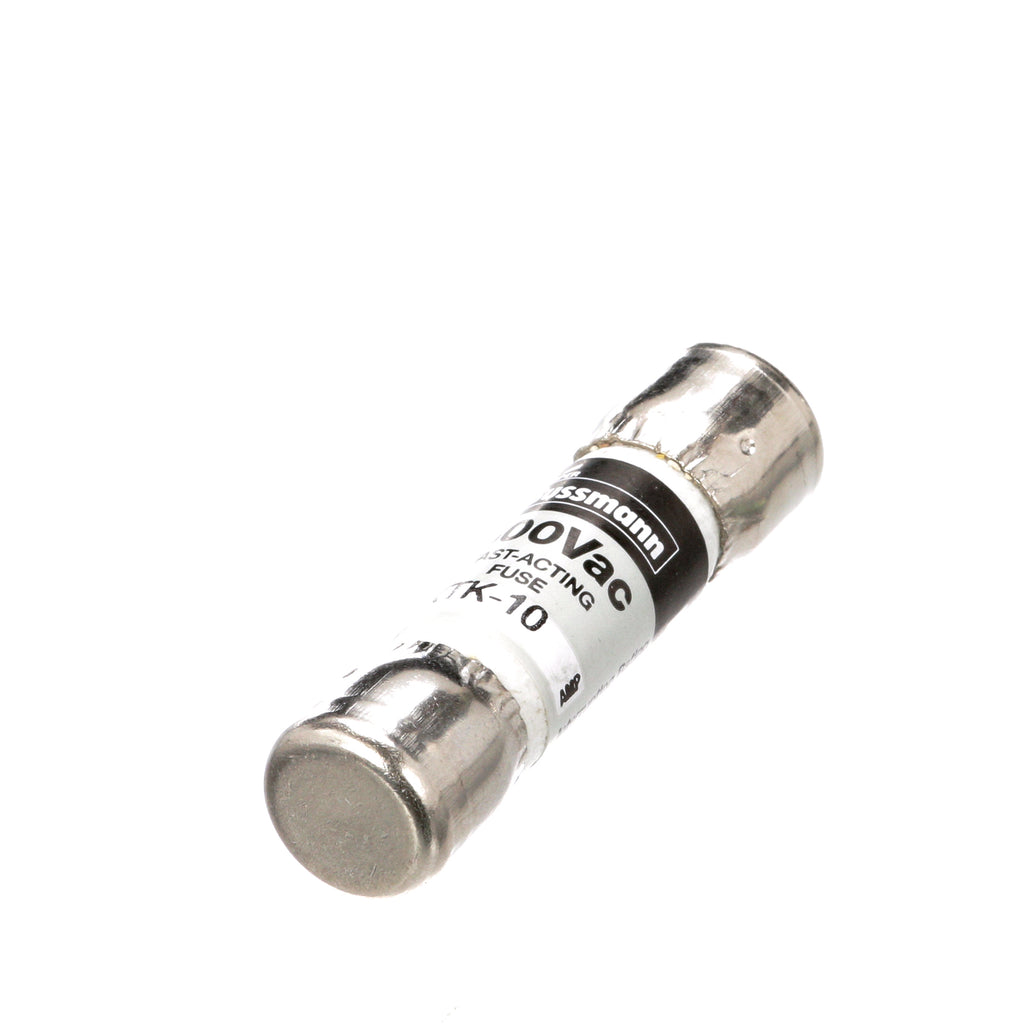

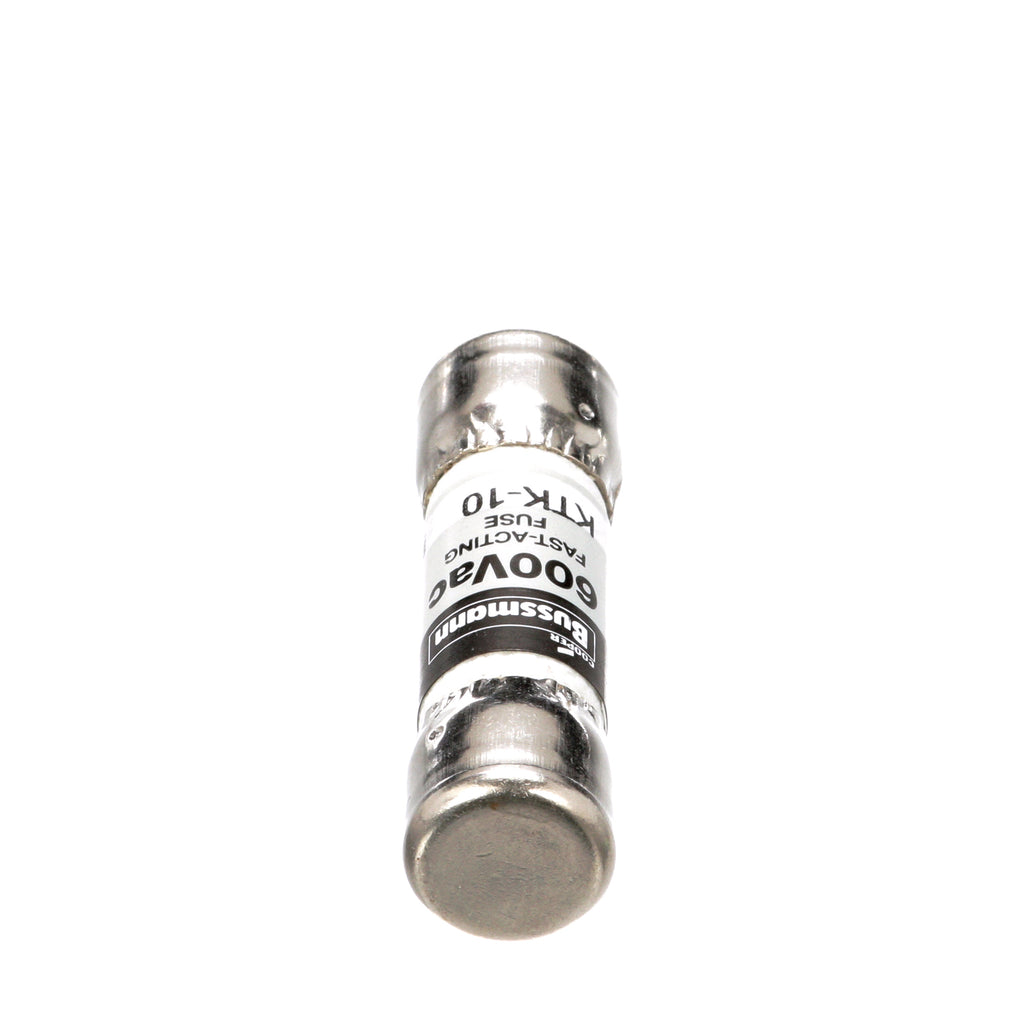

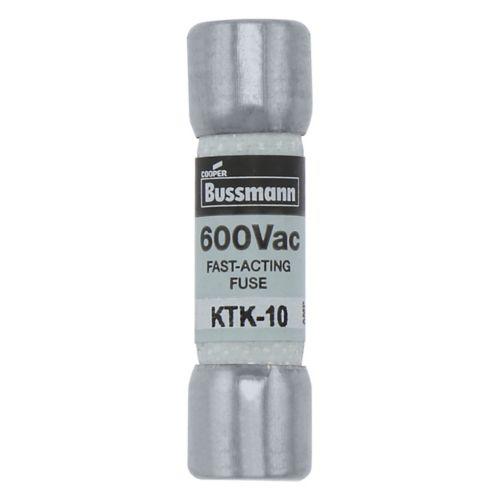

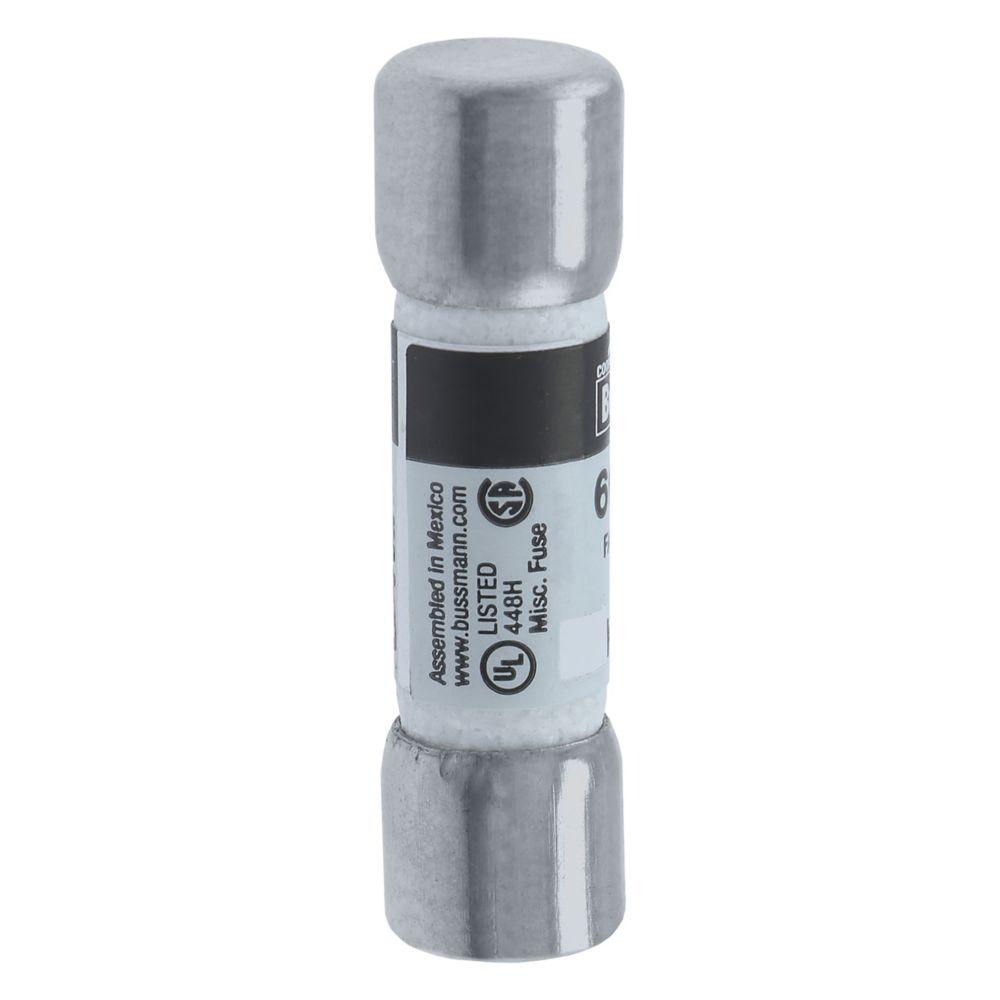

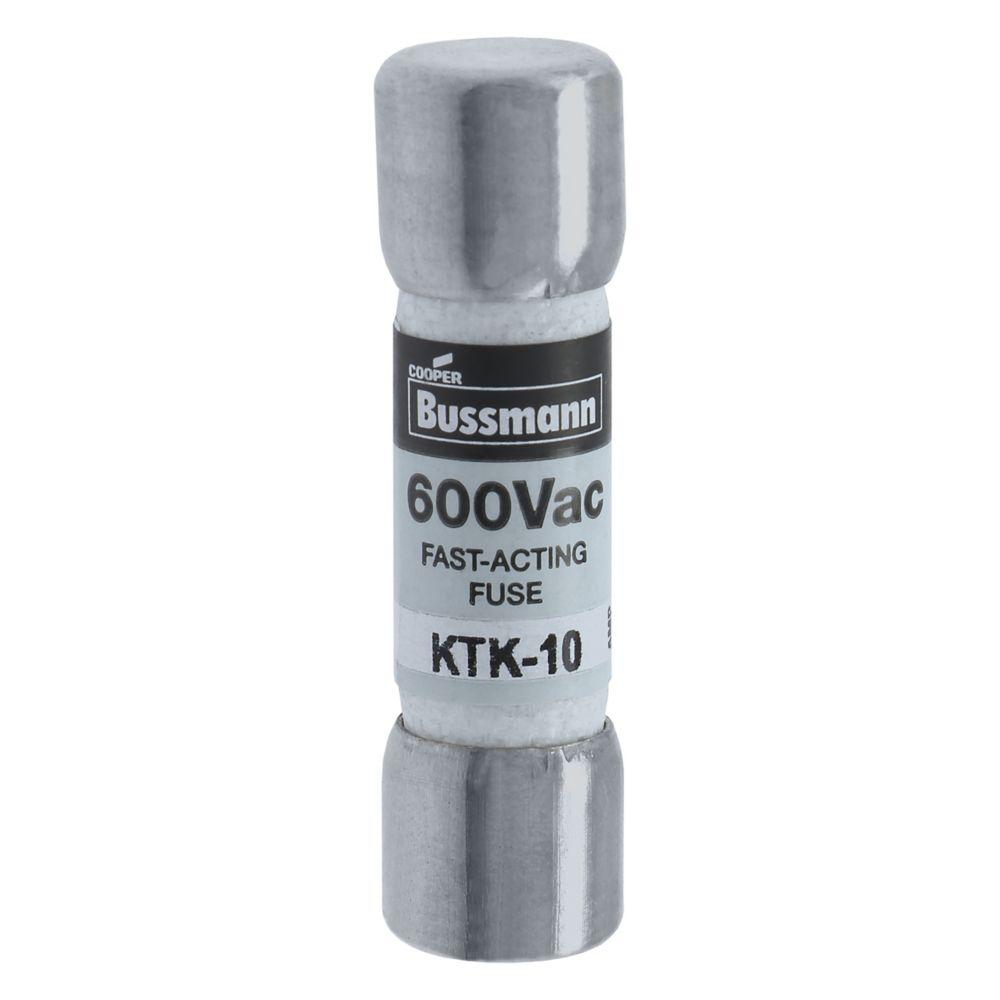

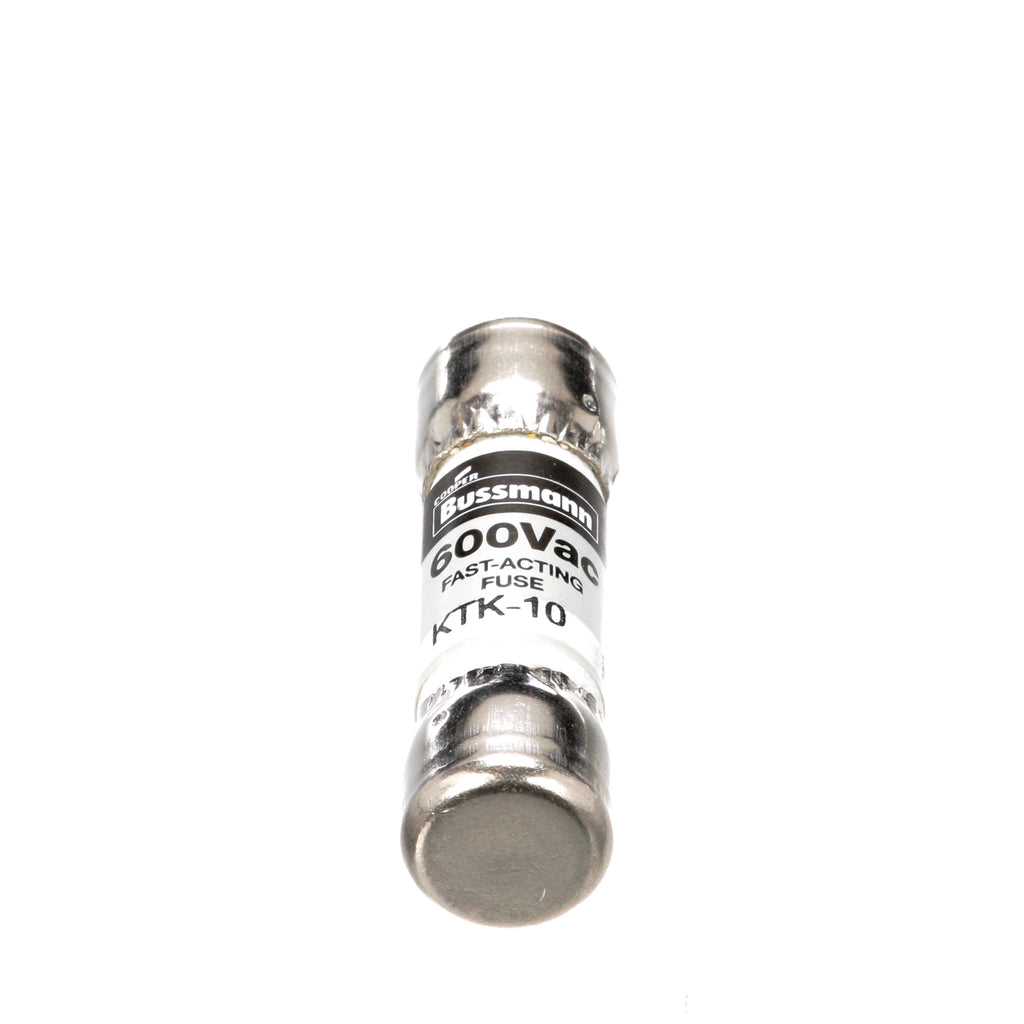

KTK-10 is a fast acting midget fuse from Eaton Bussmann designed for supplemental circuit protection.
This fuse features a 10 ampere rating and 600 volt AC maximum voltage, with a 100,000 amp interrupting rating at 600 VAC. It has a single pole configuration with ferrule terminal ends and a melamine tube body with nickel-plated bronze end caps. The fuse measures 13/32 inch diameter by 1-1/2 inch length and meets UL 248-14, CSA, and CE certifications for safety and performance.
- Key Specifications
- Amperage: 10 A
- Voltage: 600 VAC
- Interrupting Rating: 100,000 AIC at 600 V
- Poles: 1
- Mounting Type: Ferrule terminal
- Fuse Type: Fast Acting Midget
- Body Material: Melamine tube
- End Caps: Nickel-plated bronze
- Dimensions: 0.41 in diameter x 1.5 in length
- Certifications: UL 248-14, CSA, CE
- Part Number: KTK-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KTK Series
- Type : KTK
- Voltage : 600
- Amperage : 10
- AIC rating : 100kA@600V
- Barrels : 1
- UPC : 051712420181
- GTIN : 00051712420181
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.19
- Certification : CE, CSA, UL Listed
