KTK-1 - Eaton Bussmann 1A 600V Fast Acting Midget Fuse 100kA Interrupt Rating

KTK-1

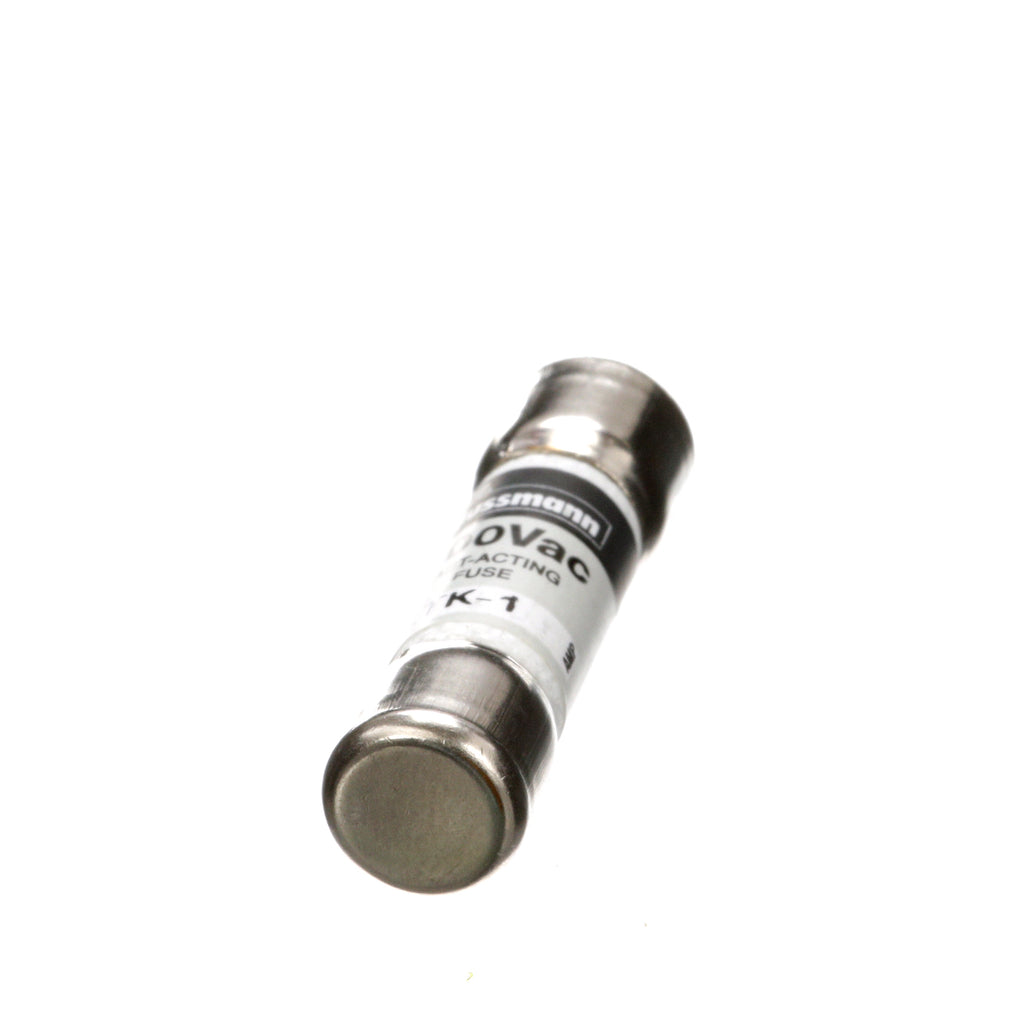

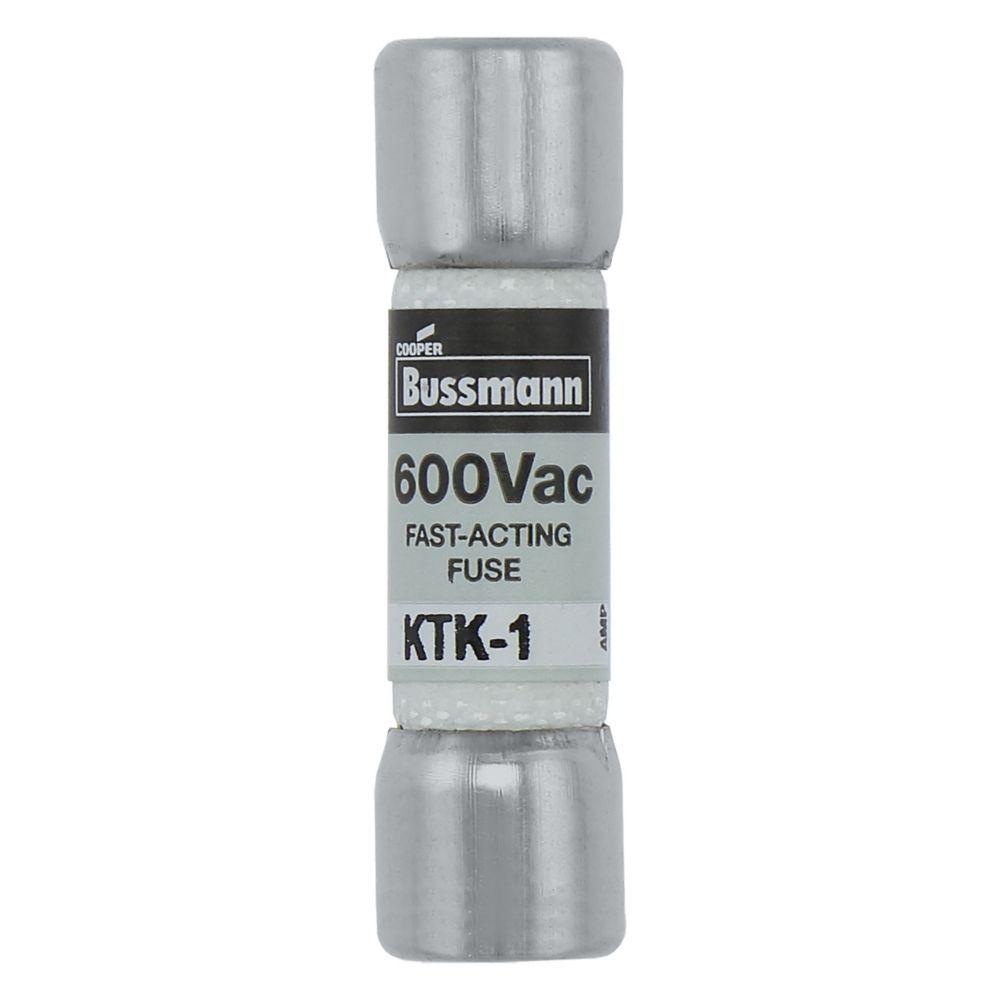

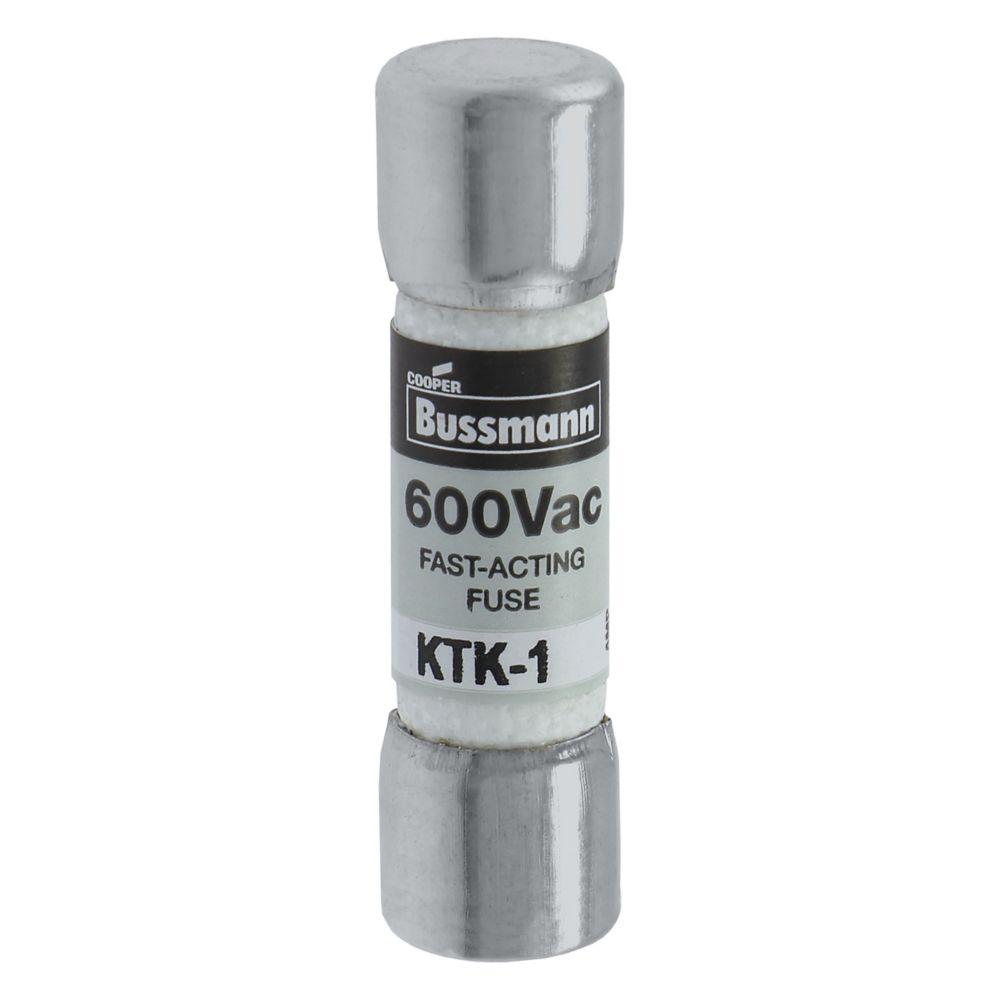

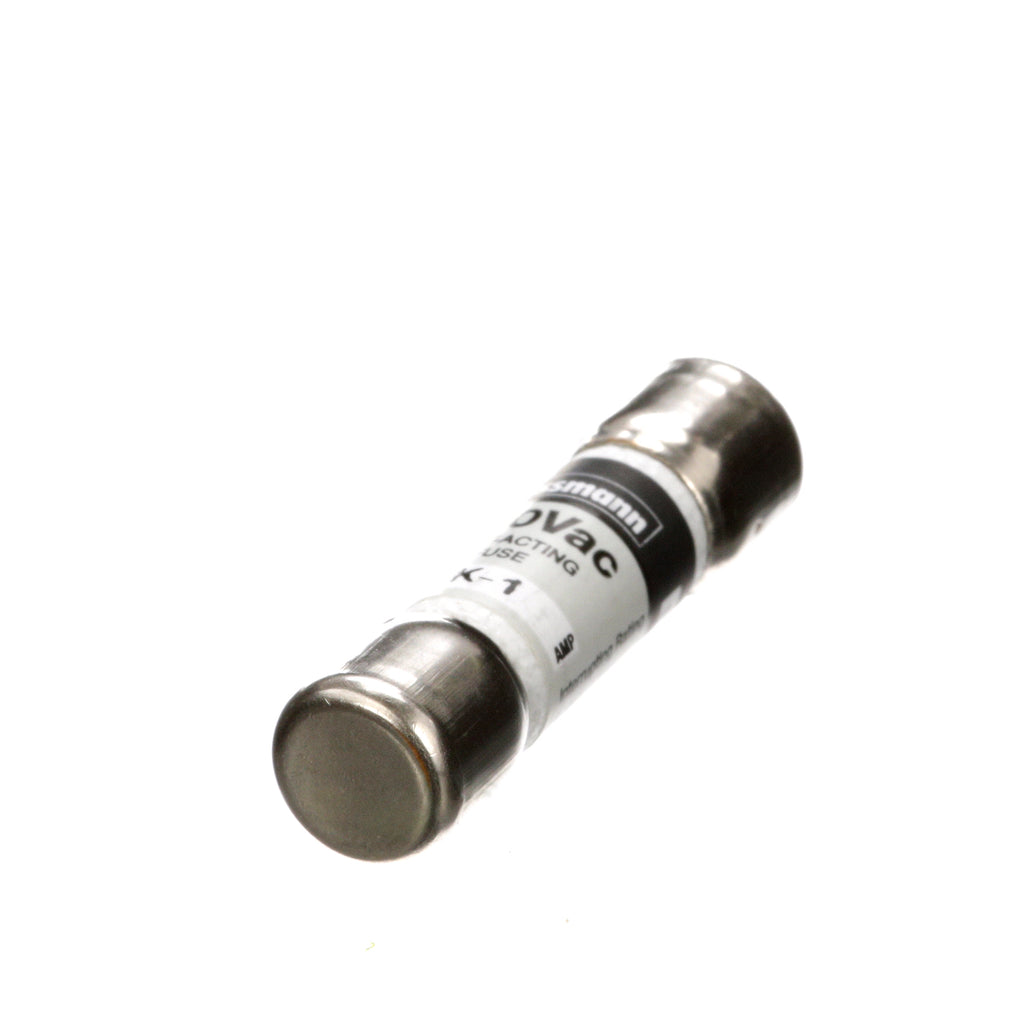

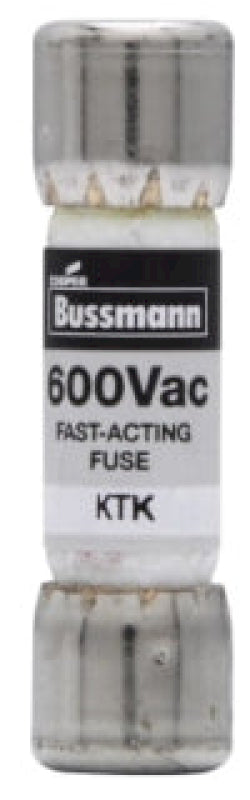

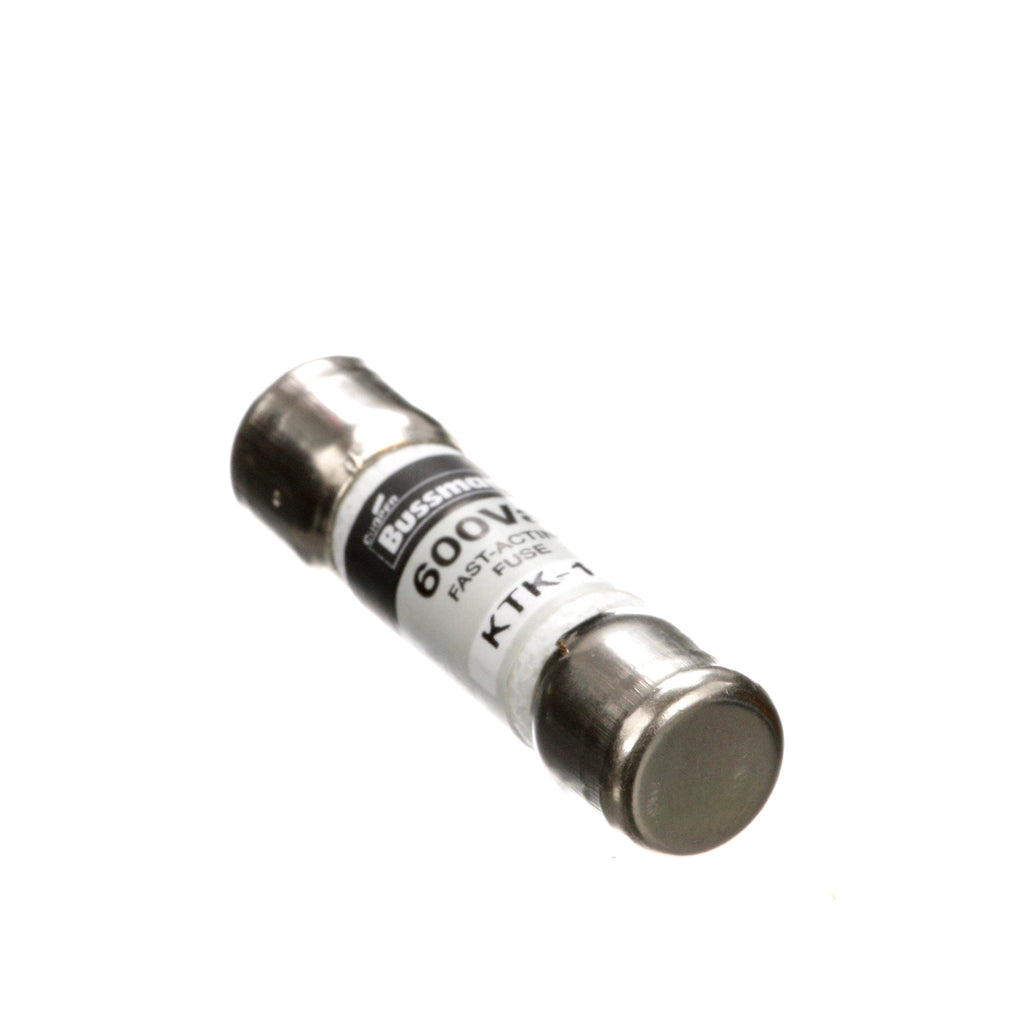

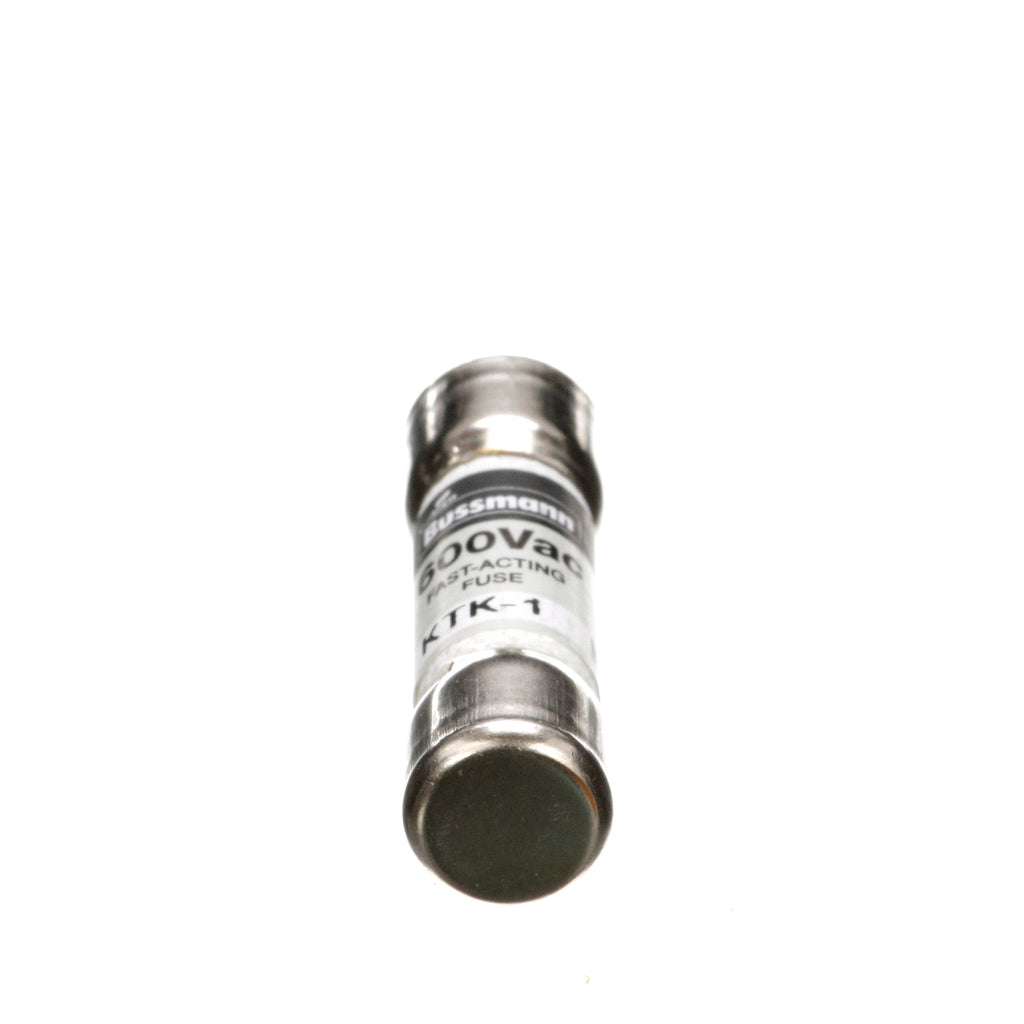

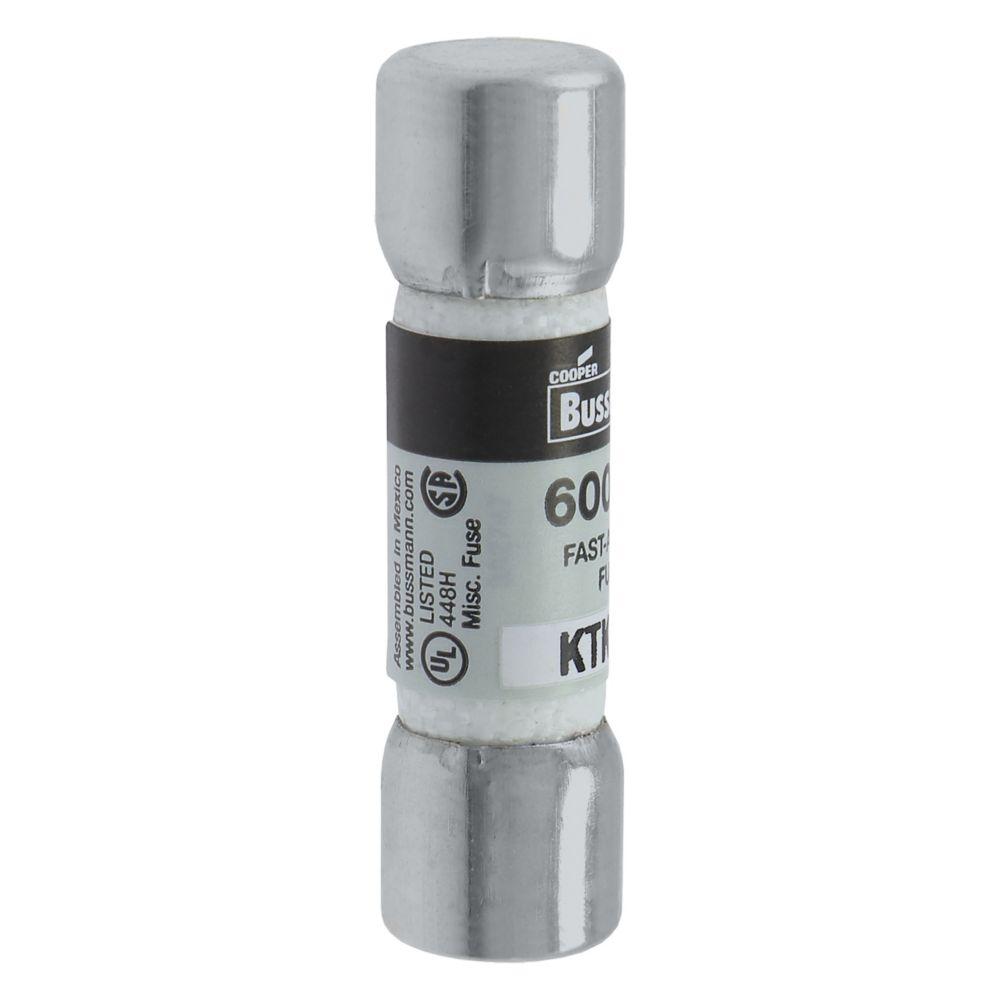

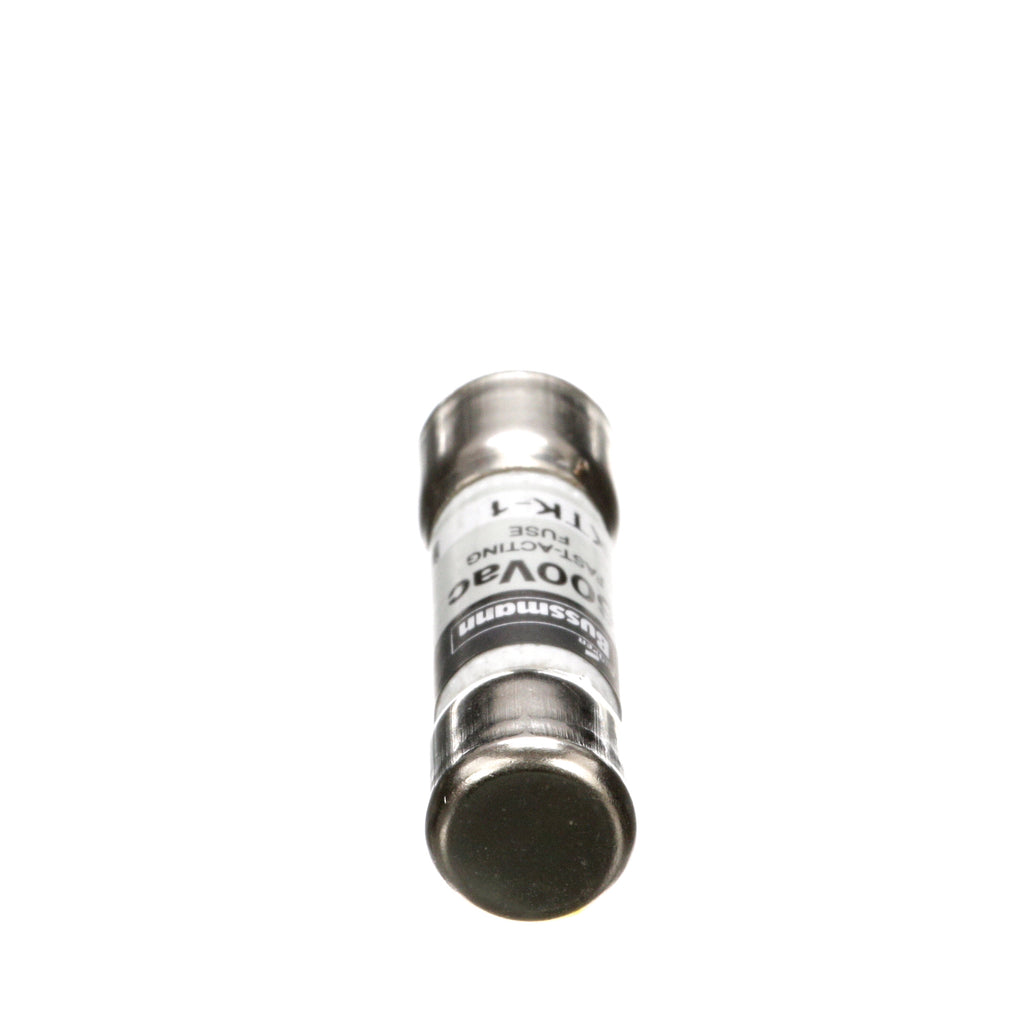

KTK-1 is a fast-acting midget fuse from Eaton Bussmann designed for control, lighting, and meter circuit protection.This fuse features a 1 ampere rating, 600 volts AC voltage rating, and a high interrupting rating of 100 kA at 600 VAC. It has ferrule end connections with a melamine tube body and nickel-plated bronze end caps. The fuse is non-indicating and compact in size, measuring approximately 13/32 inch by 1-1/2 inch. It is UL listed, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage Rating: 1 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 100 kA at 600 VAC
• Fuse Type: Fast Acting (Fast Blow)
• Connection Type: Ferrule end x ferrule end
• Body Material: Melamine tube
• End Caps: Nickel-plated bronze
• Dimensions: 13/32" x 1-1/2" (10.3 x 38.1 mm)
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KTK-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KTK Series
• Type : KTK
• Voltage : 600
• Amperage : 1
• AIC rating : 100kA@600V
• Barrels : 1

Product Data

• UPC : 051712420105
• GTIN : 00051712420105
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE, CSA, UL Listed
