Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KRP-CL-400

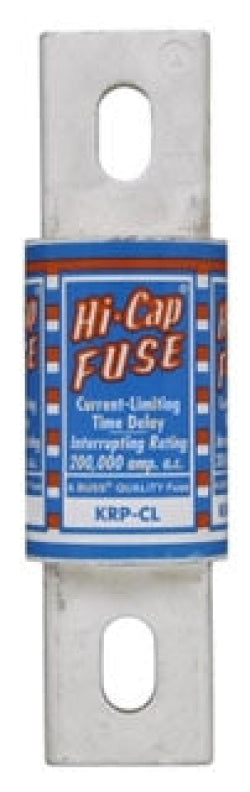

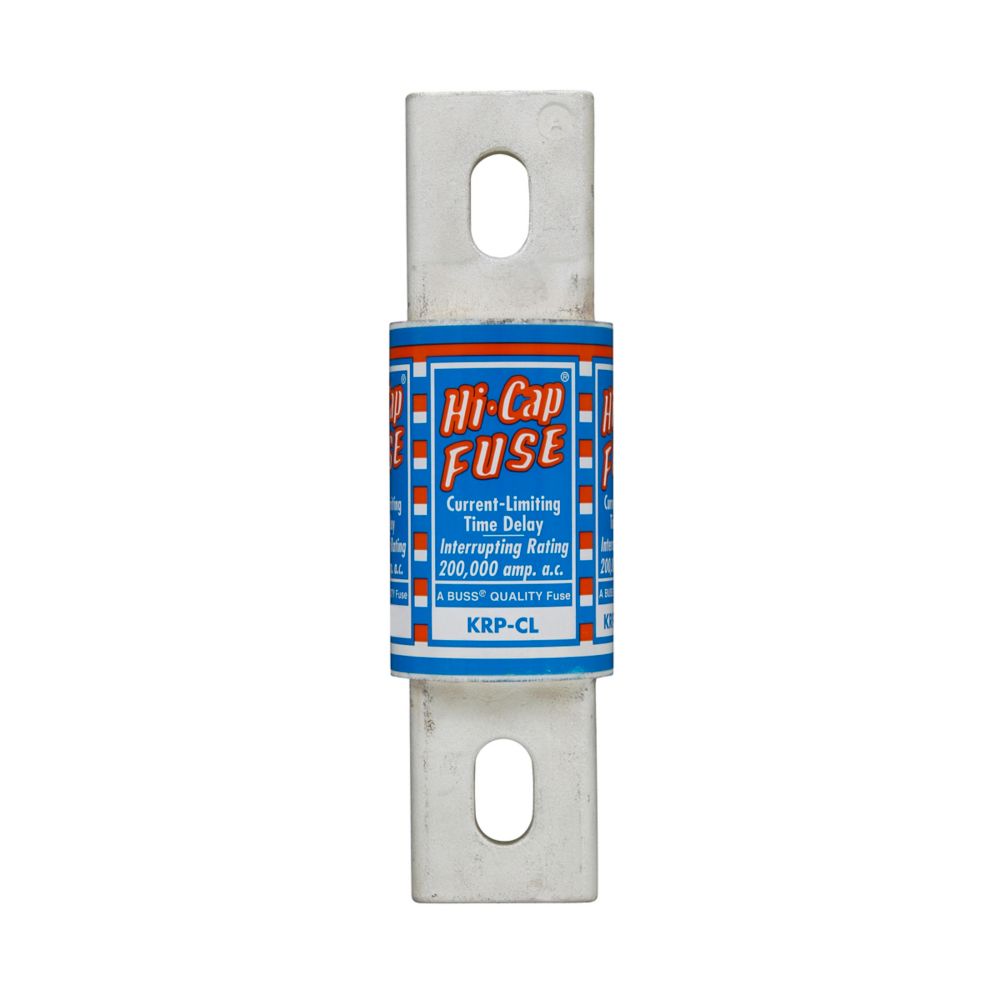

KRP-CL-400 is a Eaton Bussmann series Class L fuse designed for time-delay and current limiting applications with a 400 amp rating.This fuse features a 600 volt AC rating, 1 pole configuration, and an interrupting rating of 200,000 amperes at 600 VAC. It has a blade end x blade end connection and a compact footprint suitable for various industrial and commercial electrical protection needs. The fuse is UL Listed and CSA Certified for safety and reliability.
- Amperage: 400 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kAIC at 600 VAC
- Poles: 1
- Fuse Class: Class L
- Time-Delay, Current Limiting
- Connection Type: Blade end x blade end
- Non-indicating fuse
- Dimensions: 2.78" W x 2.78" H x 8.63" L
- UL Listed, CSA Certified
- Small footprint design
Specifications
- Part Number: KRP-CL-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : KRP-CL
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712605724
- GTIN : 00051712605724
- Dimensions : 8.63 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
- Weight : 3.26
- Certification : UL, CSA
