Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KRP-CL-350

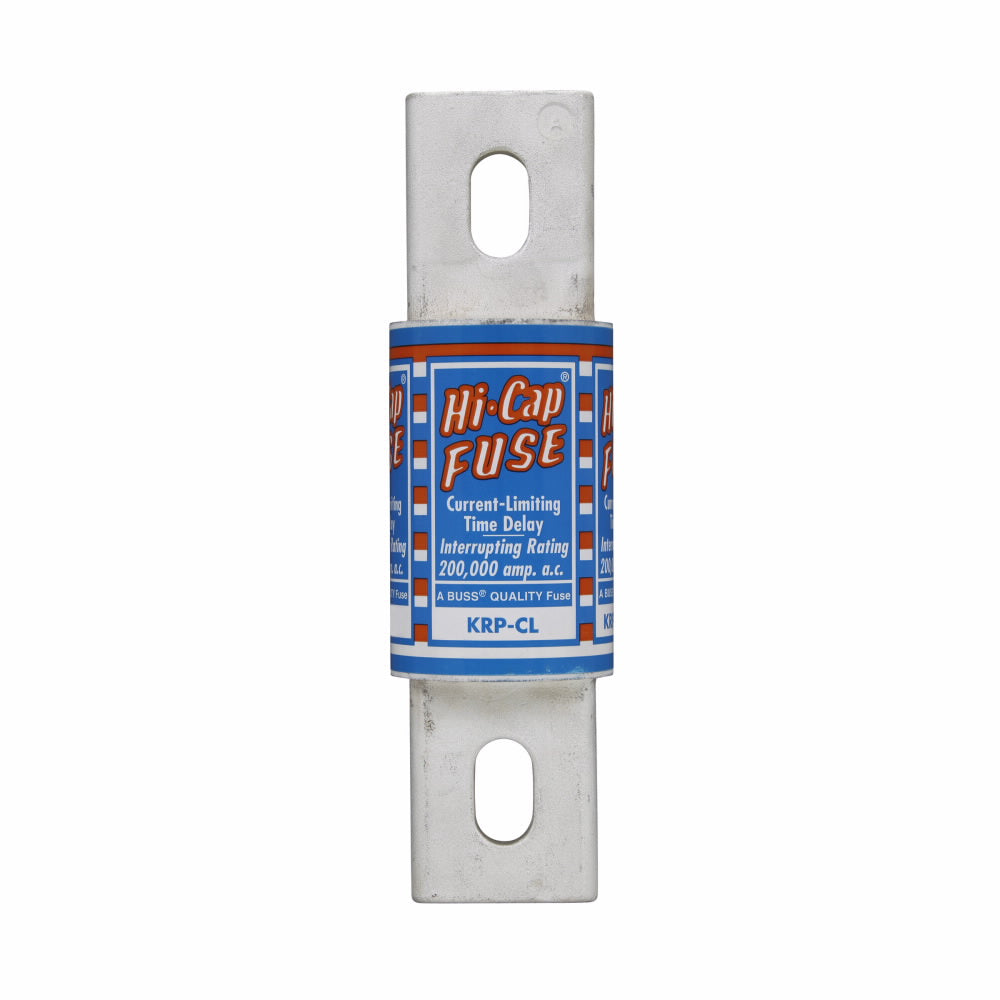

KRP-CL-350 is a Class L time delay current-limiting fuse rated for 350 amperes at 600 volts AC, designed for industrial branch circuit protection in power distribution systems. This cartridge blade fuse provides reliable overcurrent protection with a 200 kAIC interrupt rating at 600 VAC, making it suitable for heavy-duty industrial facilities and factory applications requiring coordinated circuit protection. The time delay characteristic allows temporary inrush currents while protecting against sustained overloads and short circuits.
- Current Rating: 350 A
- Voltage Rating: 600 VAC
- Fuse Type: Time Delay (Slow Blow)
- Class: L
- Body Style: Cartridge Blade Fuses
- Interrupt Rating: 200 kAIC at 600 VAC
- Mounting: Blade end x Blade end
- Length: 2.5 inches
- Non-indicating
Specifications
- Part Number: KRP-CL-350
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : KRP-CL
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712605717
- GTIN : 00051712605717
- Dimensions : 8.63 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
- Weight : 3.26
