Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KRP-CL-250

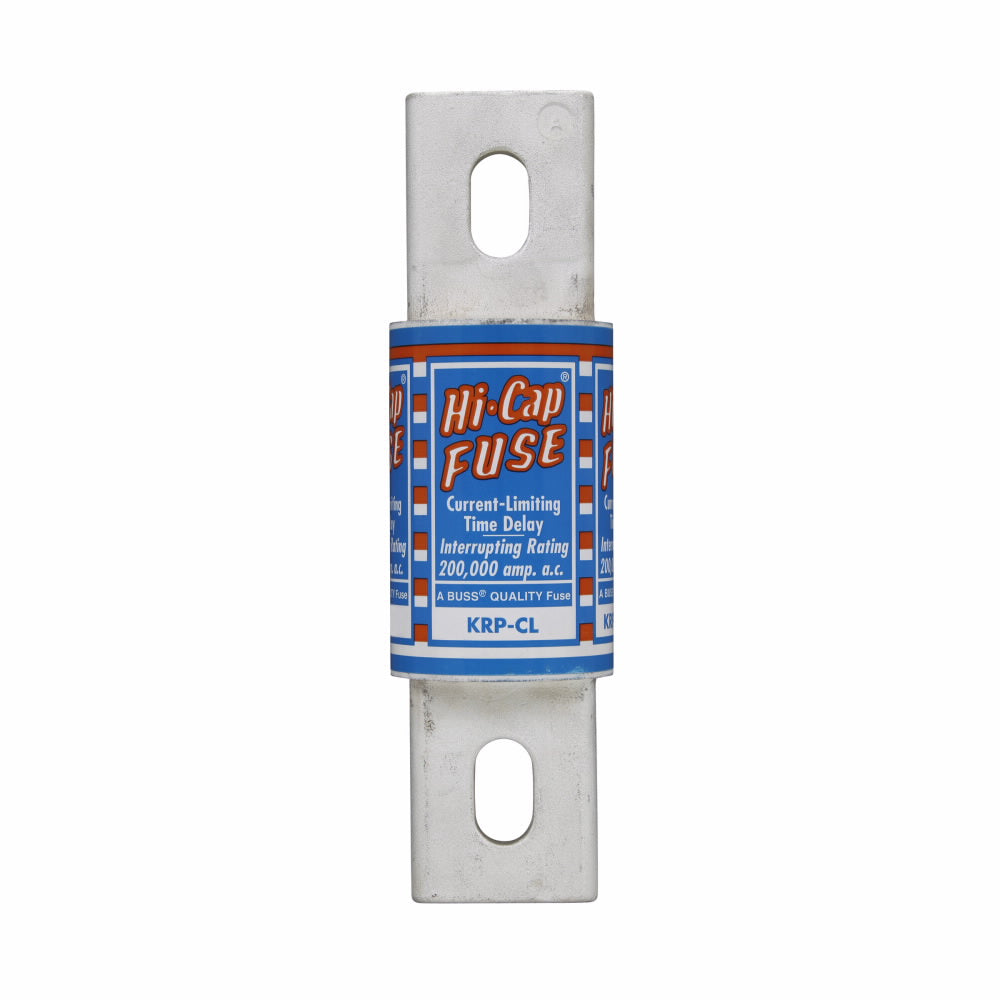

KRP-CL-250 is an Eaton Bussmann series Class L time-delay current-limiting fuse designed for high-capacity power distribution applications in switchboards, panelboards, and machinery disconnects. This cartridge blade fuse provides reliable overcurrent protection with slow-blow characteristics that accommodate inrush currents while maintaining fast response to sustained faults. KRP-CL-250 combines current-limiting technology with time-delay operation to protect sensitive equipment and reduce nuisance trips in industrial and commercial electrical systems.
- Amperage Rating: 250 A
- Voltage Rating: 600 VAC
- Fuse Class: Class L
- Fuse Type: Time-Delay Current-Limiting
- Body Style: Cartridge Blade
- Interrupt Rating: 200 kAIC at 600 VAC
- RoHS Compliant
Specifications
- Part Number: KRP-CL-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : KRP-CL
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712605694
- GTIN : 00051712605694
- Dimensions : 8.63 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
- Weight : 3.26
