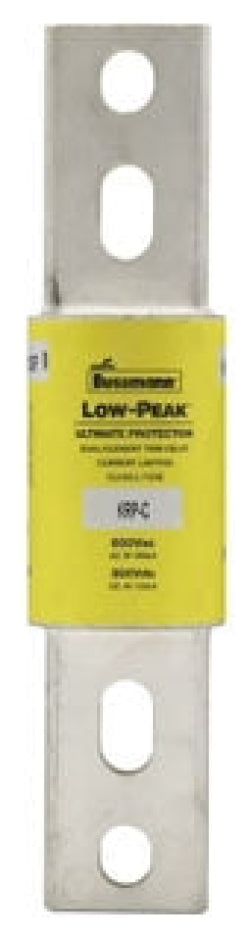

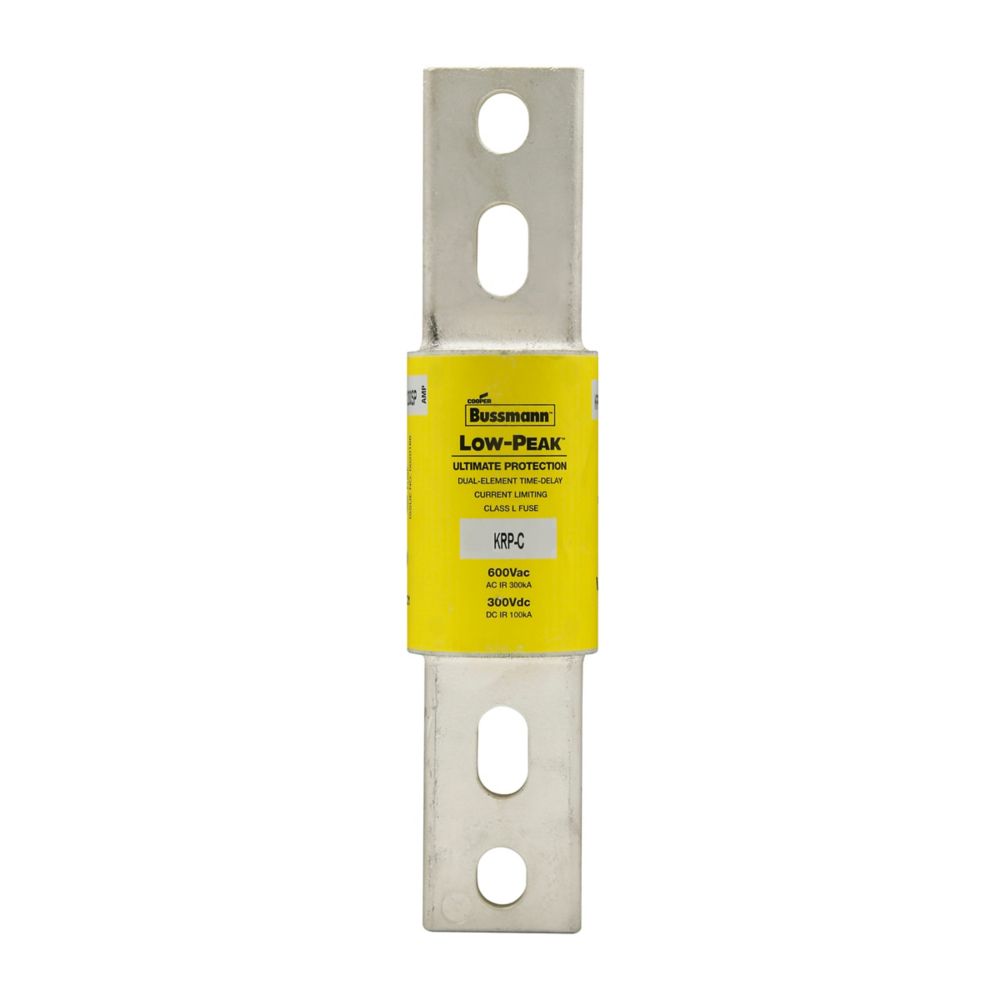

KRP-C-900SP - Eaton Bussmann 900A 600V AC Class L Time-Delay Current Limiting Fuse

KRP-C-900SP

KRP-C-900SP is a 900 amp, 600 volt AC Class L time-delay current limiting fuse from Eaton Bussmann series designed for high capacity system protection.This fuse features a 4-second minimum time delay at 500% rated current, a 300 kA interrupting rating at 600 VAC, and 100 kA at 300 VDC. It has a bolted blade end connection, a compact footprint, and is RoHS compliant and CE marked. The fuse is UL listed and CSA certified for special purpose use.

• Amperage Rating: 900 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Class: Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Dimensions: Approx. 2.5" diameter x 10.75" length
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Features: Small footprint, current limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-900SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 900
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605144
• GTIN : 00051712605144
• Country of Origin : Mexico
• Dimensions : 8.63 in x 2.53 in x 2.53 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CSA, UL
