KRP-C-750SP - Eaton Bussmann Class L Time-Delay Fuse 750A 600V 300kA

KRP-C-750SP

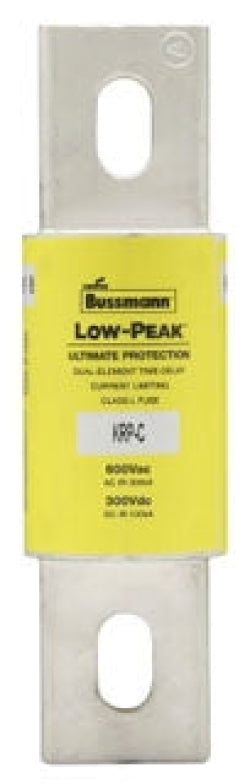

KRP-C-750SP is an Eaton Bussmann series Class L current-limiting time-delay fuse rated for 750 amperes at 600 volts AC with a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC. This fuse provides fast short-circuit protection combined with time-delay performance for ultimate protection in high-capacity systems including mains and large feeders. The KRP-C-750SP features a bolted blade end connection, non-indicating design, and a 4-second minimum time-delay at 500 percent of rated current. The current-limiting action reduces bus bracing requirements while consistent 2:1 ampacity ratios enable selective coordination. UL Listed and CSA Certified for reliable performance in virtually any application.

• Current Rating: 750 Amps
• Voltage Rating: 600 VAC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-Delay, Current-Limiting
• Class: L
• Body Style: Cartridge Blade Fuses
• Terminal Type: Bolted Blade End x Bolted Blade End
• Time-Delay: 4 seconds minimum at 500% rated current
• Certifications: UL Listed, CSA Certified
• Series: Bussmann LOW-PEAK

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-750SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 750
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605090
• GTIN : 00051712605090
• Country of Origin : Mexico
• Dimensions : 8.63 in x 2.53 in x 2.53 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE, CSA, UL
