KRP-C-700SP - Eaton 700A 600VAC/300VDC Class L Time-Delay Current Limiting Fuse 2.5in x 8.63in

KRP-C-700SP

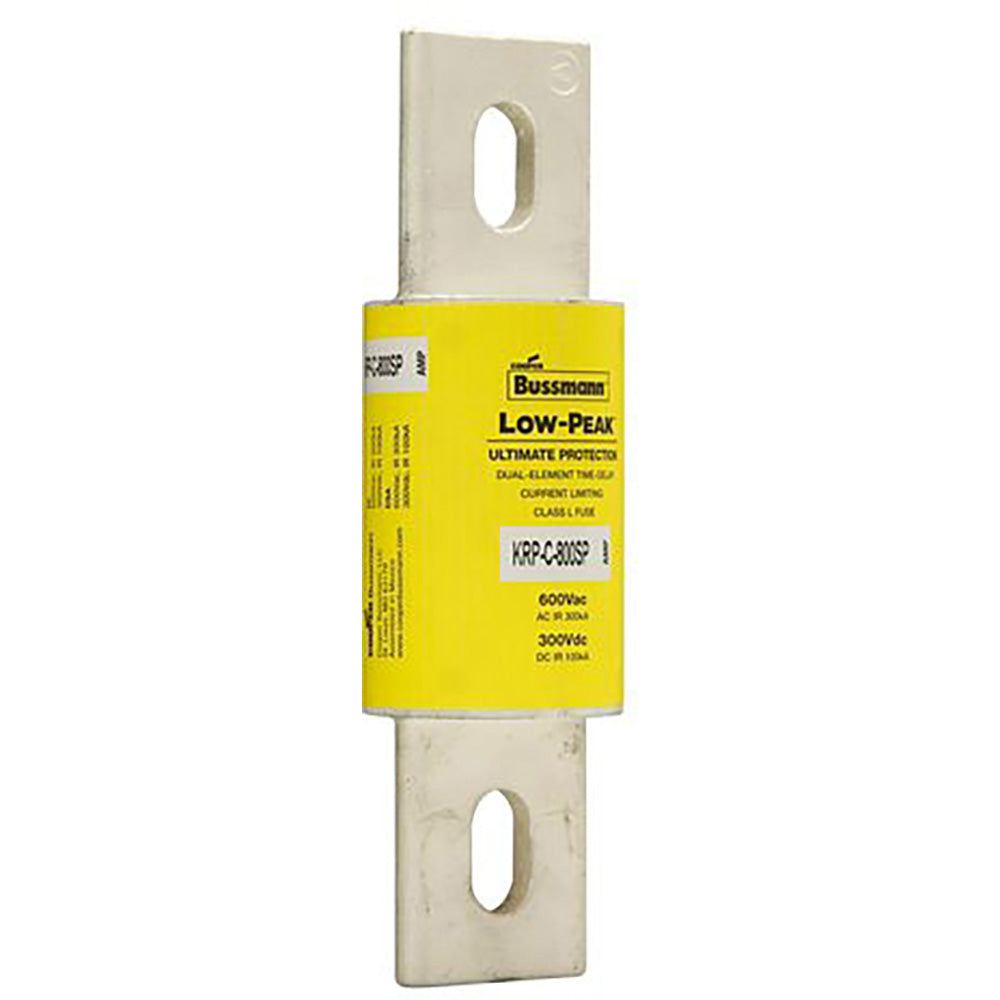

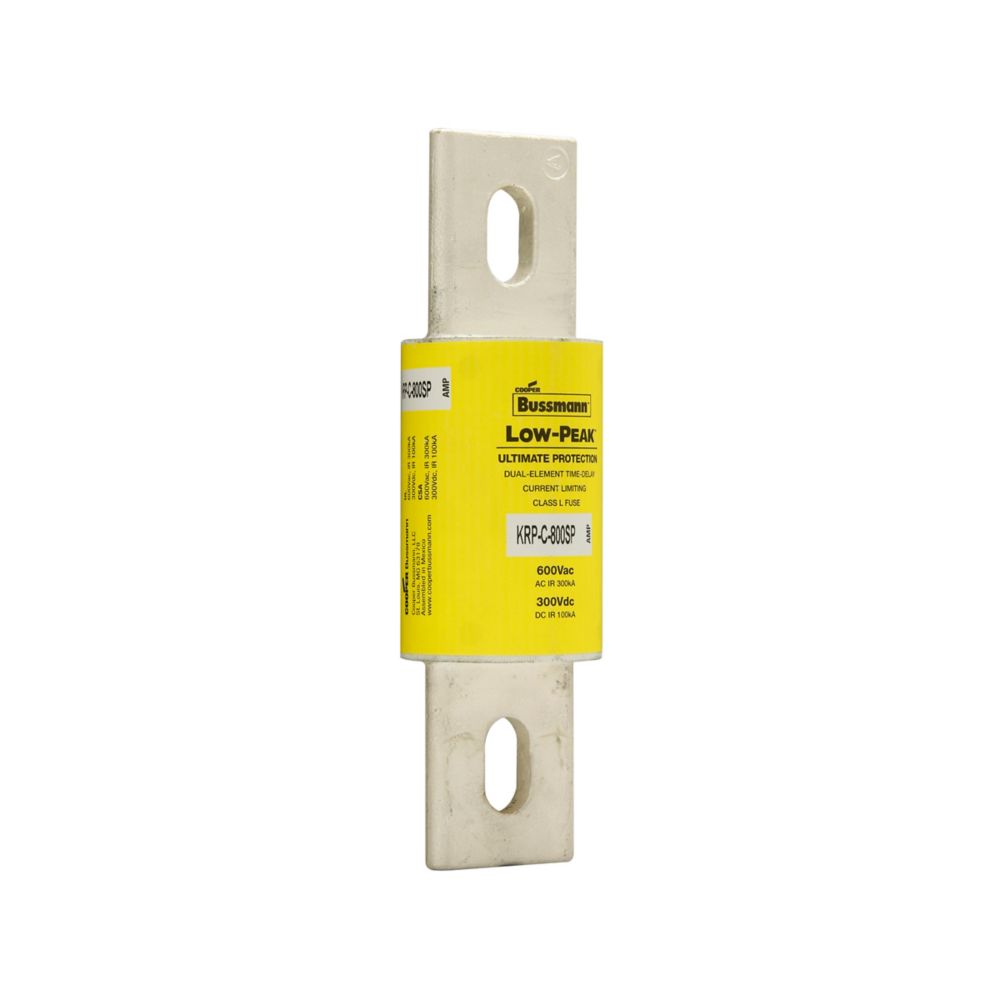

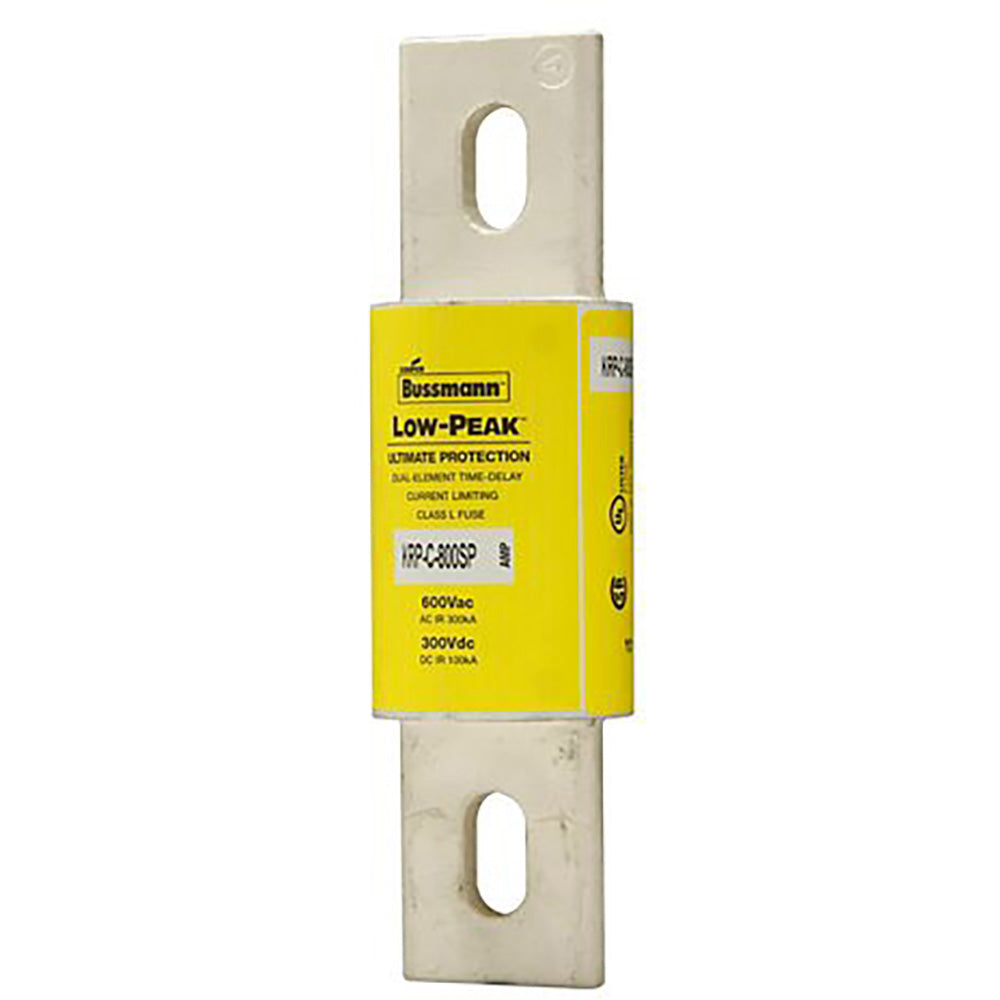

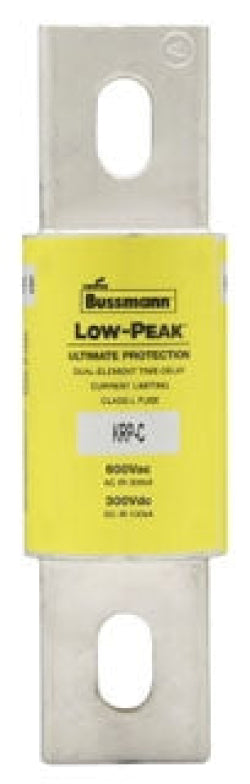

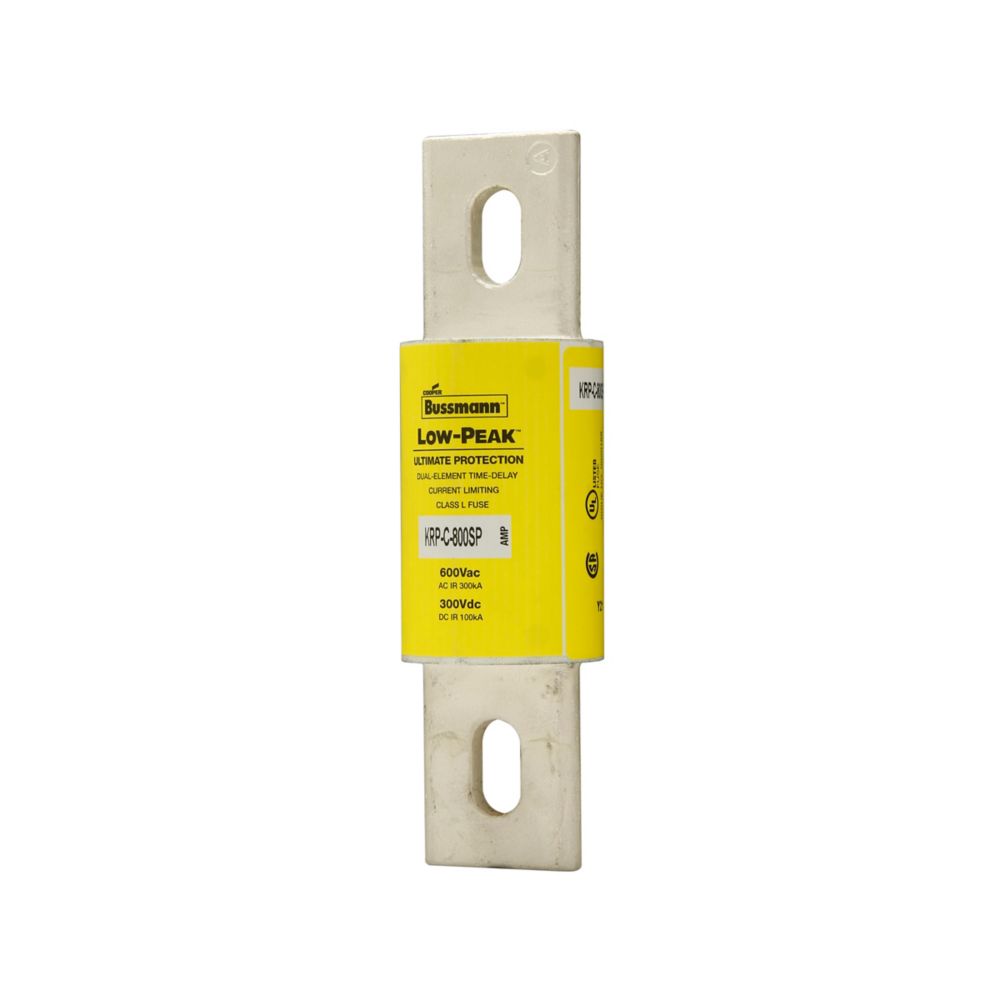

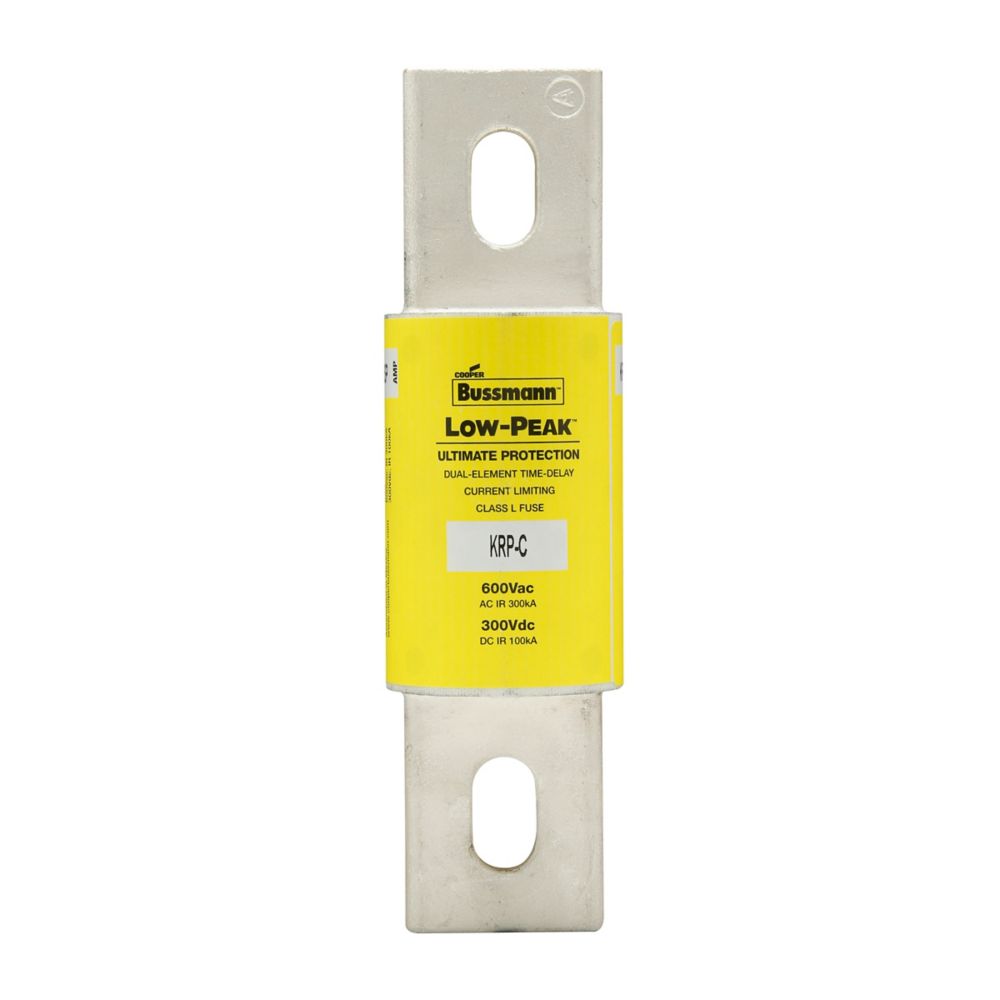

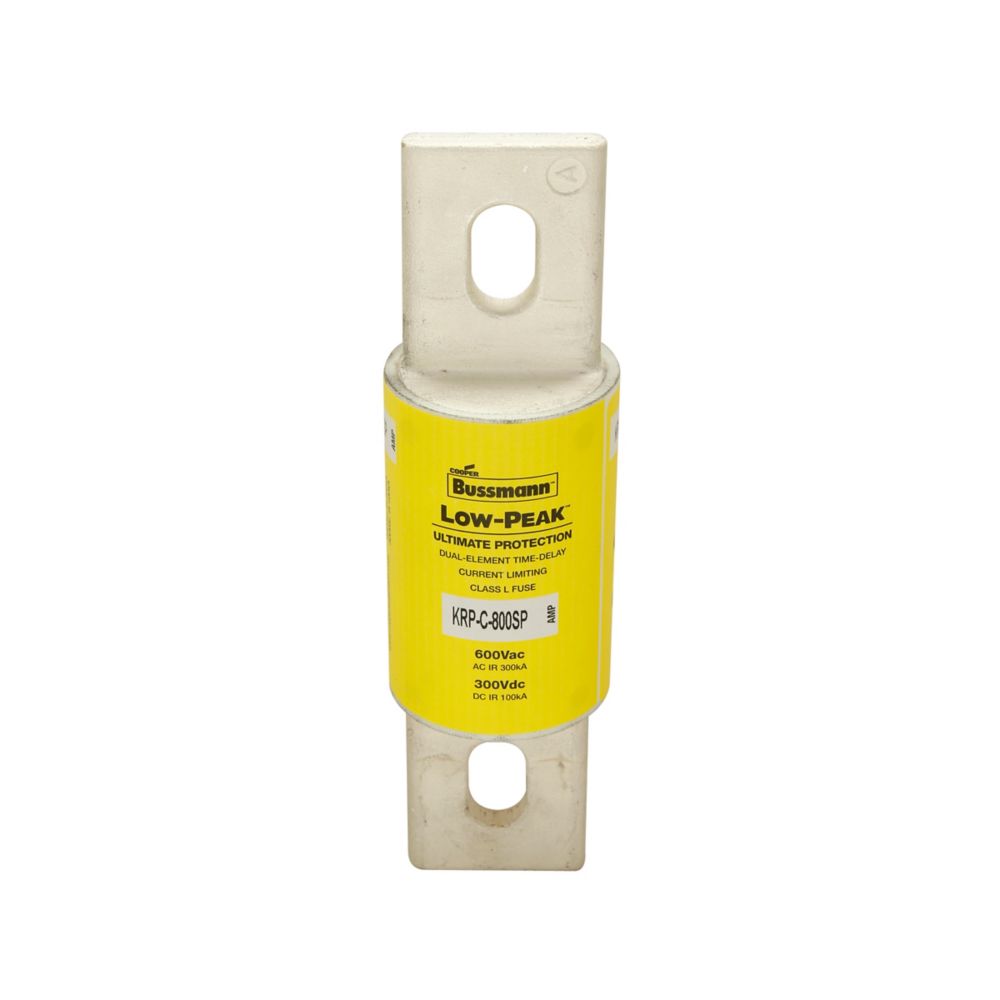

KRP-C-700SP is a Eaton Bussmann series Class L time-delay current limiting fuse rated for 700 Amps and 600VAC/300VDC operation.The KRP-C-700SP fuse features a 4-second minimum time delay at 500% rated current, bolted blade end connections, and a high interrupting rating of 300 kA at 600VAC and 100 kA at 300VDC. It is RoHS compliant and CE marked, designed for overload and short circuit protection in high capacity electrical systems.

• Amperage Rating: 700 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: L (Bussmann series KRP-C)
• Time Delay: Minimum 4 seconds at 500% rated current
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Dimensions: 2.5 inches diameter x 8.63 inches length
• Material: Melamine Tube
• Certifications: RoHS Compliant, CE Marked, UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-700SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 700
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605113
• GTIN : 00051712605113
• Country of Origin : Mexico
• Dimensions : 8.63 in x 2.53 in x 2.53 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
