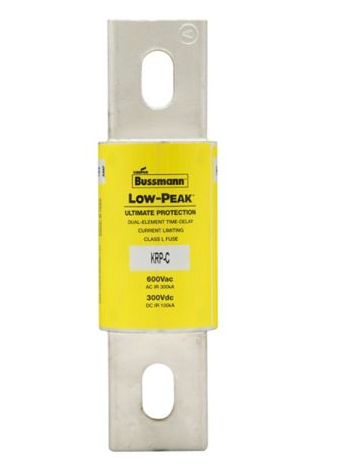

KRP-C-650SP - Eaton 650 Amp 600 Volt Class L Time-Delay Current-Limiting Fuse

KRP-C-650

KRP-C-650SP is a 650 Amp, 600 Volt Class L time-delay current-limiting fuse from Eaton's Bussmann series designed for high capacity electrical protection.This fuse features a time-delay of at least 4 seconds at 500% rated current, providing reliable overload and short circuit protection. It has a high interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC, ensuring safe operation in demanding applications. The all-purpose silver-linked fuse construction includes 99.9% pure silver links for low watt loss and low operating temperature. It is UL Listed (Guide JFHR, File E56412) and CSA Certified (Class 1422-02, File 53787). The fuse body style is cartridge blade with physical dimensions approximately 2.5 inches by 8.63 inches.

Key Specifications
• Amperage: 650 Amps
• Voltage Rating AC: 600 Volts
• Voltage Rating DC: 300 Volts
• Fuse Type: Time-Delay (Slow Blow)
• Interrupt Rating: 300,000 AIC at 600 VAC
• Interrupt Rating: 100,000 AIC at 300 VDC
• Fuse Class: Class L
• Body Style: Cartridge Blade
• Time Delay: Minimum 4 seconds at 500% rated current
• Construction: Silver-linked fuse with 99.9% pure silver links
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KRP-C-650
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 650
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1



Product Data

• Weight : 5
