Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KRP-C-601SP

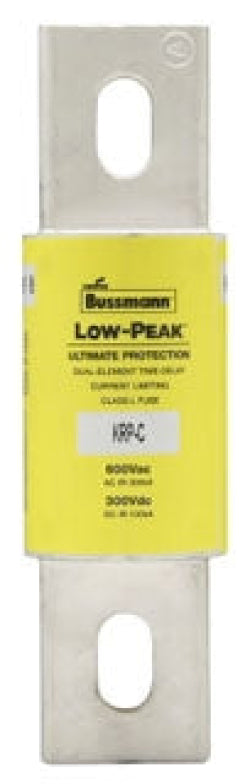

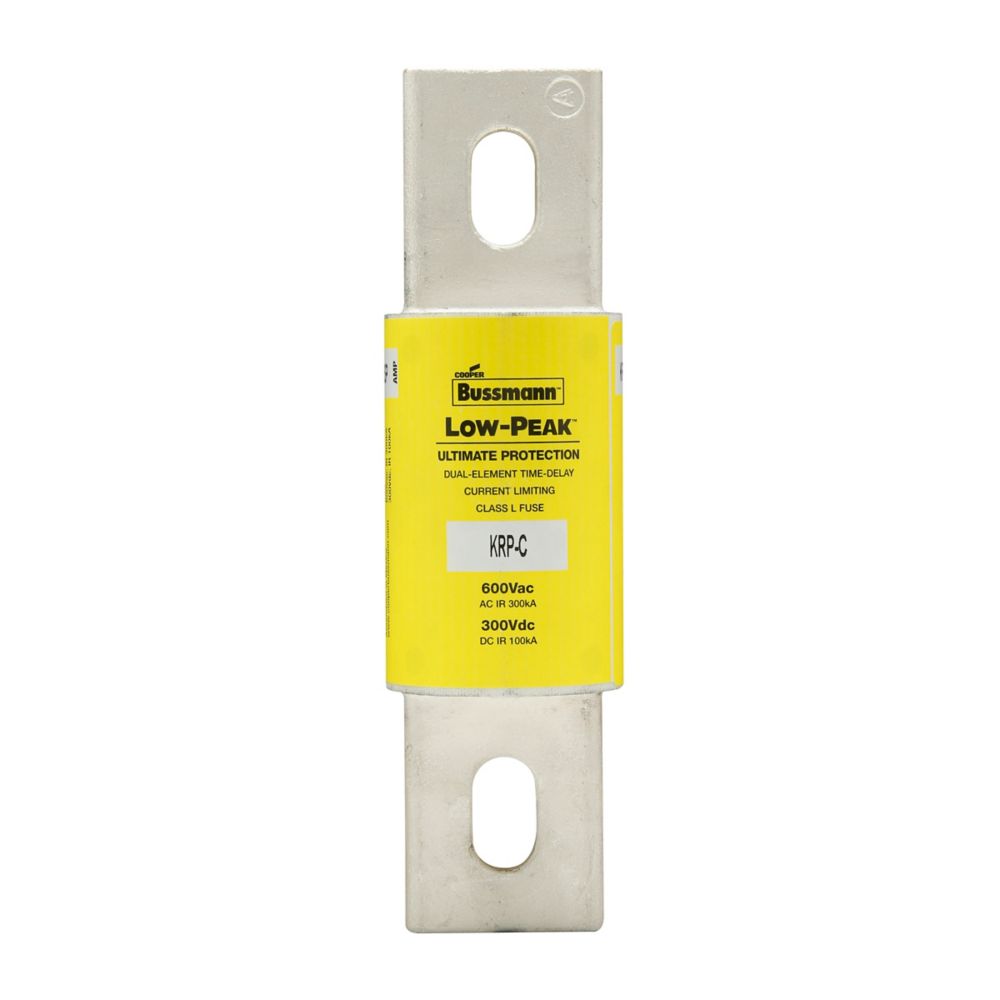

KRP-C-601SP is a Bussmann series Class L time-delay current-limiting fuse rated for 601 amps and 600 volts AC.
This fuse features a low-peak design providing ultimate protection with a minimum 4-second time delay at 500% of rated current. It is suitable for both overload and short circuit protection in high capacity systems, with an interrupting rating of 300kA at 600VAC and 100kA at 300VDC. The fuse is UL listed, CSA certified, CE marked, and RoHS compliant, ensuring reliable and safe operation in demanding electrical applications.
- Key Specifications
- Amperage: 601A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: Class L
- Time Delay: Minimum 4 seconds at 500% rated current
- Interrupt Rating: 300kA RMS Symmetrical at 600VAC
- Interrupt Rating: 100kA at 300VDC
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified, CE, RoHS Compliant
- Physical Size: 2.5" x 8.63"
- Series: Bussmann KRP-C Low-Peak
- Part Number: KRP-C-601SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : KRP-C
- Voltage : 600
- Amperage : 601
- AIC rating : 300kA@600V
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
- UPC : 051712605069
- GTIN : 00051712605069
- Country of Origin : Mexico
- Dimensions : 8.63 in x 2.53 in x 2.53 in (Length/Depth x Height x Width)
- Weight : 3.8
- Certification : CSA, UL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
