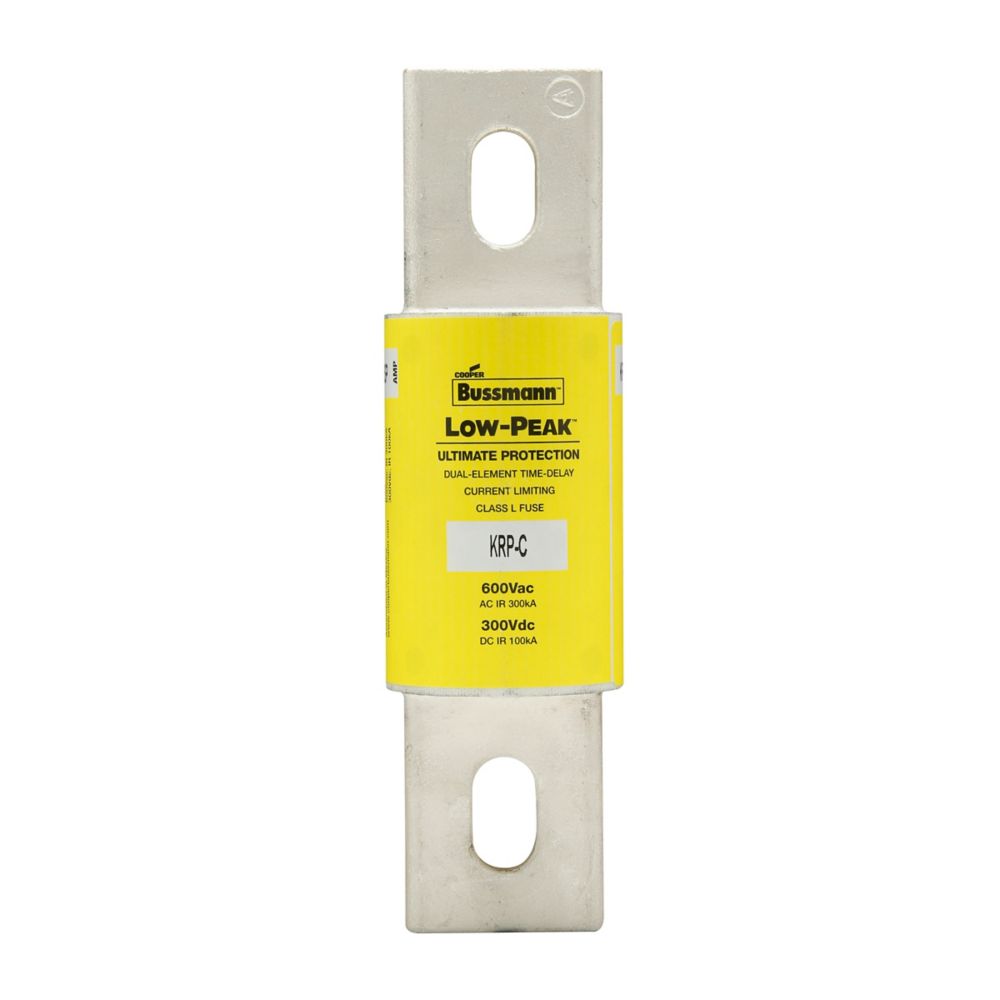

KRP-C-601 - Eaton 601A 600V AC Class L Time-Delay Current Limiting Fuse

KRP-C-601

KRP-C-601 is a 601 amp, 600 volt AC Class L time-delay current limiting fuse designed for high capacity systems protection.

This Eaton Bussmann Series KRP-C fuse provides fast short-circuit protection with a minimum 4-second time delay at 500% of rated current. It features current-limiting action that reduces bus bracing requirements and is suitable for both overload and short circuit protection in mains and large feeders. The fuse is UL Listed and CSA Certified with an interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC, ensuring reliable performance in demanding applications.

• Amperage: 601 A
• Voltage Rating: 600 VAC / 300 VDC
• Class L Fuse
• Time-Delay: Minimum 4 seconds at 500% rated current
• Current Limiting
• Interrupting Rating: 300,000 AIC at 600 VAC
• Interrupting Rating: 100,000 AIC at 300 VDC
• UL Listed, Guide JDDZ, File E4273
• CSA Certified, Class 1422-02, File 53787
• All-purpose silver-linked fuse for overload and short circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-601
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 601
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• Weight : 5
