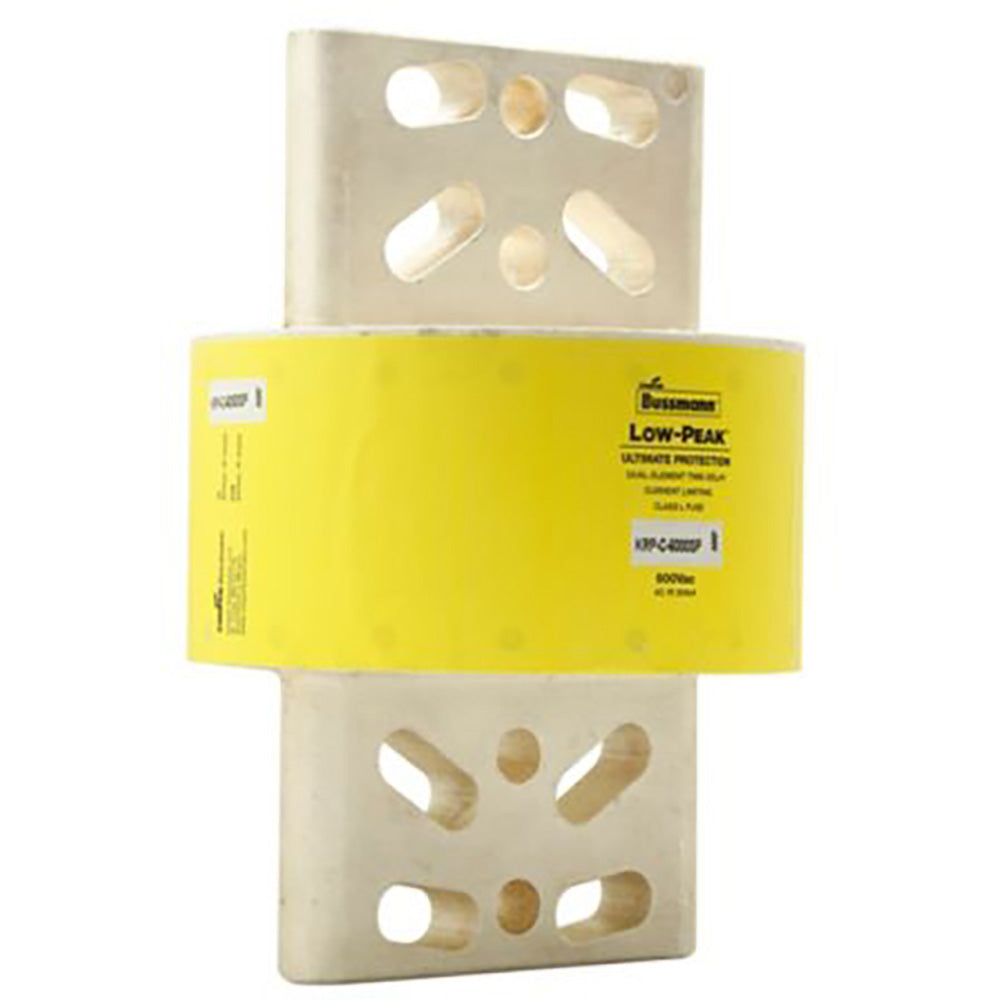

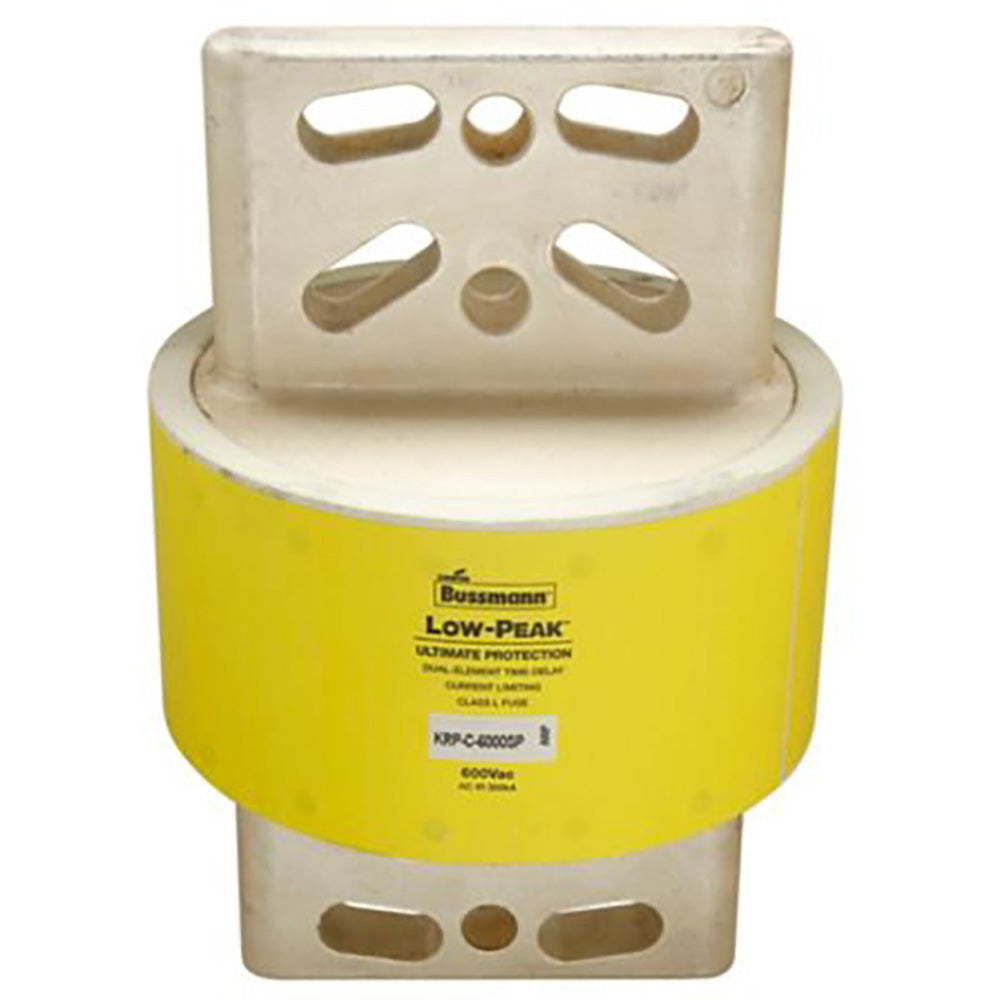

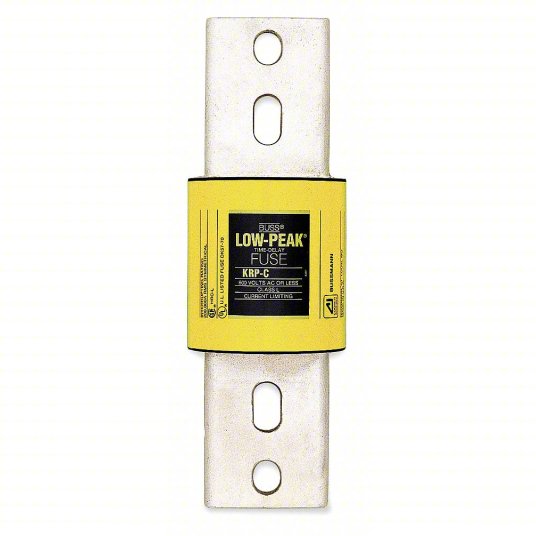

KRP-C-6000SP - Eaton 6000A 600VAC Class L Time Delay Fuse

KRP-C-6000SP

KRP-C-6000SP is a high-capacity Eaton Class L time-delay fuse designed for reliable overload and short-circuit protection in industrial power distribution systems.

This fuse features a 6000 ampere current rating and is rated for 600 VAC and 300 VDC operation. It provides time-delay performance with current-limiting action, allowing for fast short-circuit protection while accommodating temporary overloads. The fuse has a 300kA interrupting rating, making it suitable for high fault current applications. It is UL Listed and CSA Certified, ensuring compliance with industry safety standards. The fuse is center bolted for secure mounting and uses silver links for low watt loss and low operating temperature during normal operation.

• Current Rating: 6000 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Type: Time Delay (Slow Blow)
• Interrupting Rating: 300kA
• Class L Fuse
• Center Bolted Mounting
• UL Listed and CSA Certified
• Silver Links for Low Watt Loss
• Current-Limiting Action
• Suitable for Mains and Large Feeders
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-6000SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 6000
• AIC rating : 300kA@600V
• Diameter : 7.13
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 05171260560
• GTIN : 00051712605601
• Dimensions : 10.75 in x 7.17 in x 7.17 in (Length/Depth x Height x Width)
• Weight : 33.6
