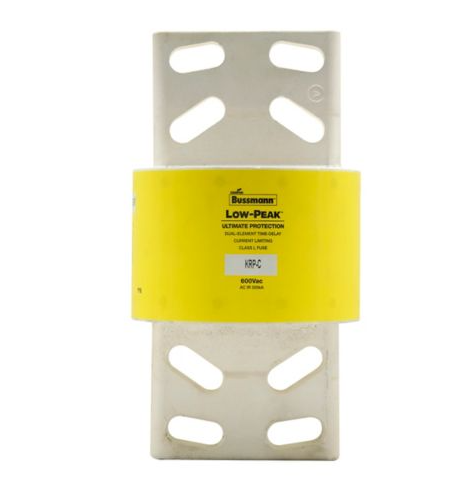

KRP-C-4000SP - Eaton Bussmann Class L Time-Delay Current Limiting Fuse 4000A 600V 300kA Interrupt

KRP-C-4000

KRP-C-4000SP is a Eaton Bussmann Class L time-delay, current-limiting fuse rated for 4000 amps and 600 volts AC.This fuse features a 300 kA interrupting rating at 600 VAC, a minimum 4-second time delay at 500% rated current, and bolted blade end connections. It is designed for high capacity systems providing both overload and short circuit protection with consistent performance and UL and CSA certifications.

Key Specifications
• Amperage Rating: 4000 A
• Voltage Rating: 600 V AC, 300 V DC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Class: Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Connection Type: Bolted blade end x bolted blade end
• Physical Size: 5.75" diameter x 10.75" length
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Current Limiting: Yes
• Series: Bussmann KRP-C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-4000
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 4000
• AIC rating : 300kA@600V
• Diameter : 5.75
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605403
• GTIN : 00051712605403
• Weight : 24
