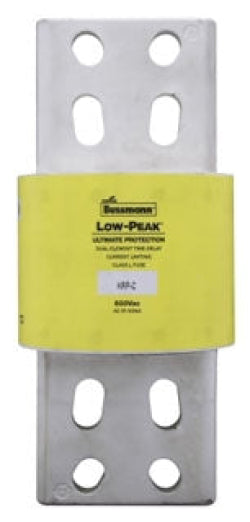

KRP-C-3000SP - Eaton Bussmann 3000A 600V Class L Time-Delay Current Limiting Fuse

KRP-C-3000SP

KRP-C-3000SP is a high-performance Eaton Bussmann Class L fuse designed for reliable overload and short circuit protection in high capacity electrical systems.This 3000 amp, 600 volt AC fuse features time-delay current limiting technology with a minimum 4 second delay at 500% rated current, providing fast short circuit protection while allowing temporary overloads. It has an interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. The all-purpose silver-linked fuse construction includes O-ring seals and high-grade silica sand filler for enhanced performance and durability. It is UL Listed (Guide JFHR, File E56412) and CSA Certified (Class 1422-02, File 53787).

Key Specifications
• Amperage: 3000 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Interrupting Rating: 300,000 AIC @ 600 VAC, 100,000 AIC @ 300 VDC
• Construction: Silver-linked, current limiting
• Dimensions: Approx. 5.03 in diameter x 10.75 in length
• Certifications: UL Listed, CSA Certified
• Mounting Type: Cartridge fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-3000SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 3000
• AIC rating : 300kA@600V
• Diameter : 5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605304
• GTIN : 00051712605304
• Country of Origin : Mexico
• Dimensions : 10.75 in x 5.03 in x 5.03 in (Length/Depth x Height x Width)
• Weight : 16.9
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
