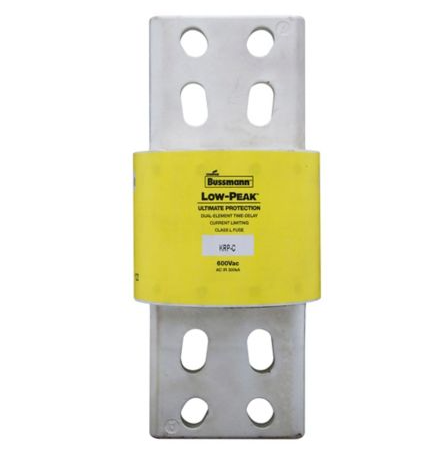

KRP-C-3000 - Eaton Bussmann Series Class L Time-Delay Current Limiting Fuse 3000A 600VAC 300VDC 300kAIC

KRP-C-3000

KRP-C-3000 is a Bussmann Series Class L time-delay, current-limiting fuse designed for high-capacity electrical systems requiring reliable overload and short-circuit protection. This fuse features a robust cartridge body with bolted blade terminals for secure mounting and consistent performance in demanding applications.Engineered for both AC and DC circuits, the KRP-C-3000 fuse provides fast short-circuit protection with time-delay characteristics, allowing for close sizing to load requirements. Its current-limiting action helps reduce bus bracing needs and ensures reliable operation in mains and large feeder circuits. The fuse is constructed with high-grade silica sand filler and 99.9% pure silver links for low watt loss and stable temperature under normal conditions.

• Amperage Rating: 3000 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
• Series/Frame: Bussmann KRP-C
• Mounting Type: Bolt-On, Knife Blade Terminal
• Response Time: 4 seconds minimum at 500% rated current
• Class: Class L
• Type: Time-Delay, Current Limiting
• Body Material: Melamine
• Body Size: 5 in Dia x 10.75 in L
• Terminal Type: Bolted Blade End
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-3000
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 3000
• AIC rating : 300kA@600V
• Diameter : 5
• Class Rating : L
• Barrels : 1

Product Data

• Weight : 18
