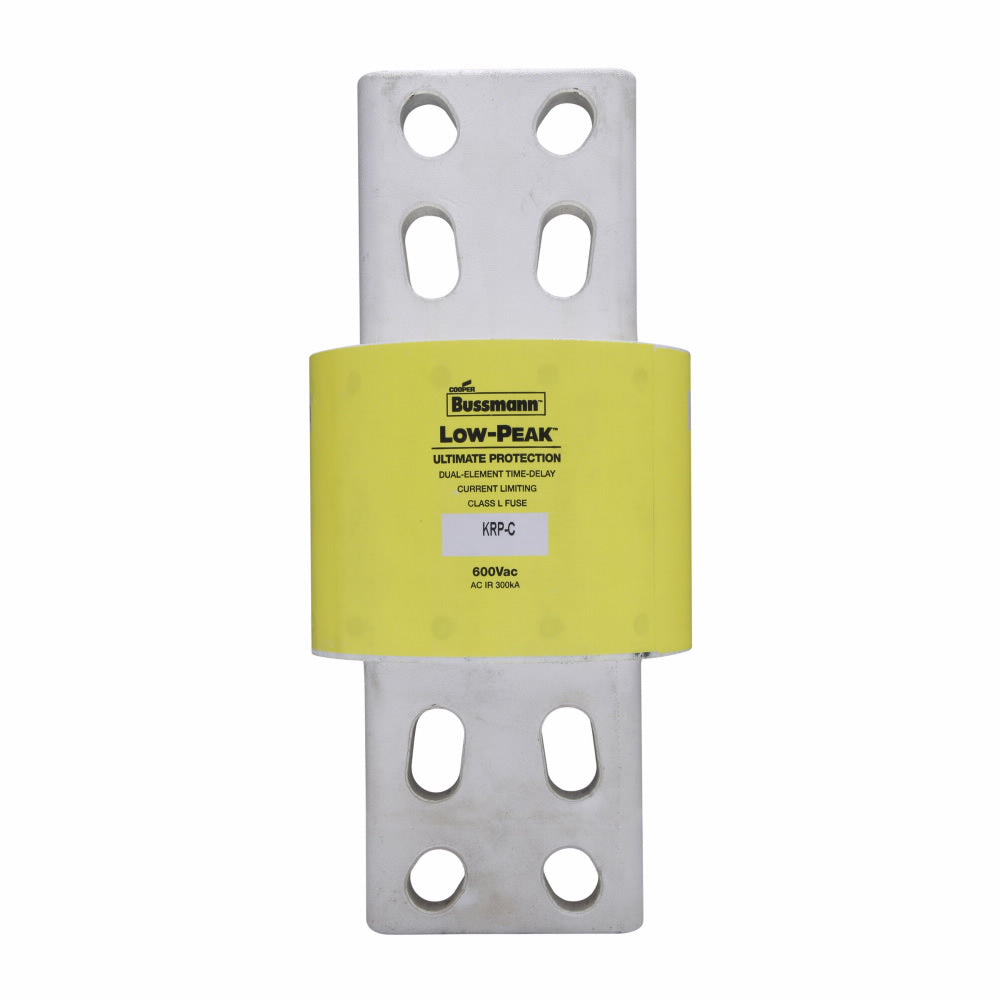

KRP-C-2001SP - Eaton Bussmann Class L Time-Delay Fuse 2001A 600V AC 1-Pole

KRP-C-2001SP

KRP-C-2001SP is an Eaton Bussmann Class L time-delay fuse designed for high-capacity electrical protection applications.

This fuse features a 2001 ampere current rating and 600 volts AC voltage rating. It is a single-pole, cartridge-style fuse with a time-delay characteristic, providing fast short-circuit protection while allowing temporary overloads without nuisance blowing. The KRP-C-2001SP has a high interrupting rating of 300,000 amps RMS symmetrical at 600 VAC, ensuring reliable operation in large distribution switchboards and feeders. It is UL Listed, CSA Certified, CE marked, and RoHS compliant, meeting stringent safety and environmental standards.

• Current Rating: 2001 Amps
• Voltage Rating: 600 VAC
• Poles: 1
• Fuse Type: Time-Delay (Slow Blow)
• Interrupting Rating: 300 kA RMS Symmetrical
• Class: Class L
• Body Style: Cartridge Blade Fuse
• Agency Approvals: UL Listed, CSA Certified, CE, RoHS Compliant
• Series: Bussmann KRP-C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-2001SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 2001
• AIC rating : 300kA@600V
• Diameter : 4.8
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712178471
• GTIN : 00051712178471
• Dimensions : 10.75 in x 5.03 in x 5.03 in (Length/Depth x Height x Width)
• Weight : 16.5
