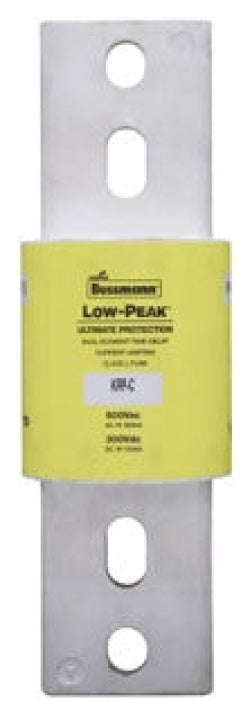

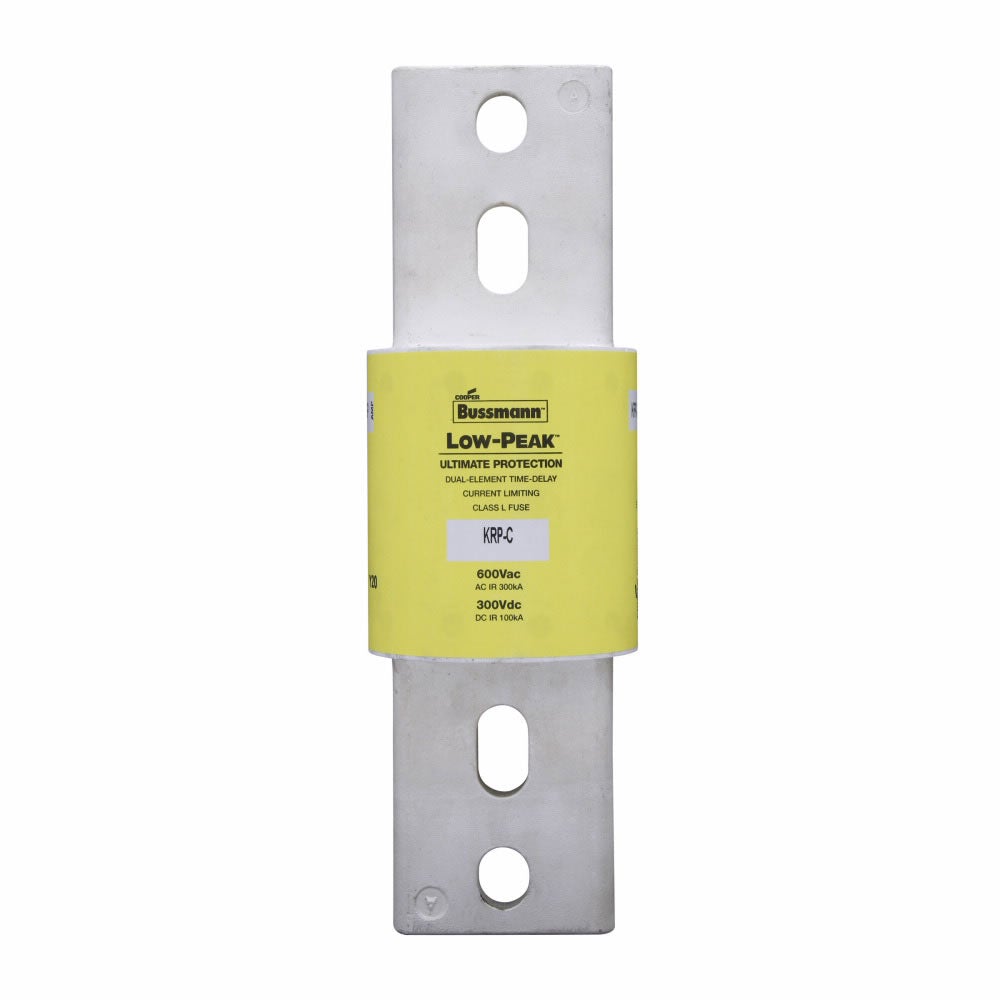

KRP-C-2000SP - Bussmann Class L 2000A Time-Delay Current-Limiting Fuse 600V AC/300V DC 300kA Interrupt

KRP-C-2000SP

KRP-C-2000SP is a Bussmann Class L, 2000A, time-delay, current-limiting fuse designed for high-capacity electrical systems requiring reliable overload and short-circuit protection. This fuse features a dual-element, melamine cartridge body with bolt-on knife blade terminals for secure mounting. It provides a minimum 4-second time-delay at 500% rated current, making it suitable for applications with high inrush currents. The KRP-C-2000SP is rated for 600V AC and 300V DC, with an interrupting rating of 300kA at 600V AC and 100kA at 300V DC. It is non-indicating and non-rejection, ensuring compatibility with standard fuse holders.

• Part Number: KRP-C-2000SP
• Manufacturer: Bussmann, Eaton
• Series: KRP-C
• Amperage Rating: 2000A
• Voltage Rating: 600V AC / 300V DC
• Interrupting Rating: 300kA AC / 100kA DC
• Class: Class L
• Mounting Type: Bolt-on, Knife Blade Terminal
• Response Time: 4 seconds minimum at 500% rated current
• Indicating: Non-indicating
• Rejection: Non-rejection
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-2000SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 2000
• AIC rating : 300kA@600V
• Diameter : 3.5
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605205
• GTIN : 00051712605205
• Country of Origin : Mexico
• Dimensions : 10.75 in x 3.53 in x 3.53 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
