Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KRP-C-1800SP

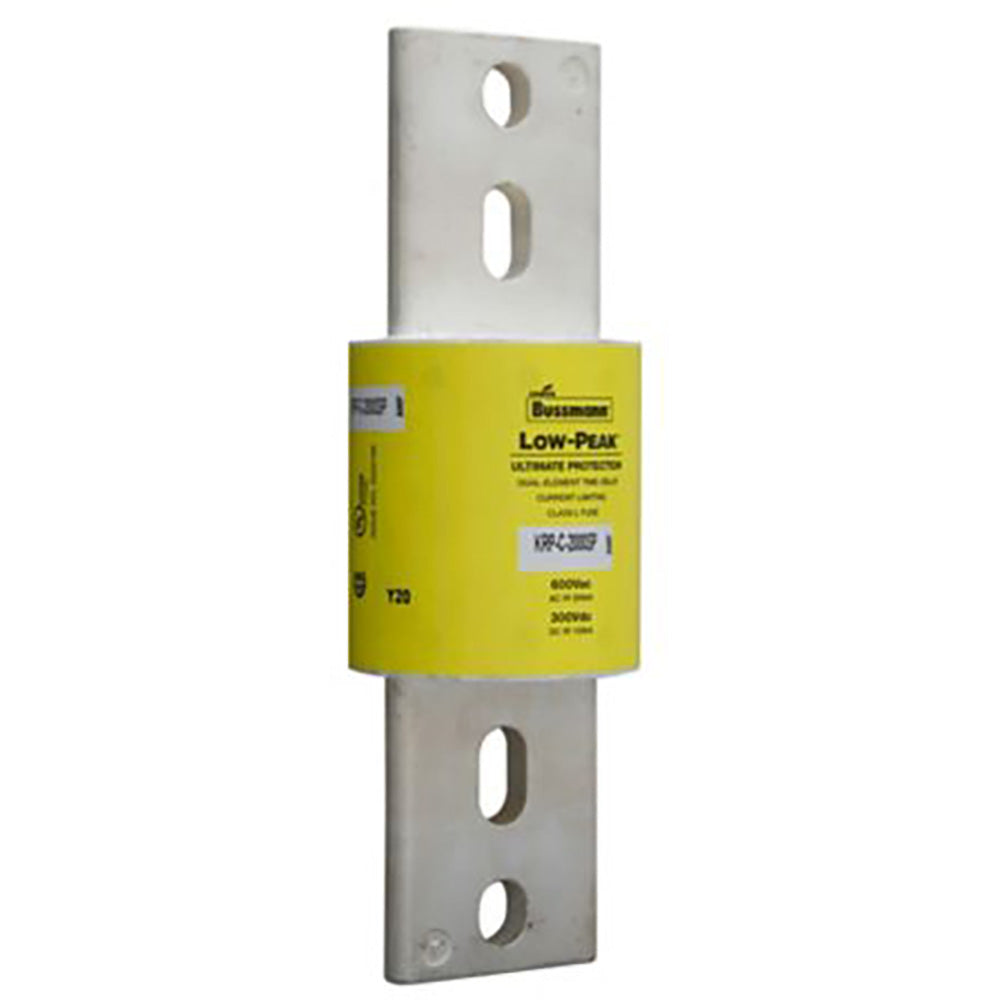

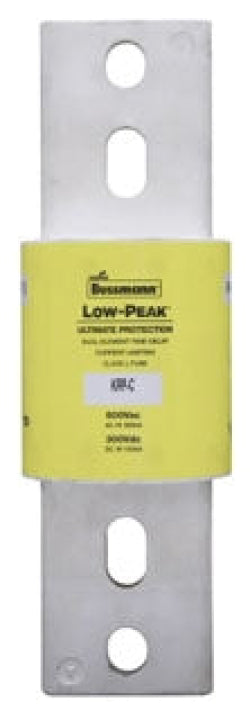

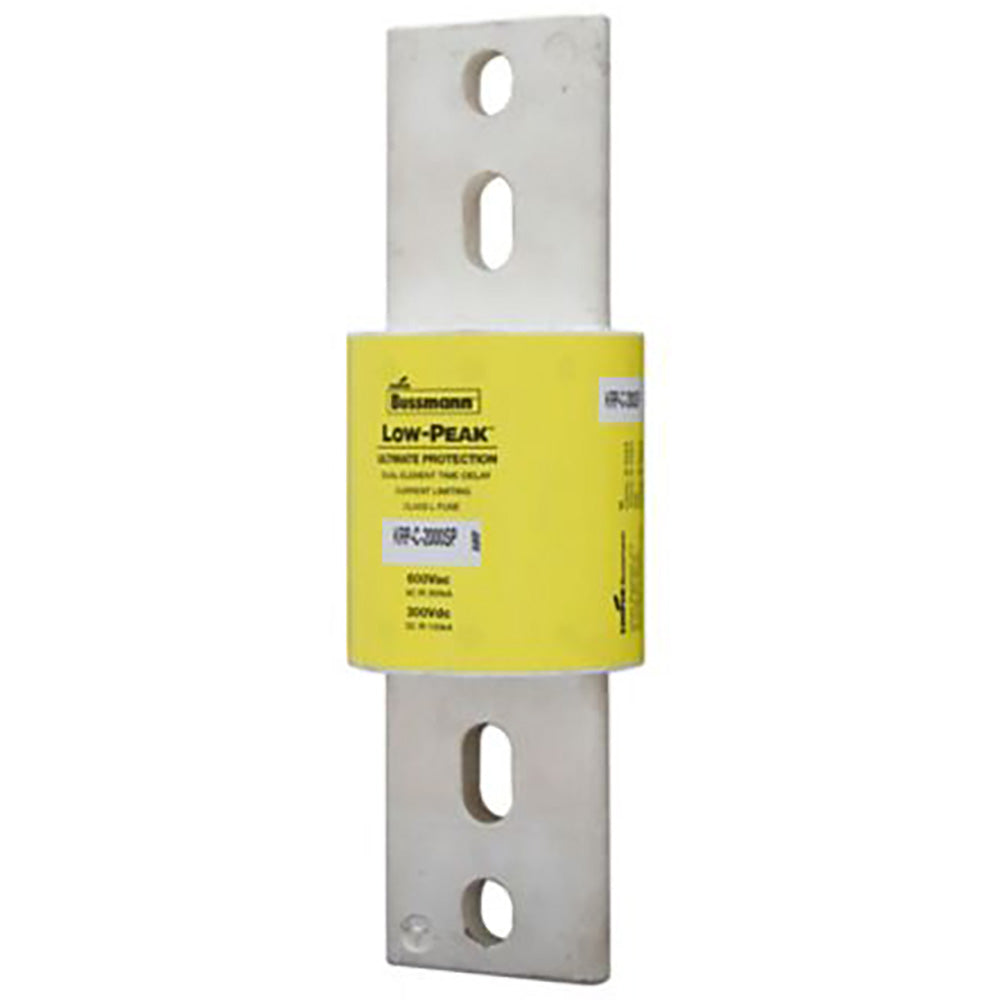

KRP-C-1800SP is a Bussmann Class L current-limiting time-delay fuse designed for high-amperage industrial power distribution applications. This fuse provides reliable protection with a 1800A current rating and 600VAC voltage rating, suitable for demanding electrical environments. The KRP-C-1800SP features a bolt-on mounting style, making it easy to install in compatible fuse blocks. It is a non-indicating, silver-linked, all-purpose fuse with a minimum time delay of 4 seconds at 500% of rated current. The fuse is current-limiting, helping to reduce let-through energy during fault conditions and protect downstream equipment.
- Amperage: 1800A
- Voltage: 600VAC
- Mounting Type: Bolt-On
- Interrupt Rating: 300kAIC at 600VAC
- Series/Frame: KRP-C
- Fuse Type: Class L, Current-Limiting, Time-Delay
- Physical Size: 3.5" diameter x 10.75" length
- Standards: UL Class L
- End Type: Bolted Blade x Bolted Blade
- Time Delay: Minimum 4 seconds at 500% current
- Application: Industrial Power Distribution
- Indicating: Non-Indicating
Specifications
- Part Number: KRP-C-1800SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : KRP-C
- Voltage : 600
- Amperage : 1800
- AIC rating : 300kA@600V
- Diameter : 3.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712605182
- GTIN : 00051712605182
- Country of Origin : Mexico
- Dimensions : 10.75 in x 3.53 in x 3.53 in (Length/Depth x Height x Width)
- Weight : 8.25
- Certification : UL, CSA, CE
