KRP-C-1600SP - Eaton Bussmann 1600A 600V Class L Time-Delay Current-Limiting Fuse

KRP-C-1600SP

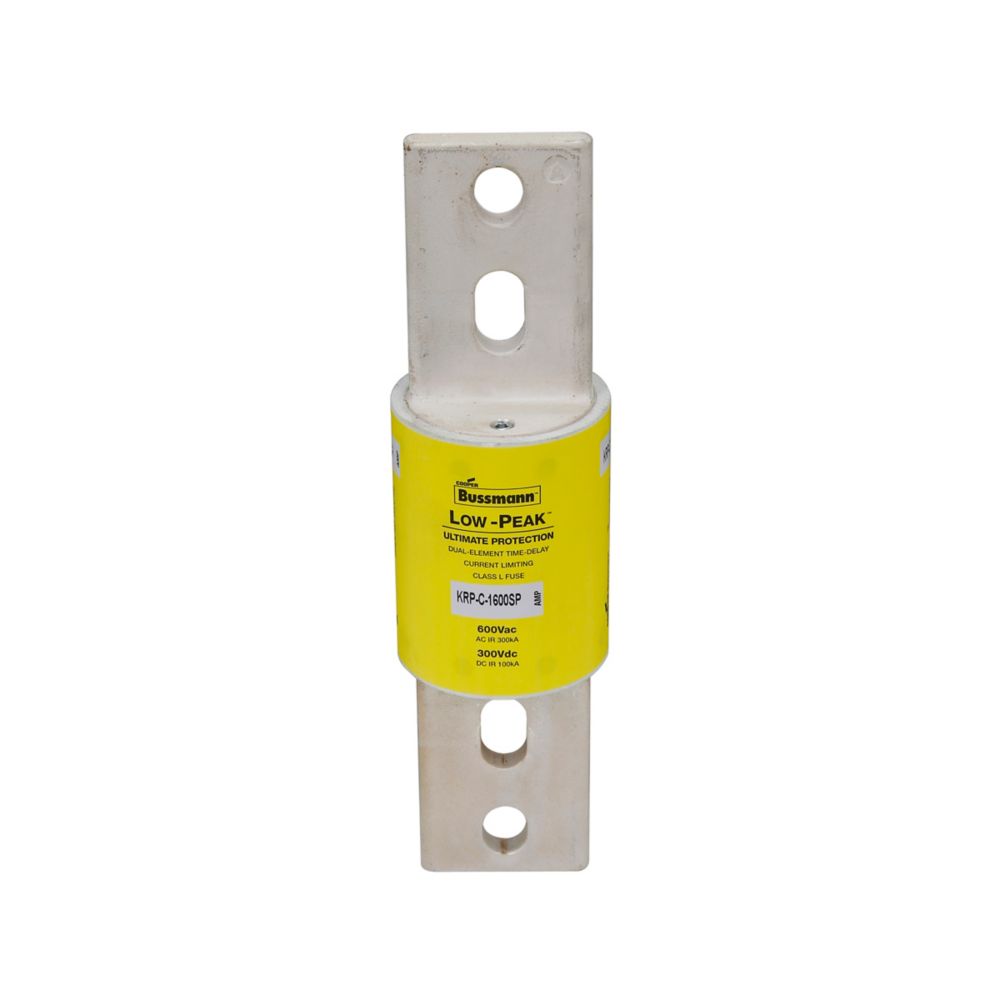

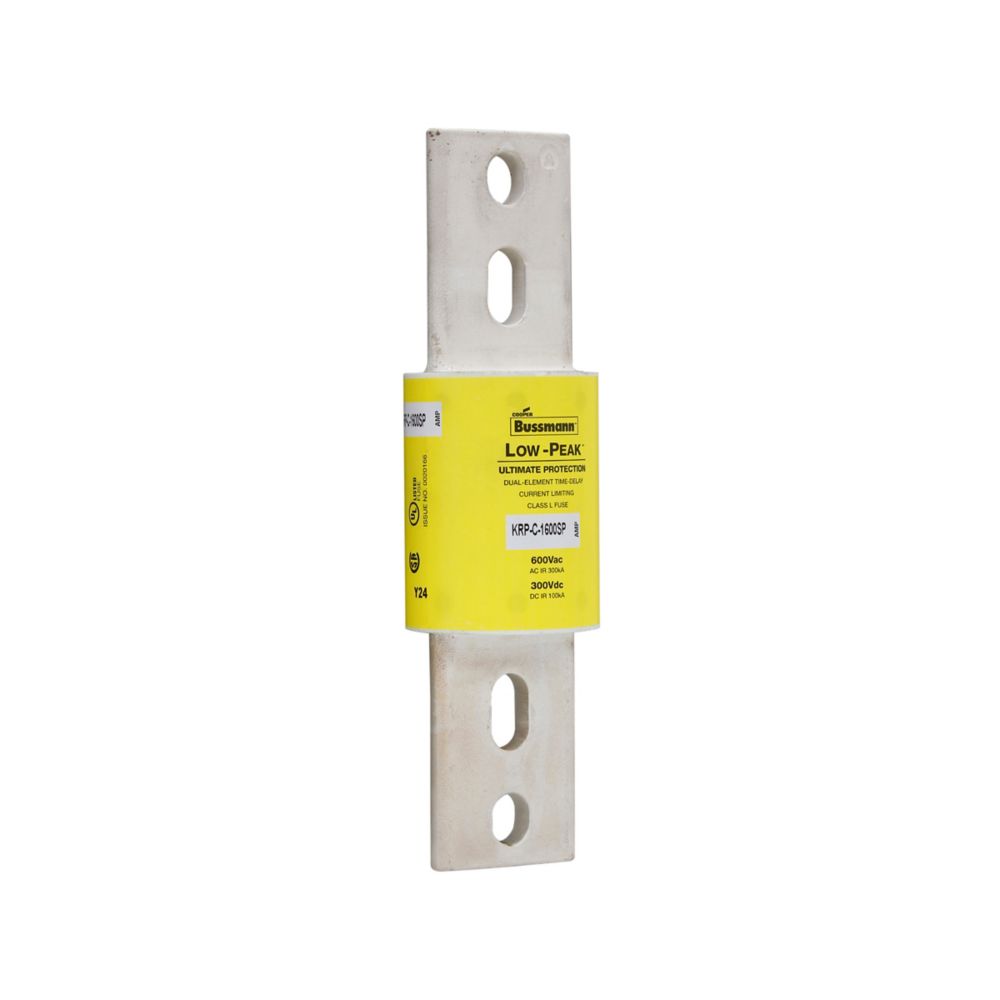

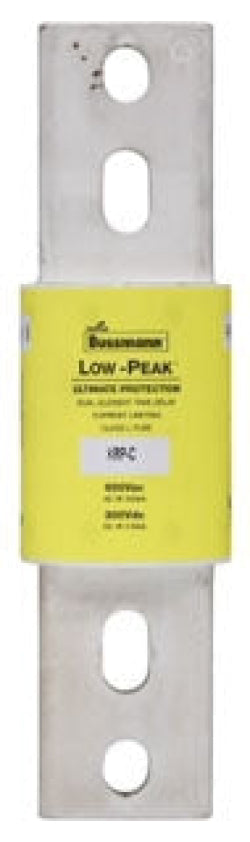

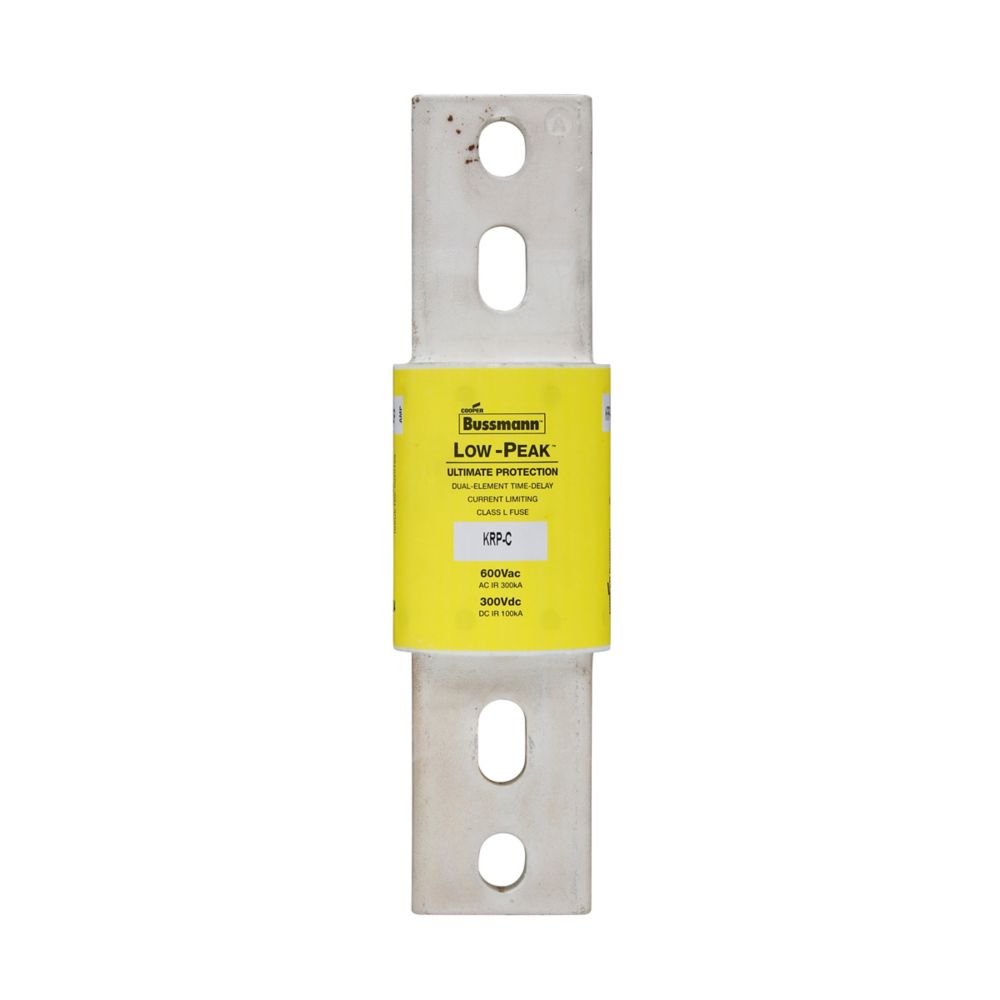

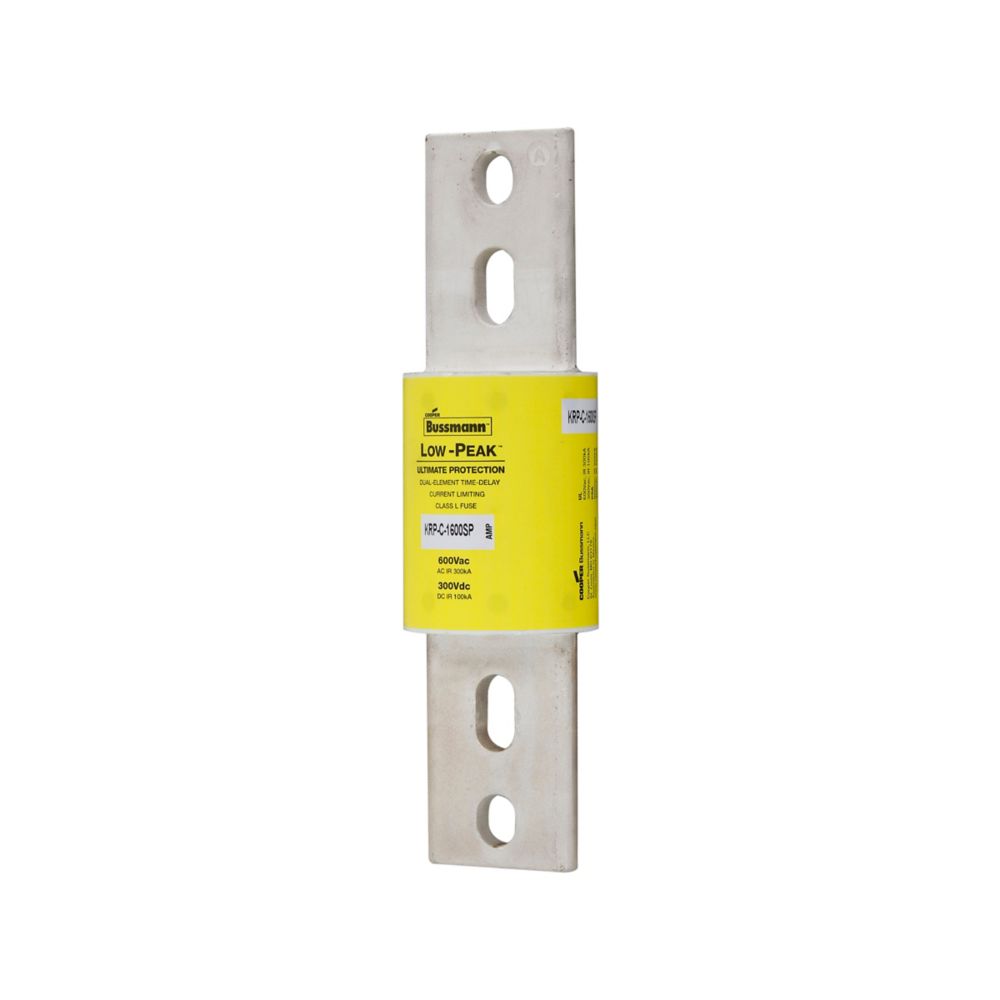

KRP-C-1600SP is a high-performance Eaton Bussmann Class L fuse designed for reliable overload and short circuit protection in high capacity electrical systems.This 1600 amp, 600 volt AC fuse features a time-delay current-limiting design with a minimum 4-second delay at 500% rated current. It has a bolted blade end x bolted blade end connection, non-indicating status, and a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC. The fuse measures 10.75 x 3.03 x 3.03 inches and weighs 5.72 lbs. It is UL Listed, CSA Certified, RoHS compliant, and CE marked.

Key Specifications
• Amperage: 1600 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Interrupt Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Dimensions (HxWxD): 10.75 x 3.03 x 3.03 inches
• Weight: 5.72 lbs
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1600SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1600
• AIC rating : 300kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605168
• GTIN : 00051712605168
• Country of Origin : Mexico
• Dimensions : 10.75 in x 3.03 in x 3.03 in (Length/Depth x Height x Width)
• Weight : 5.72
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
