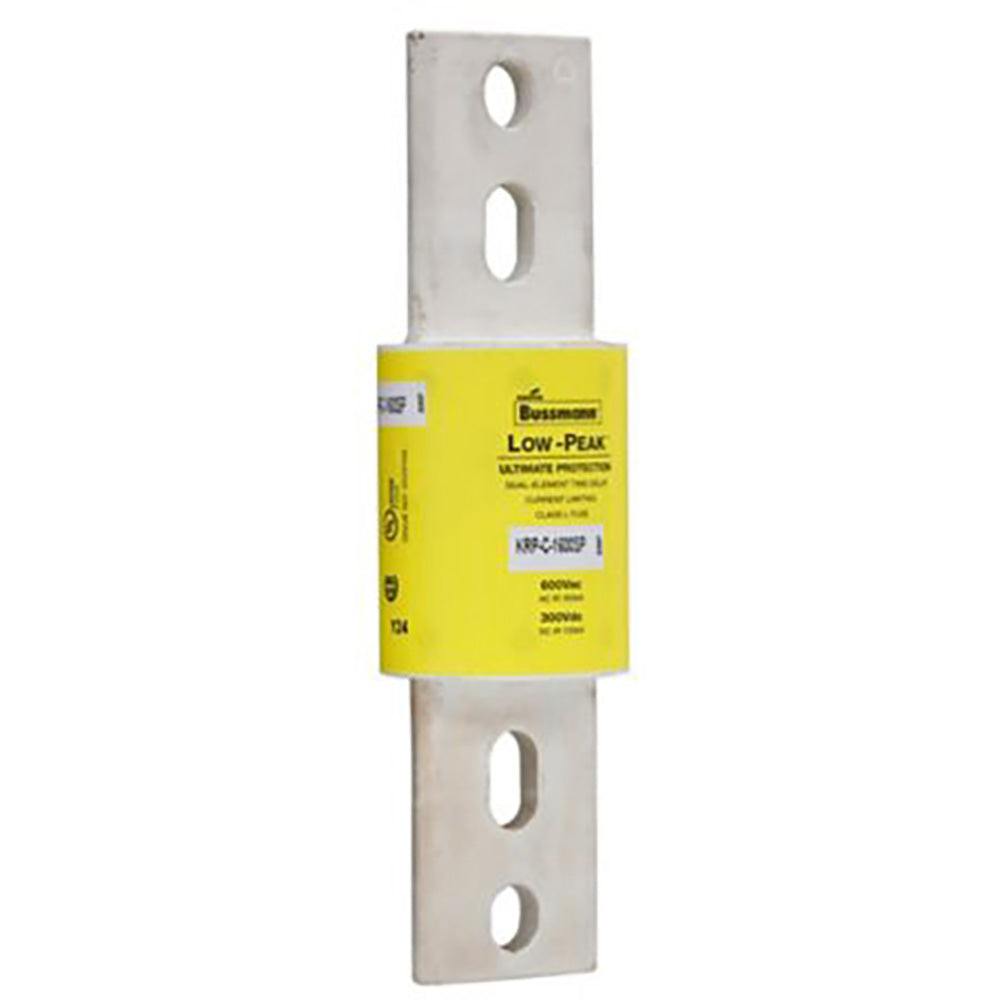

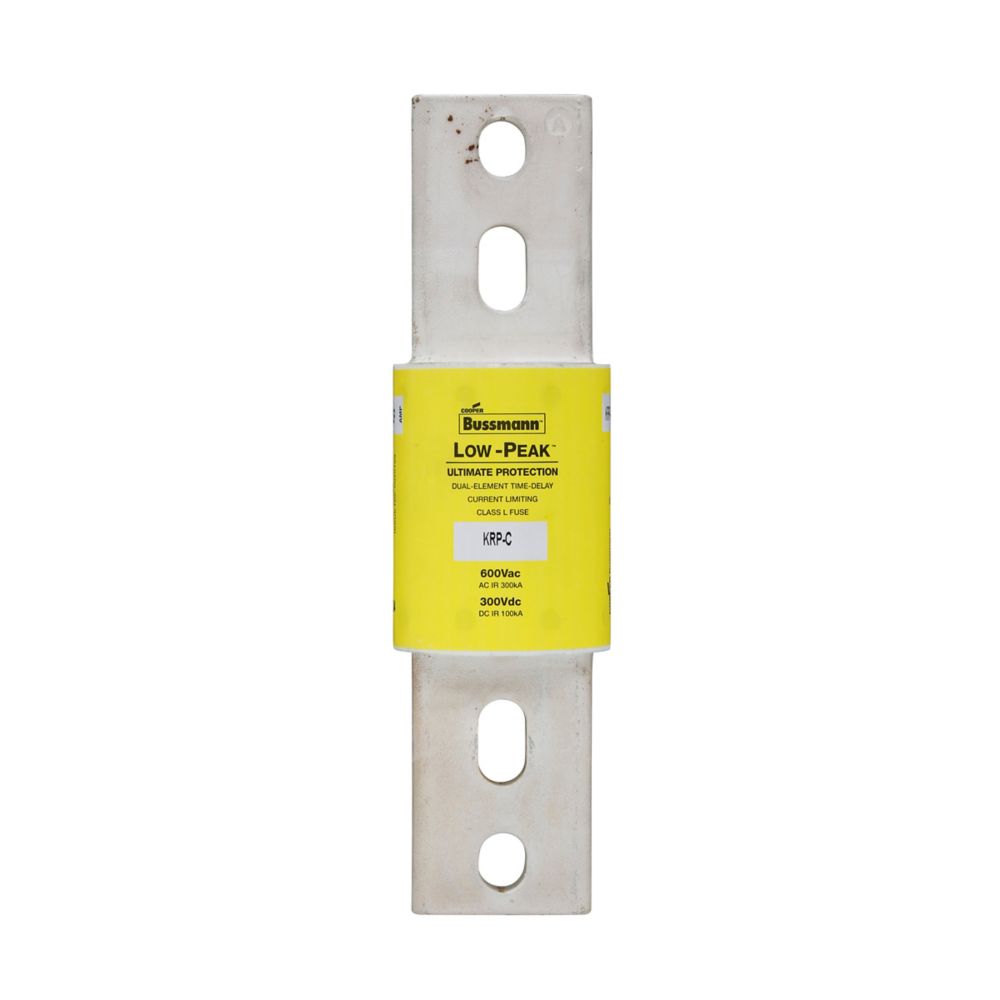

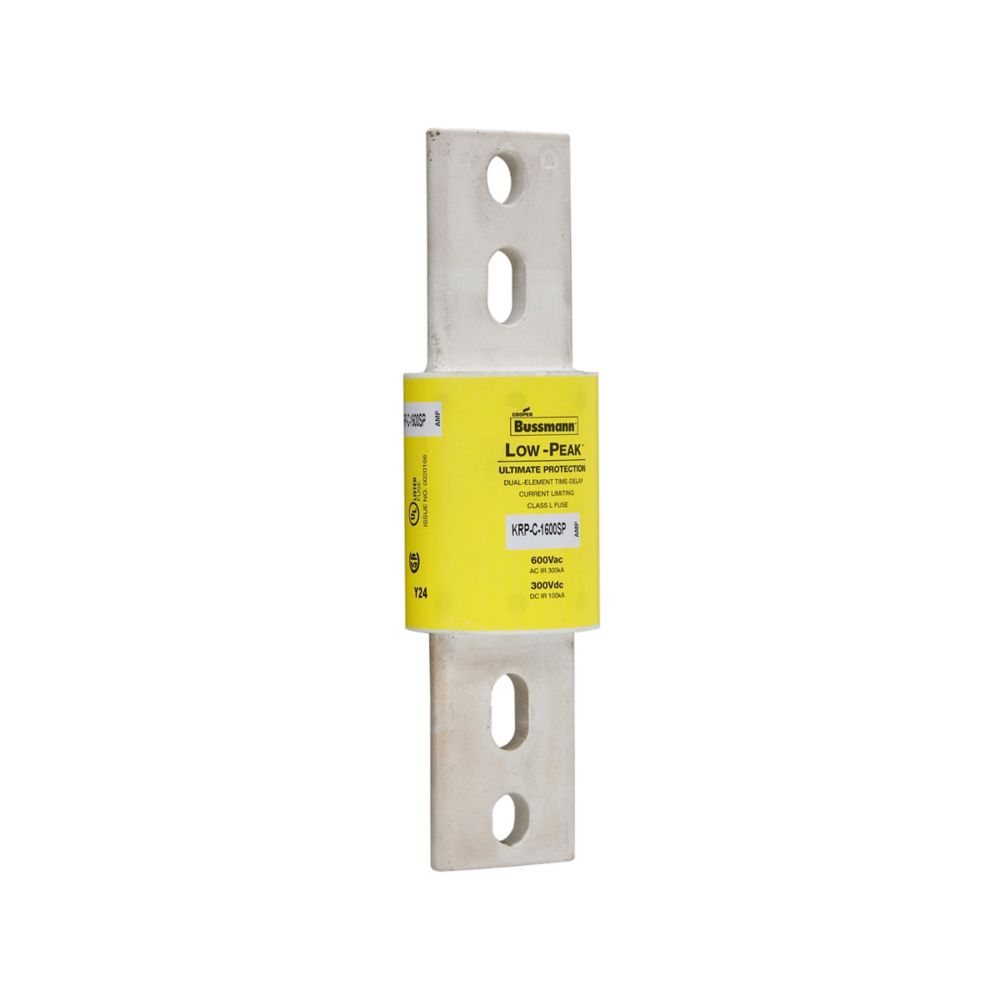

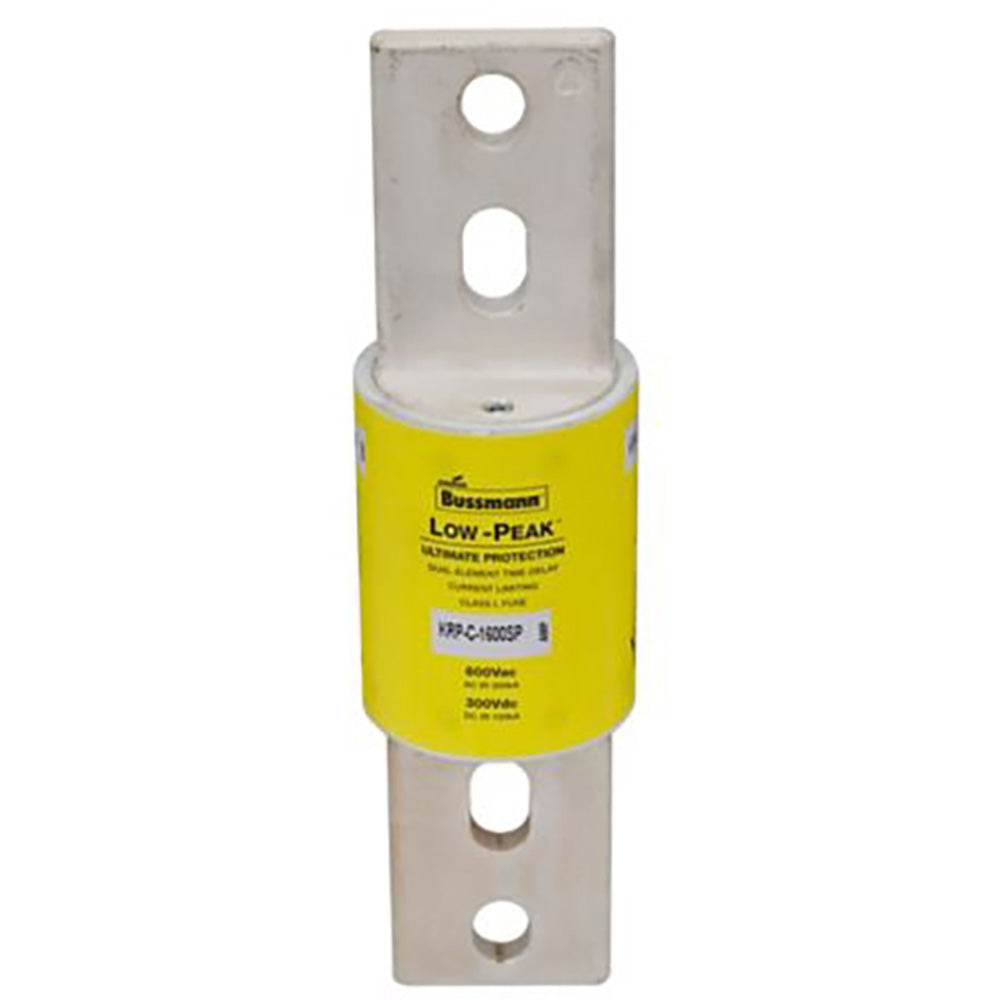

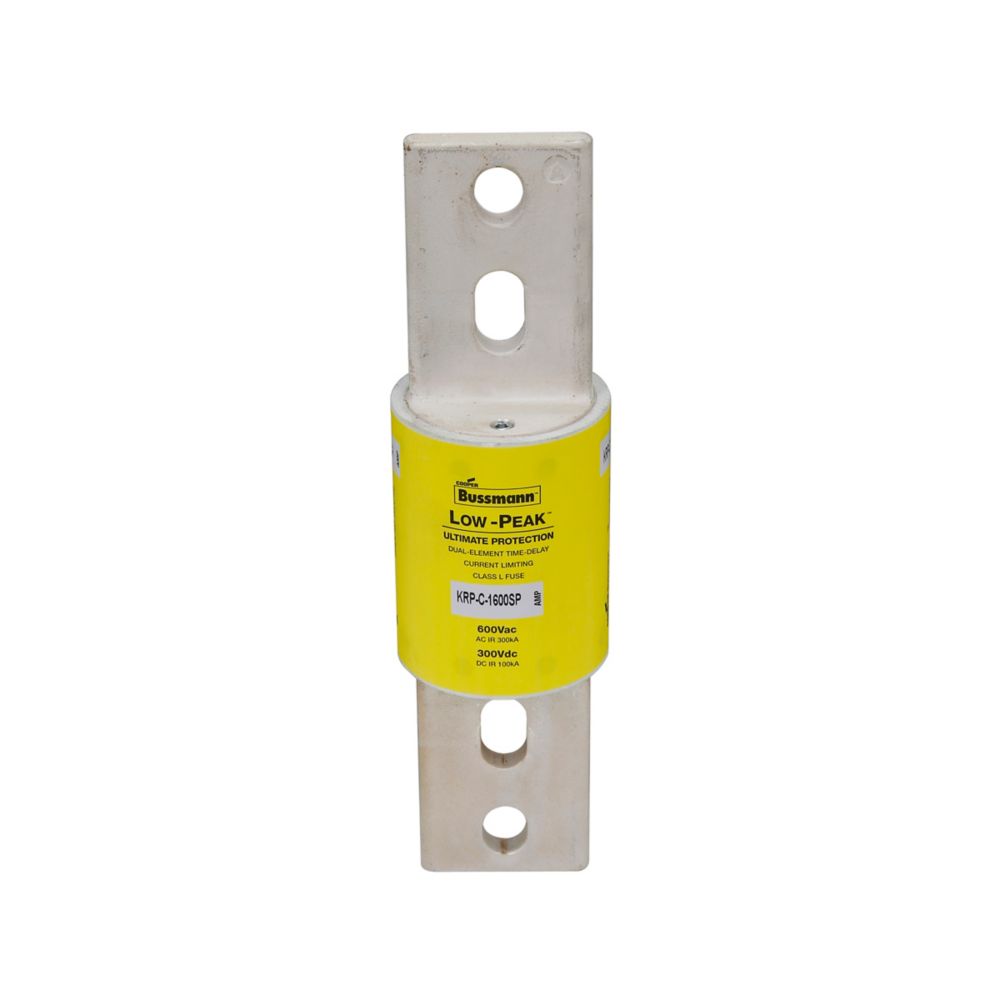

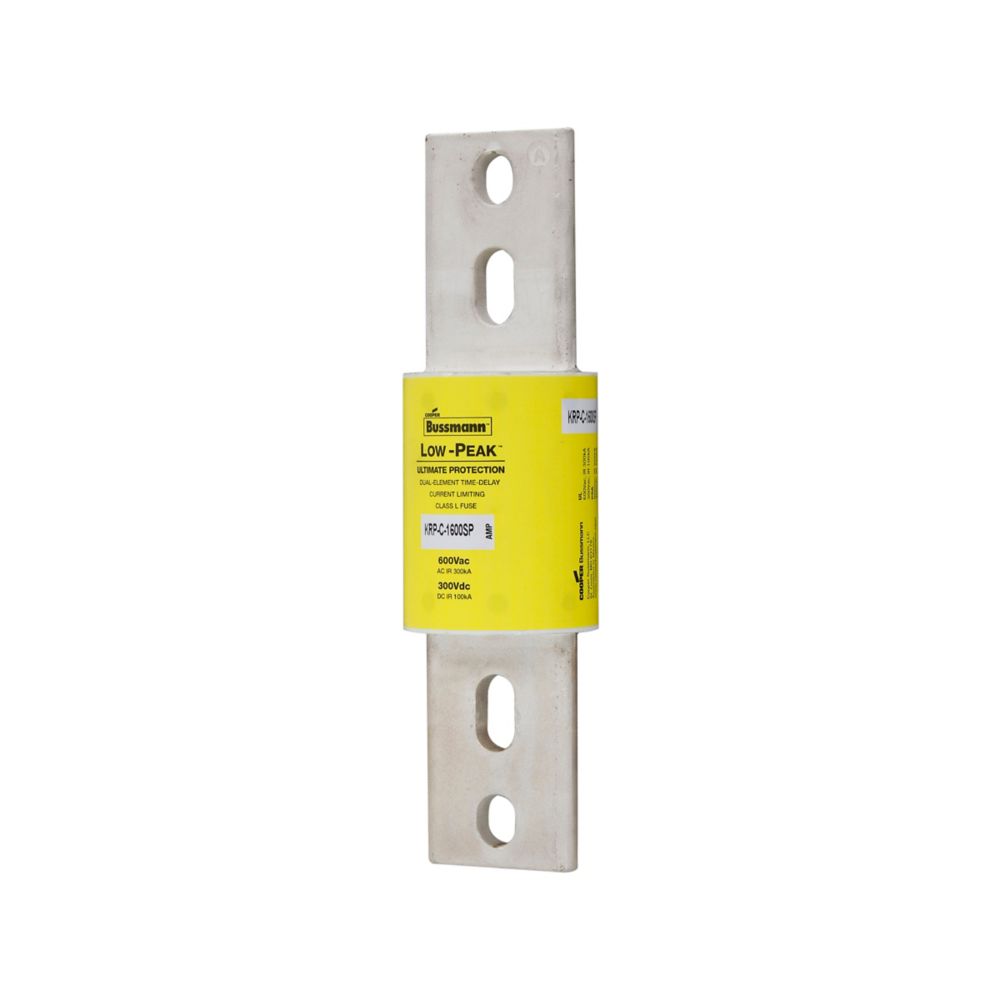

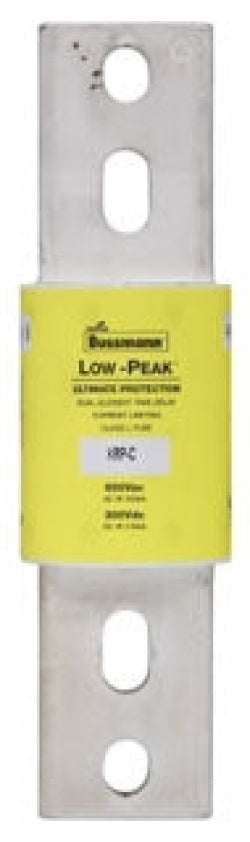

KRP-C-1500SP - Cooper Bussmann Eaton 1500A 600VAC 300VDC Time Delay Class L Fuse

KRP-C-1500SP

KRP-C-1500SP is a Cooper Bussmann Eaton Class L time-delay fuse rated for 1500 amps and 600 volts AC, designed for high capacity electrical protection.This KRP-C series fuse features current-limiting technology with a 4-second minimum time delay at 500% rated current, suitable for overload and short circuit protection. It has a center bolted mounting type, a 300kA interrupting rating at 600 VAC, and 100kA at 300 VDC. The fuse is non-indicating and complies with CE, CSA, and UL certifications, making it reliable for industrial applications.

Key Specifications
• Current Rating: 1500 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Type: Class L, Time Delay
• Interrupting Rating: 300kA @ 600 VAC, 100kA @ 300 VDC
• Mounting Type: Center Bolted
• Characteristic: Current Limiting, Time Delay (min 4 sec at 500% rated current)
• Trip Indicator: No
• Certifications: CE, CSA, UL Listed
• RoHS Compliant
• Physical Size: 3" x 10.75"
• Weight: 6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1500SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1500
• AIC rating : 300kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605151
• GTIN : 00051712605151
• Dimensions : 10.75 in x 3.03 in x 3.03 in (Length/Depth x Height x Width)
• Weight : 5.72
• Certification : UL, CSA, CE
