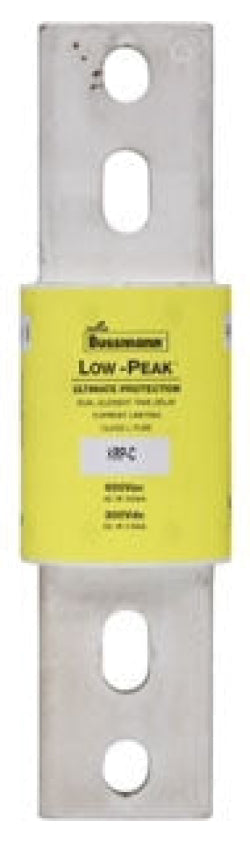

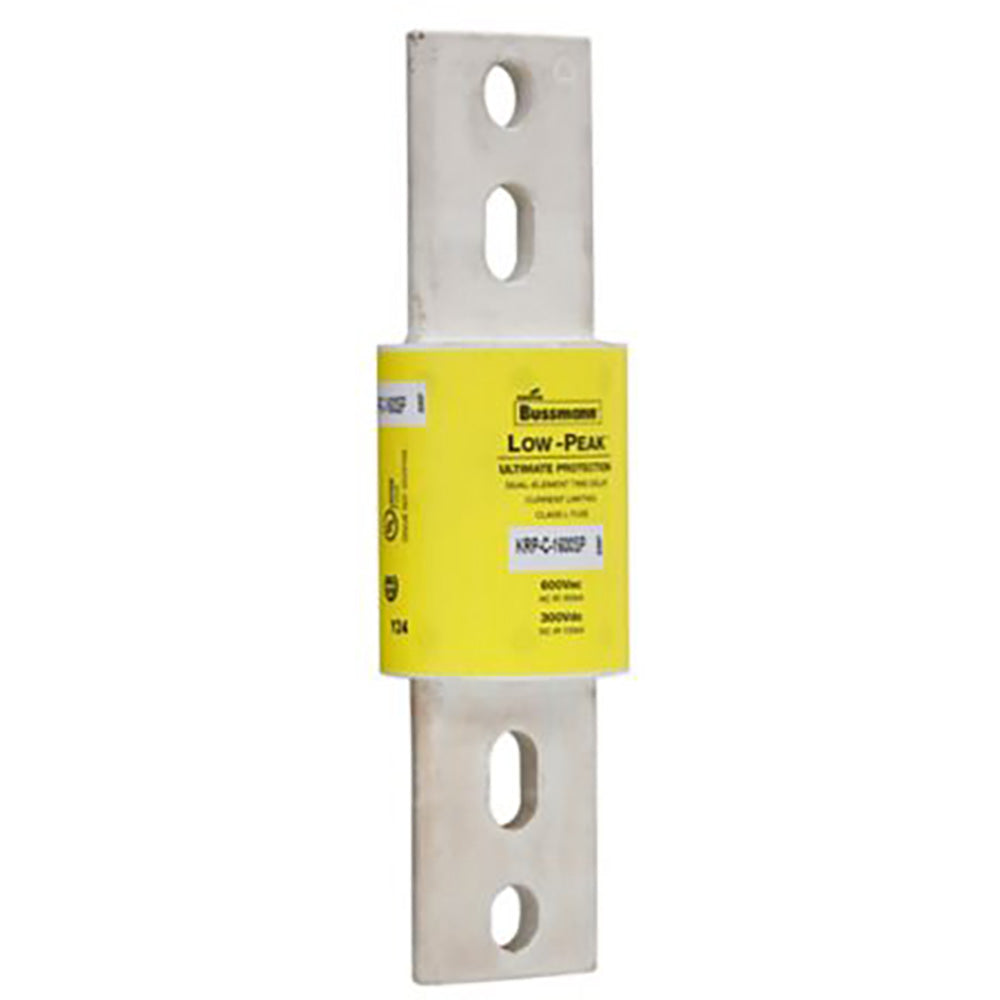

KRP-C-1400SP - Eaton Bussmann 1400A 600V Class L Time-Delay Fuse Current Limiting

KRP-C-1400SP

KRP-C-1400SP is a 1400 Amp, 600 Volt AC Class L time-delay fuse from Eaton Bussmann designed for high capacity system protection.This current-limiting fuse features a minimum 4-second time delay at 500% rated current, suitable for both overload and short circuit protection. It has a physical size of 3" x 10.75", UL Listed Special Purpose (Guide JFHR), and CSA Certified. The fuse offers an interrupting rating of 300,000 AIC at 600VAC and 100,000 AIC at 300VDC, ensuring reliable performance in demanding electrical environments.

Key Specifications
• Amperage: 1400 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: UL Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Current Limiting: Yes
• Interrupting Rating: 300,000 AIC @ 600VAC, 100,000 AIC @ 300VDC
• Physical Size: 3" x 10.75"
• Mounting Type: Cartridge style
• Certifications: UL Listed (Guide JFHR), CSA Certified (Class 1422-02)
• Series: Bussmann KRP-C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1400SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1400
• AIC rating : 300kA@600V
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605175
• GTIN : 00051712605175
• Dimensions : 10.75 in x 3.03 in x 3.03 in (Length/Depth x Height x Width)
• Weight : 0.167
• Certification : UL, CSA, CE
