KRP-C-1200SP - Eaton Bussmann 1200A 600V AC Class L Time-Delay Current-Limiting Fuse

KRP-C-1200SP

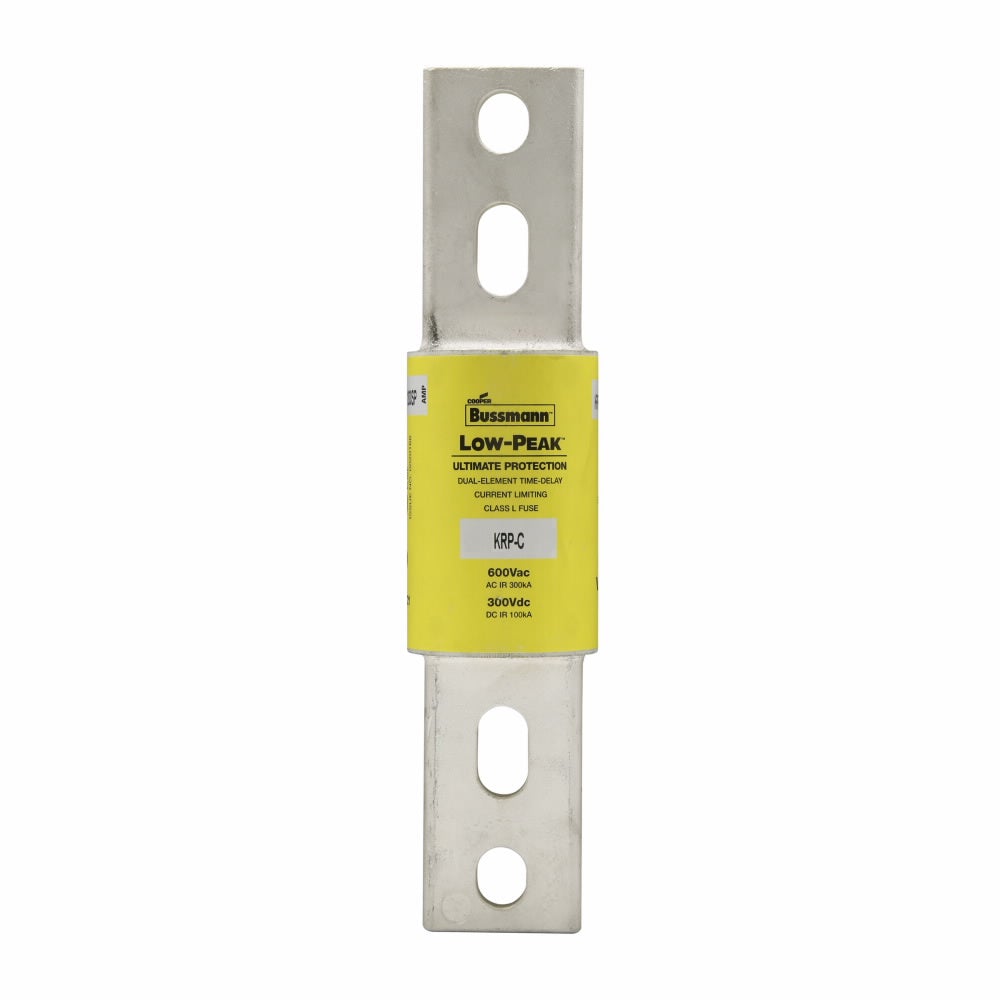

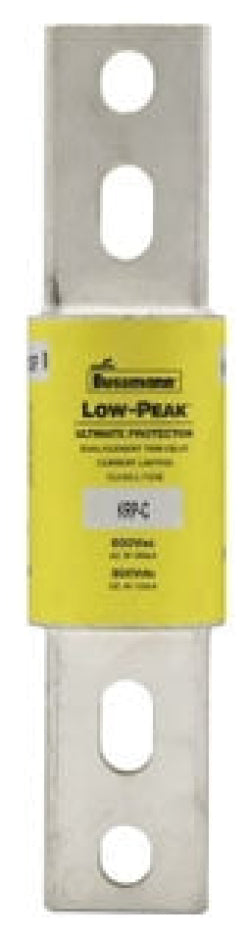

KRP-C-1200SP is a 1200 Amp, 600 Volt AC Class L time-delay current-limiting fuse from Eaton Bussmann designed for high capacity electrical protection.This fuse features a time-delay of minimum 4 seconds at 500% rated current, current-limiting capability, and a bolted blade end mounting type. It has an interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC, suitable for overload and short circuit protection. The fuse body measures approximately 2.5 inches in diameter by 10.75 inches in length and is UL Listed and CSA Certified.

Key Specifications
• Amperage: 1200 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: L
• Time Delay: Minimum 4 seconds at 500% rated current
• Current Limiting: Yes
• Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
• Mounting Type: Bolted blade end x bolted blade end
• Body Size: 2.5 in diameter x 10.75 in length
• Certifications: UL Listed (Guide JFHR, File E56412), CSA Certified (Class 1422-02, File 53787)
• Series: Bussmann KRP-C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1200SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1200
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605120
• GTIN : 00051712605120
• Country of Origin : Mexico
• Dimensions : 10.75 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
