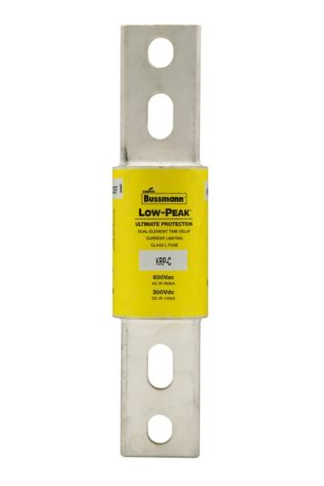

KRP-C-1200SP - Cooper Bussmann Eaton 1200A 600V AC 300V DC Class L Time-Delay Current Limiting Fuse

KRP-C-1200

KRP-C-1200SP is a Class L time-delay current limiting fuse rated for 1200 amps, 600 volts AC, and 300 volts DC. It provides reliable overload and short circuit protection for high capacity electrical systems.KRP-C-1200SP features a minimum 4-second time delay at 500% rated current, a 300,000 AIC interrupting rating at 600 VAC, and 100,000 AIC at 300 VDC. It is UL listed for special purpose and CSA certified, designed with a cartridge body and bolted blade ends for secure mounting.

Key Specifications
• Amperage: 1200A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
• Current Limiting: Yes
• Mounting Type: Cartridge body with bolted blade ends
• Certifications: UL Listed (Special Purpose), CSA Certified
• Physical Size: Approximately 2.5" x 10.75"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1200
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605120
• GTIN : 00051712605120
• Weight : 5
