KRP-C-1000SP - Bussmann 1000A 600V AC Class L Time Delay Fuse

KRP-C-1000SP

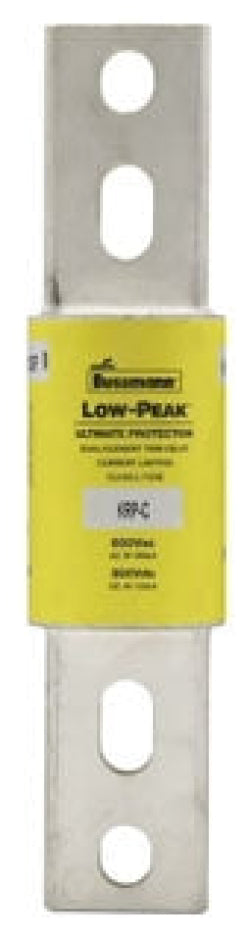

KRP-C-1000SP is a Bussmann Class L time-delay fuse rated for 1000 amps and 600 volts AC, designed for high capacity circuit protection.This fuse features a current-limiting design with a minimum 4-second time delay at 500% rated current, suitable for both overload and short circuit protection. It has an interrupting rating of 300,000 AIC RMS at 600 VAC and 100,000 AIC at 300 VDC. The fuse is UL Listed (Special Purpose, Guide JFHR) and CSA Certified, with a physical size of 2.5 inches by 10.75 inches.

Key Specifications
• Amperage: 1000 A
• Voltage Rating: 600 V AC / 300 V DC
• Fuse Class: UL Class L
• Time Delay: Minimum 4 seconds at 500% rated current
• Current Limiting: Yes
• Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
• Physical Size: 2.5" x 10.75"
• Certifications: UL Listed, CSA Certified
• Mounting Type: Cartridge fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KRP-C-1000SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : KRP-C
• Voltage : 600
• Amperage : 1000
• AIC rating : 300kA@600V
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712605106
• GTIN : 00051712605106
• Country of Origin : Mexico
• Dimensions : 10.75 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-10 Guide JFHR/CSA Class 1422-02
