Product Info
- Manufacturer:Burndy
Description

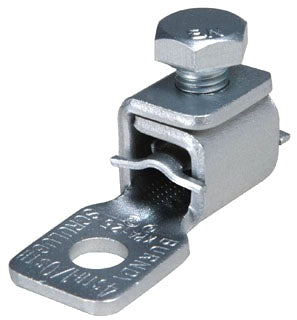

KPA4CTP
KPA4CTP is a high-quality copper terminal designed for joining a wide range of copper cables to equipment pads or terminal blocks. This terminal features a compact, one-piece design for reliable and long-lasting connections. The KPA4CTP terminal is constructed from high-conductivity copper alloy and is tin-plated for durability and corrosion resistance. It accommodates #14 AWG solid to #4 AWG stranded copper conductors and fits a 1/4" stud. The terminal is easy to install with a slot Robertson screw and hex socket bolt, eliminating the need for special tools and reducing the risk of over-torquing or conductor damage.
- Connector Type: Terminal
- Material: Copper Alloy
- Finish: Tin Plated
- Number of Holes: 1
- Stud Size: 1/4"
- Conductor Size: #14 AWG Solid to #4 AWG Stranded
- Installation Torque: 45 in-lb
- Pad Width: 0.50 in
- Strip Length: 9/16 in
- Height: 1 in
- Length: 1.28 in
- Weight: 0.0400 lb
Specifications
- Part Number: KPA4CTP
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810802731
- GTIN : 00781810802731
- Country of Origin : Mexico
- Dimensions : 1.0 in x 1.28 in x
- Weight : 5.19
- Certification : CSA Certified, UL Listed
