Product Info
- Manufacturer:Burndy
Description
KPA4C

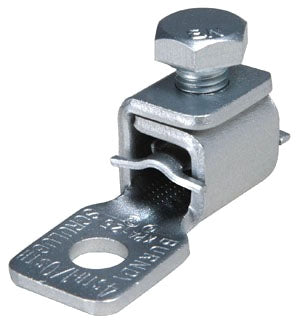

KPA4C is a mechanical pressure bar style copper lug designed for secure electrical connections with copper conductors.
This tin-plated high copper alloy terminal features a 1-hole design compatible with 1/4 inch studs and supports conductor sizes from 14 AWG solid to 4 AWG stranded copper. It is ideal for joining a wide range of cables to equipment pads or terminal blocks, especially in light industrial applications. The lug includes one screw for fastening and is engineered for durability and reliable conductivity.
- Key Specifications
- Conductor Size: 14 AWG solid to 4 AWG stranded copper
- Connector Type: Mechanical pressure bar style lug
- Stud Size: 1/4 inch
- Number of Holes: 1
- Material: Tin-plated high copper alloy
- Mounting: 1 bolt hole with screw included
- Application: Suitable for light industrial and general electrical connections
- Country of Origin: USA
- Temperature Rating: Maximum operating temperature approx. 194°F
- Part Number: KPA4C
- Manufacturer : Burndy
- Brand : Burndy
- UPC : 781810351352
- GTIN : 781810351352
- Country of Origin : United States
- Dimensions : 0.94 in x 1.21 in x
- Weight : 5.19
- Certification : CSA Certified, UL Listed
