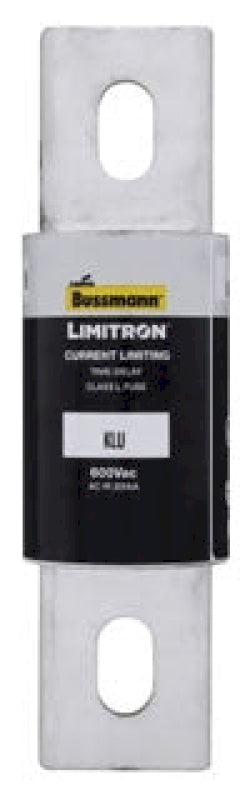

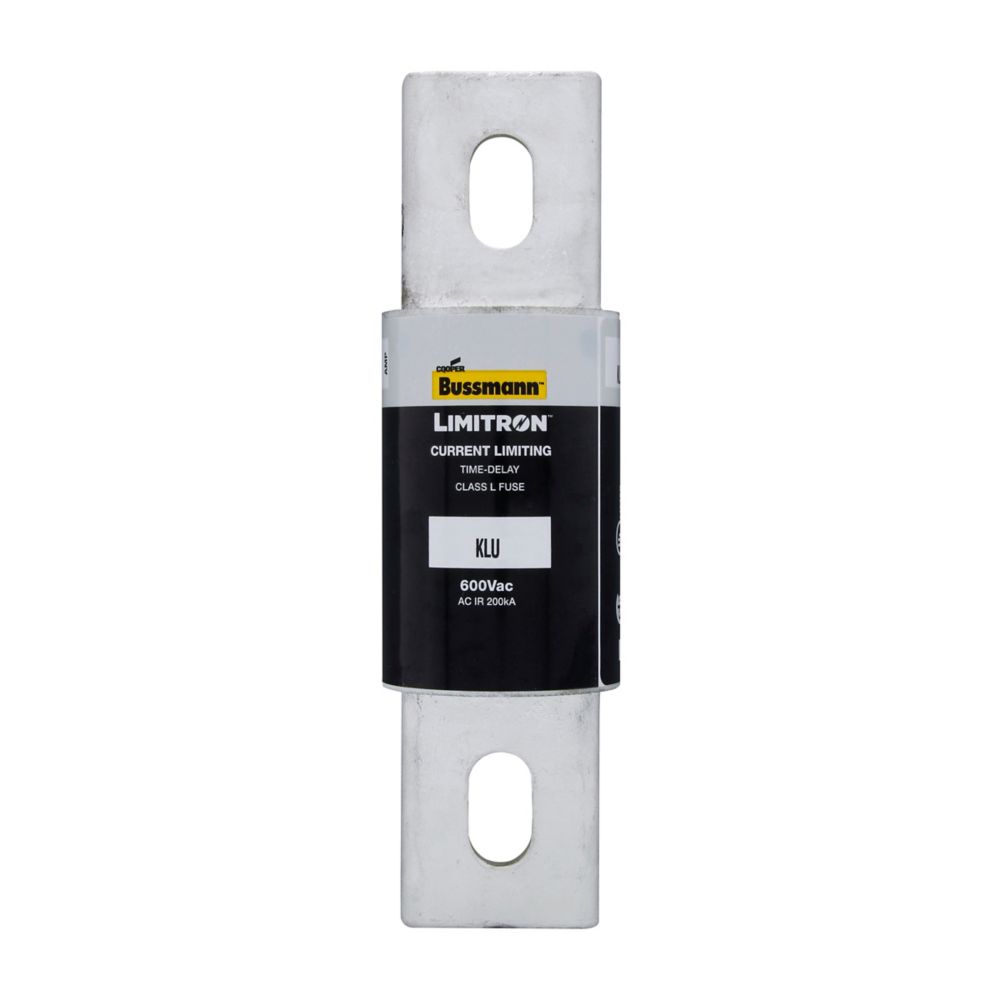

KLU-700 - Eaton Bussmann Series Class L 700A 600Vac Time-Delay Fuse, 200kAIC, Bolted Blade End

KLU-700

KLU-700 is a Bussmann Series Class L time-delay fuse designed for high-current branch circuit protection in industrial and commercial applications. This fuse features a 700A current rating, 600Vac voltage rating, and a 200kA interrupting rating, making it suitable for demanding electrical environments. The bolted blade end design ensures secure mounting and reliable connections. The KLU-700 is a non-indicating, current-limiting fuse with a time-delay characteristic of 5 seconds at 500% of rated current. It is constructed for durability and safety in Class L applications, providing effective protection against overloads and short circuits. The fuse is designed for use in fuse blocks and switchgear requiring high interrupting capacity.

• Part Number: KLU-700
• Manufacturer: Eaton
• Series: Bussmann Series
• Class: L
• Current Rating: 700A
• Voltage Rating: 600Vac
• Interrupting Rating: 200kAIC
• Mounting Type: Bolted Blade End
• Fuse Type: Time-Delay / Slow Blow
• Application: Branch Circuit Protection
• Indicating: Non-Indicating
• Standards: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLU-700
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : KLU
• Voltage : 600
• Amperage : 700
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712135047
• GTIN : 00051712135047
• Country of Origin : Mexico
• Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 3.75
• Certification : CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
