Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KLU-650

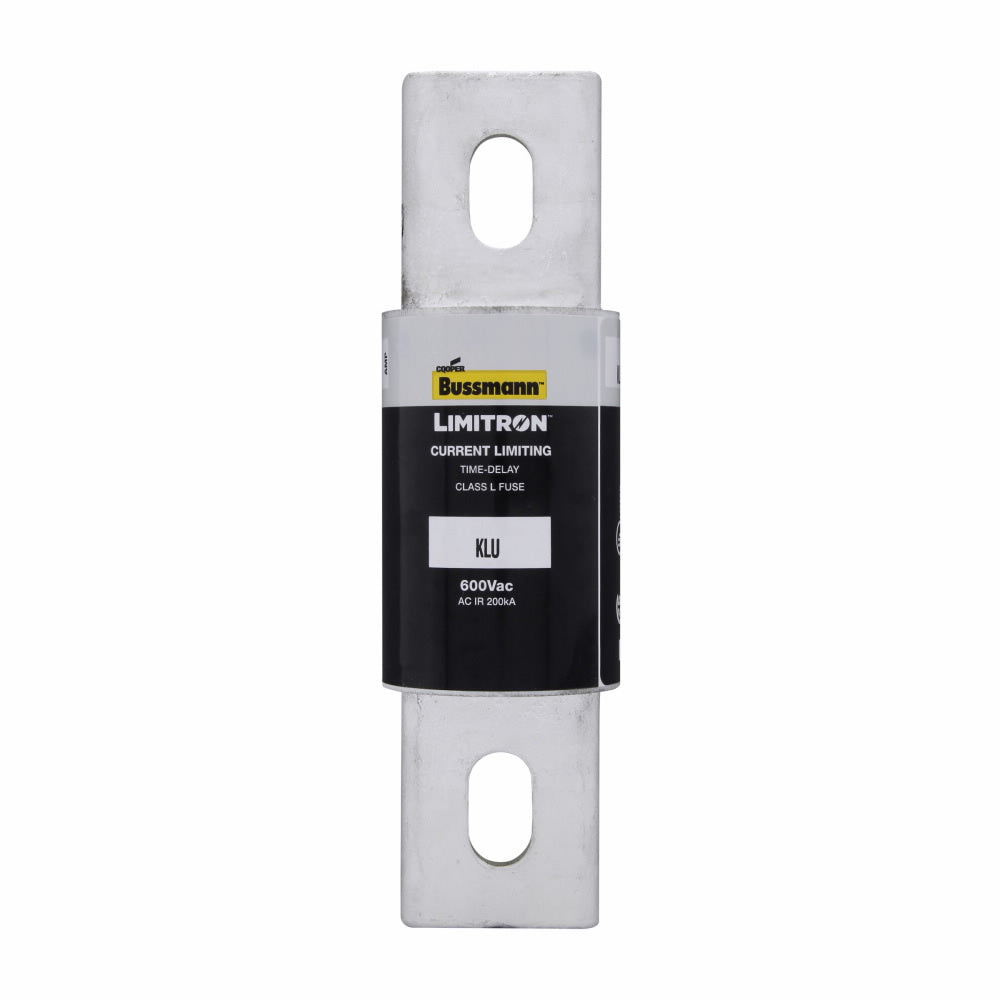

KLU-650 is a Bussmann Eaton Class L time delay fuse rated for 650 amps and 600 VAC, designed for bolt-on mounting applications.
This fuse features a time-delay characteristic to allow temporary overloads without blowing, providing protection against short circuits and overloads in electrical systems. It has a bolted blade end connection style and a high interrupt rating of 200kA RMS symmetrical, meeting UL 248-10 standards for Class L fuses. The fuse body is cartridge style, suitable for branch circuit protection in industrial and commercial power distribution.
- Key Specifications
- Amperage: 650 Amps
- Voltage Rating: 600 VAC
- Fuse Type: Time Delay (Slow Blow)
- Interrupt Rating: 200kA RMS Symmetrical
- Mounting Type: Bolt-On (Bolted Blade End)
- Series: Bussmann KLU Class L
- Body Style: Cartridge Blade Fuse
- Standards: UL Listed, Std. 248-10, Class L
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLU-650
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 650
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 005171213503
- GTIN : 00051712135030
- Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.75
