Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

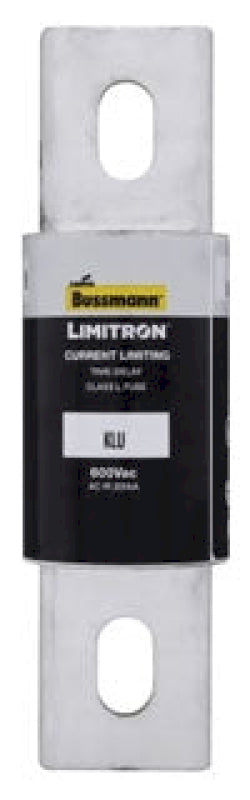

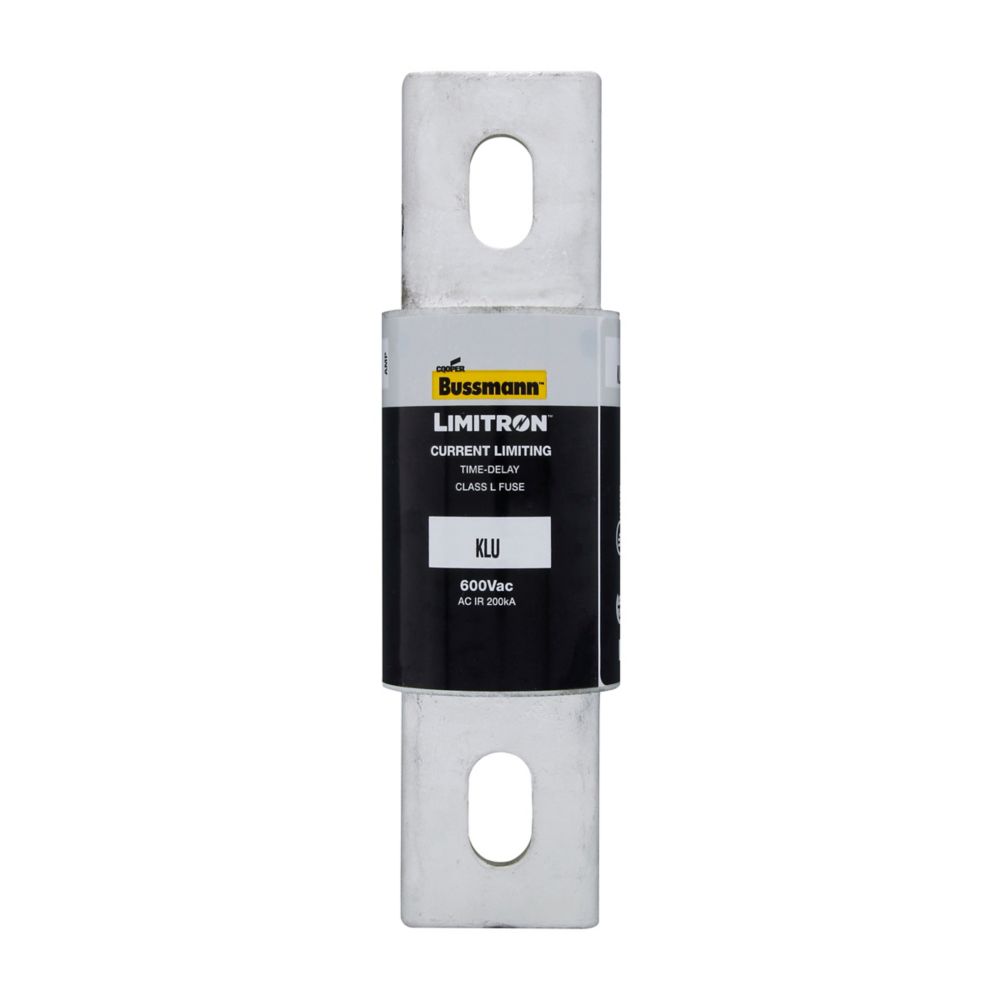

KLU-601
KLU-601 is a 601A, 600V Class L time-delay fuse from the Eaton Bussmann Series, designed for high interrupting applications with bolt mounting and current-limiting protection. This fuse provides reliable circuit protection for industrial and commercial power distribution systems, featuring a 200kA interrupting rating and a 5-second time delay at 500% of rated current. It is suitable for use in applications requiring robust, current-limiting performance and is CE marked and RoHS compliant.
- Part Number: KLU-601
- Manufacturer: Eaton Bussmann Series
- Amperage Rating: 601A
- Voltage Rating: 600V
- Interrupt Rating: 200kAIC
- Mounting Type: Bolt
- Series/Frame: Class L
- Response Time: 5 seconds at 500% rated current
- Connection: Bolted blade end
- Fuse Indicator: Non-indicating
- Compliance: CE Marked, RoHS Compliant
- Special Features: Current-limiting, time-delay
Specifications
- Part Number: KLU-601
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KLU
- Voltage : 600
- Amperage : 601
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712135023
- GTIN : 00051712135023
- Country of Origin : Mexico
- Dimensions : 8.63 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.496
- Certification : CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
