KLU-4000 - Bussmann Eaton 4000A 600V Class L Time-Delay Bolt Mount Fuse 200kA Interrupt Rating

KLU-4000

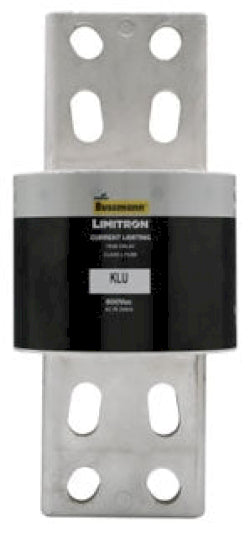

KLU-4000 is a Bussmann Eaton Class L time-delay fuse rated for 4000 amps and 600 volts AC with a bolt mount design.This KLU-4000 fuse features a 5-second minimum time delay at 500% rated current, current limiting capability, and a high interrupting rating of 200,000 AIC at 600 VAC and 50,000 AIC at 340 VDC. It is UL Listed (Std. 248-10, Guide JDDZ, File E4273) and CSA Certified (Class 1422-02, File 53787). The fuse measures approximately 5.75 inches in diameter by 10.75 inches in length and is designed for use in large distribution switchboards and power panelboards.

Key Specifications
• Amperage: 4000A
• Voltage Rating: 600 VAC
• Fuse Class: L
• Time Delay: Minimum 5 seconds at 500% rated current
• Interrupting Rating: 200,000 AIC at 600 VAC, 50,000 AIC at 340 VDC
• Mounting Type: Bolt mount
• Dimensions: 5.75" diameter x 10.75" length
• UL Listed and CSA Certified
• Current Limiting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KLU-4000
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KLU
• Voltage : 600
• Amperage : 4000
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 5.75
• Class Rating : L
• Barrels : 1



Product Data

• UPC : 051712497046
• GTIN : 00051712497046
• Dimensions : 10.75 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 22.15
