Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KLU-3000

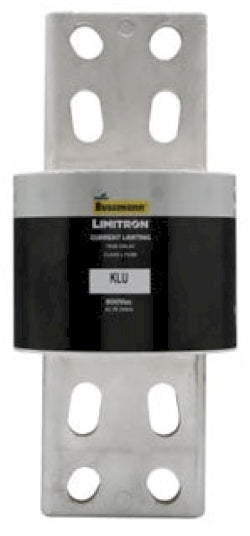

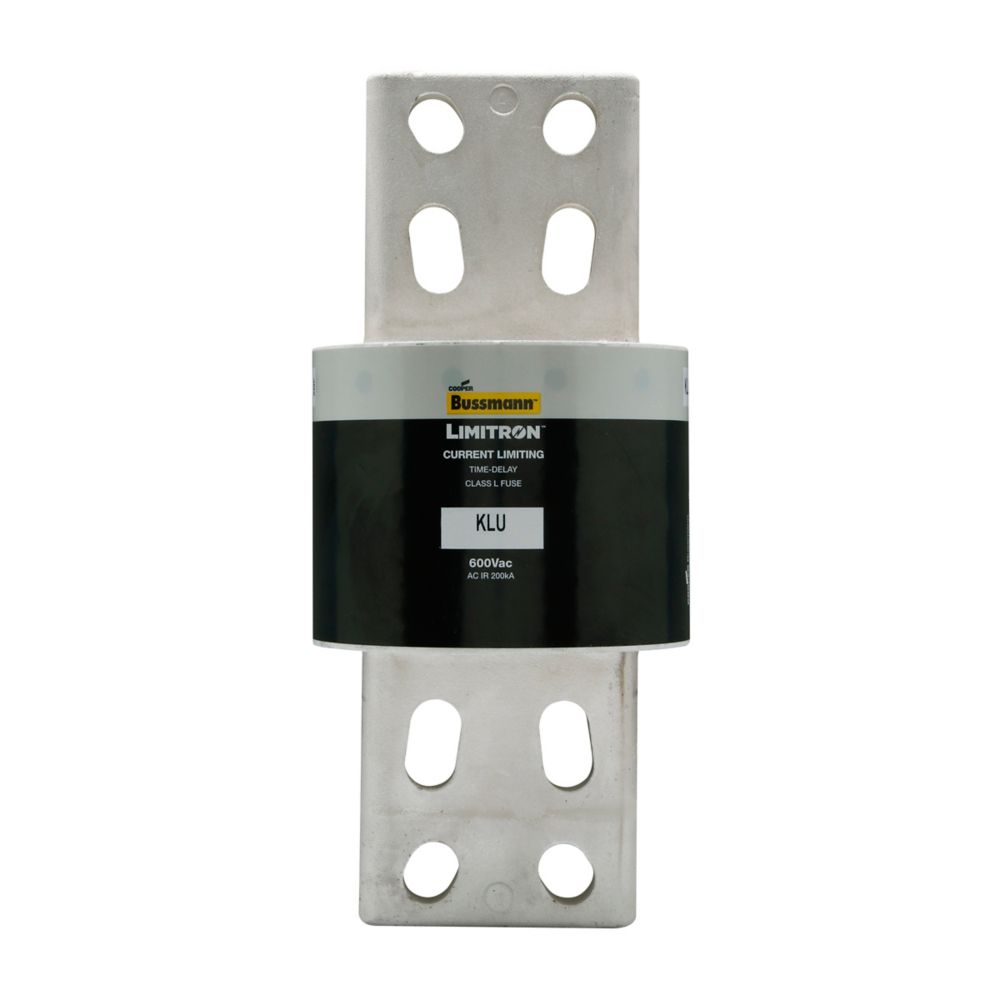

KLU-3000 is a Bussmann Eaton Class L time delay fuse rated for 3000 amps and 600 volts AC with bolt mounting.This KLU series fuse features a time delay of minimum 5 seconds at 500% rated amps, current limiting design, and a high interrupt rating of 200kA at 600VAC. It is a bolt-on type fuse with non-indicating construction, measuring approximately 5.03 inches by 10.75 inches, suitable for general purpose protection in electrical distribution systems.
- Key Specifications
- Amperage: 3000A
- Voltage Rating: 600 VAC
- Fuse Type: Time Delay (Slow Blow)
- Interrupt Rating: 200kA
- Mounting Type: Bolt Mount
- Series: KLU
- Class: UL Class L
- Physical Size: 5.03" x 10.75"
- Non-indicating
- Current Limiting
- Minimum 5 seconds delay at 500% rated amps
Specifications
- Part Number: KLU-3000
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KLU
- Voltage : 600
- Amperage : 3000
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712497039
- GTIN : 00051712497039
- Dimensions : 10.75 in x 5 in x 5 in (Length/Depth x Height x Width)
- Weight : 16.85
