Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

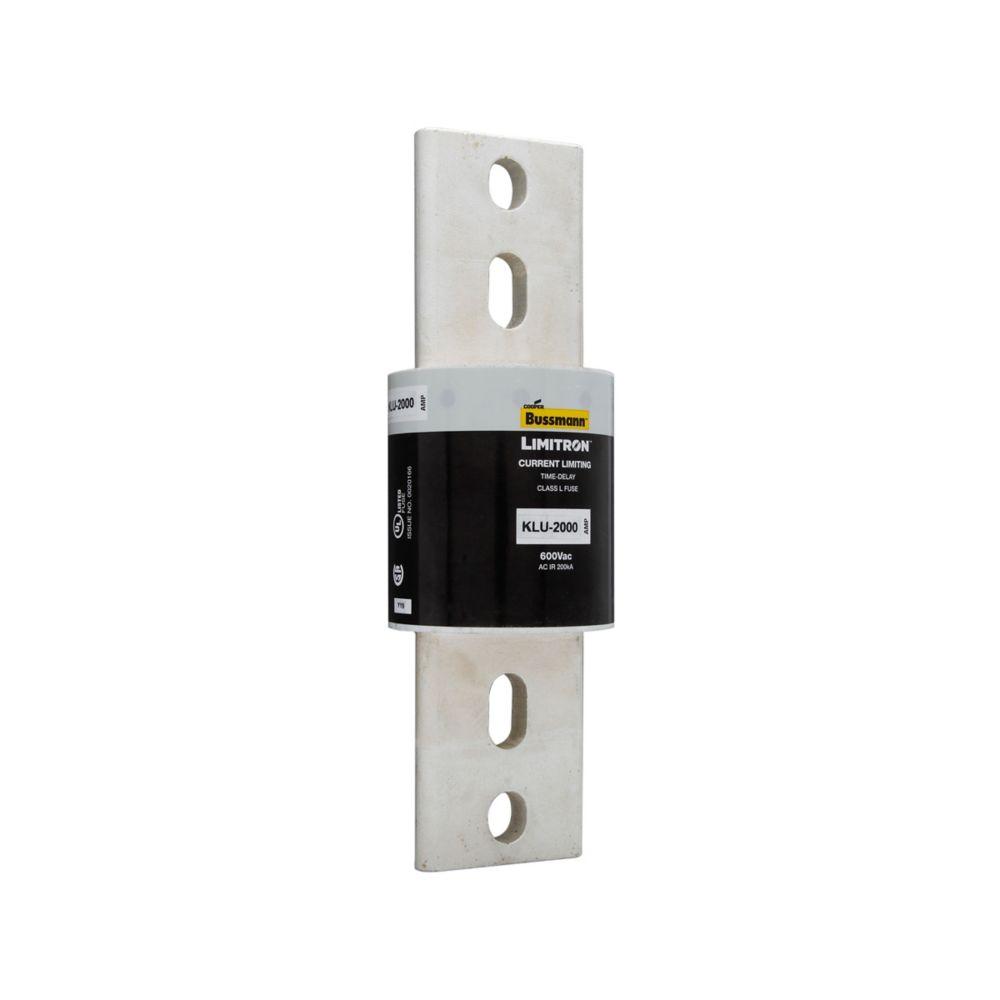

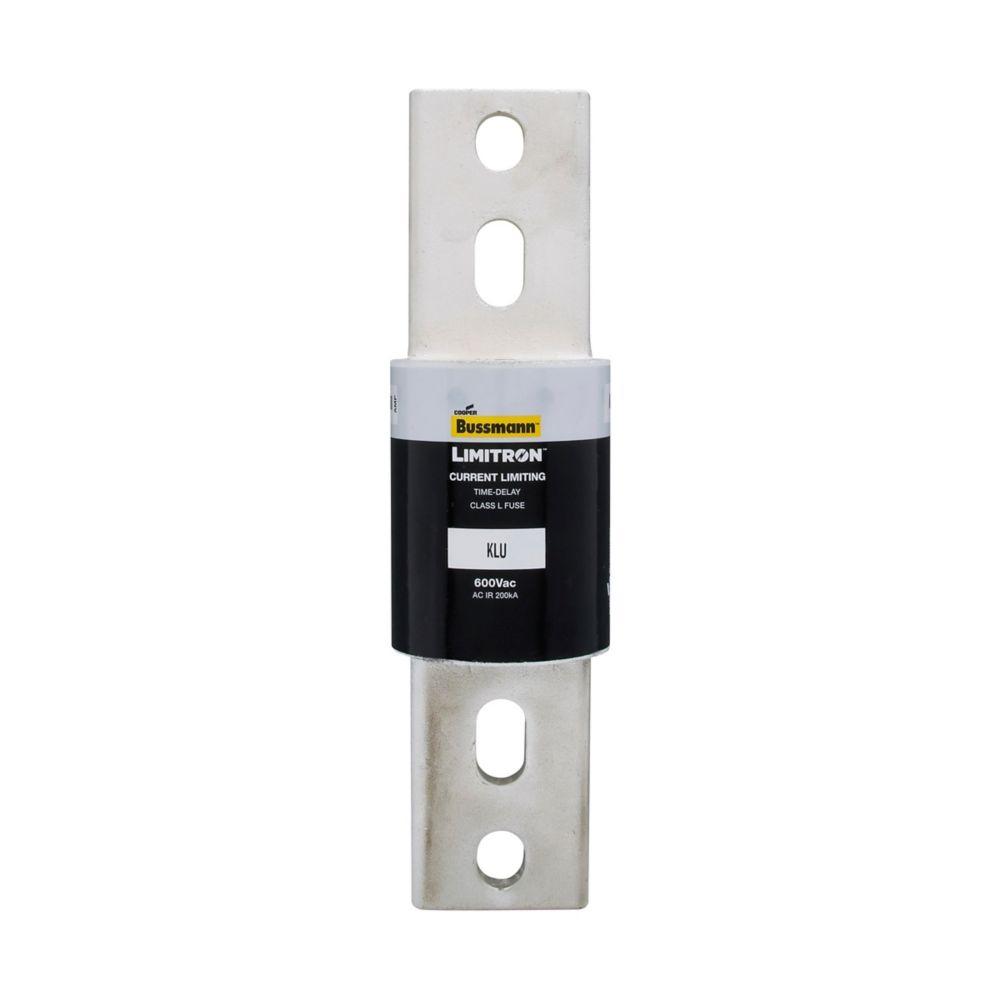

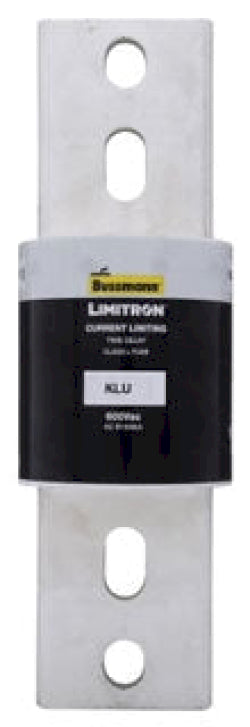

KLU-2000
KLU-2000 is a high-performance Eaton Bussmann Class L time-delay fuse rated for 2000 amps and 600 volts AC, designed for reliable circuit protection.This fuse features a bolted blade end connection with a bolt mounting method, providing secure installation and excellent electrical contact. It offers a 200kA interrupting rating at 600 VAC and a 5-second time delay at 500% overload, making it suitable for demanding industrial and commercial applications. The KLU-2000 is non-indicating and complies with CE and RoHS standards.
- Amperage Rating: 2000 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 200 kAIC at 600 VAC
- Class: L
- Time-Delay: 5 seconds at 500% overload
- Poles: 1
- Mounting Type: Bolt
- Connection: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Certifications: CE Marked, RoHS Compliant
- Series: Bussmann LIMITRON KLU
Specifications
- Part Number: KLU-2000
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : KLU
- Voltage : 600
- Amperage : 2000
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 3.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712135108
- GTIN : 00051712135108
- Country of Origin : Mexico
- Dimensions : 10.75 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 8.3
- Certification : CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
