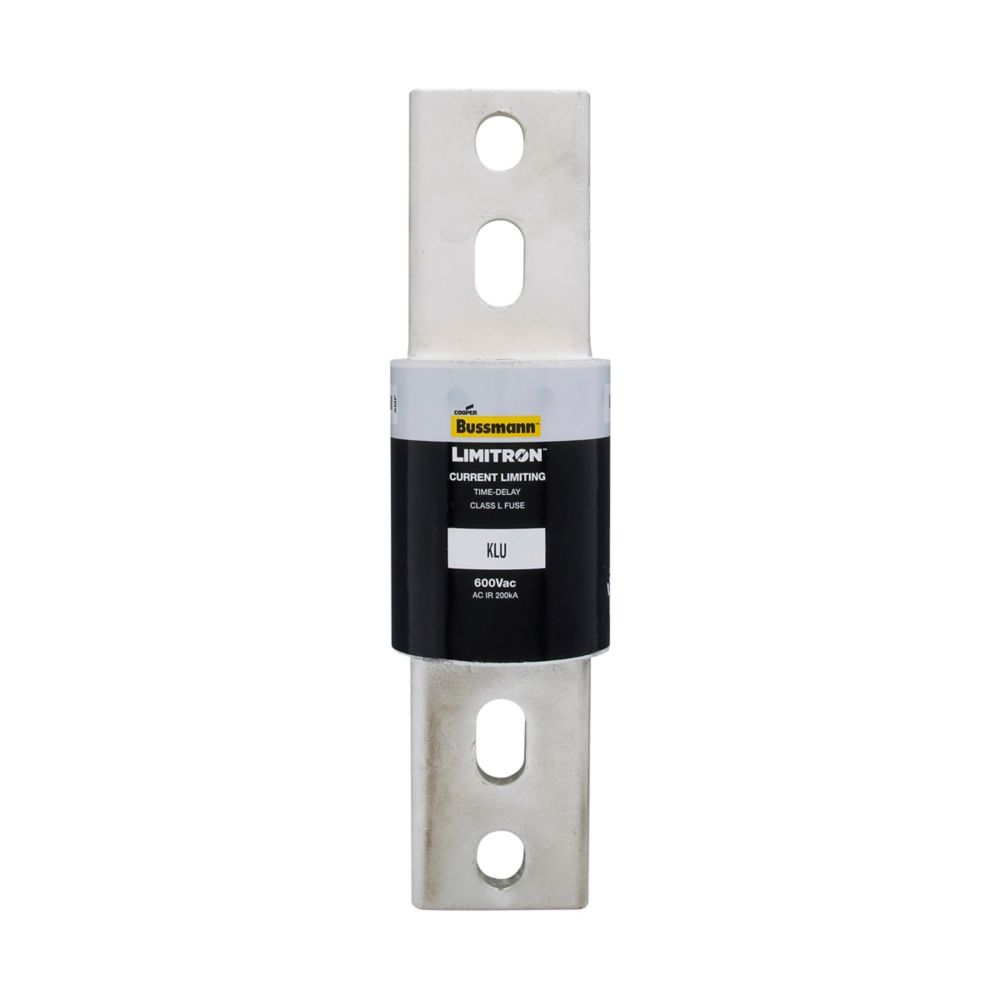

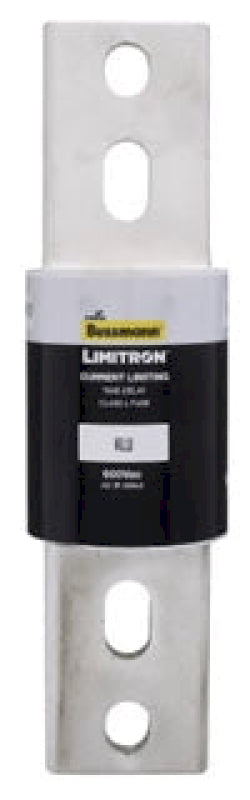

KLU-1500 - Bussmann Eaton Class L Fuse 1500A 600VAC 200kAIC Bolt-In Non-Indicating

KLU-1500

KLU-1500 is a Bussmann Eaton Class L fuse designed for high-amperage circuit protection in industrial and commercial power distribution systems. This fast-acting, current-limiting fuse features a 1500A amperage rating, 600VAC voltage rating, and a 200kA interrupting rating for reliable performance under fault conditions. The KLU-1500 is a bolt-in, non-indicating fuse with a copper link construction, suitable for use in bolted blade terminal applications. This fuse is part of the Bussmann LIMITRON series and is RoHS compliant and CE marked. It is designed for use in applications requiring robust protection for large motors, transformers, and feeder circuits. The KLU-1500 is a single-pole, general-purpose fuse with a time-delay response of 5 seconds at 500% of rated current.

• Part Number: KLU-1500
• Manufacturer: Bussmann, Eaton
• Series: LIMITRON
• Amperage Rating: 1500A
• Voltage Rating: 600VAC
• Interrupt Rating: 200kAIC at 600VAC
• Mounting Type: Bolt-In
• Connection: Bolted Blade End
• Fuse Indicator: Non-Indicating
• Response Time: 5 seconds at 500% rated current
• Compliance: RoHS, CE
• Application: General Purpose, Industrial, Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLU-1500
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KLU
• Voltage : 600
• Amperage : 1500
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 3
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712135085
• GTIN : 00051712135085
• Dimensions : 3 in x 1.75 in x 3 in (Length/Depth x Height x Width)
• Weight : 5.95
• Certification : UL, CSA, CE
