KLU-1200 - Eaton Bussmann Series Class L 1200A 600V Fast-Acting Current Limiting Fuse, 200kA Interrupt, Bolt-On Mount, Non-Indicating, RoHS, CE

KLU-1200

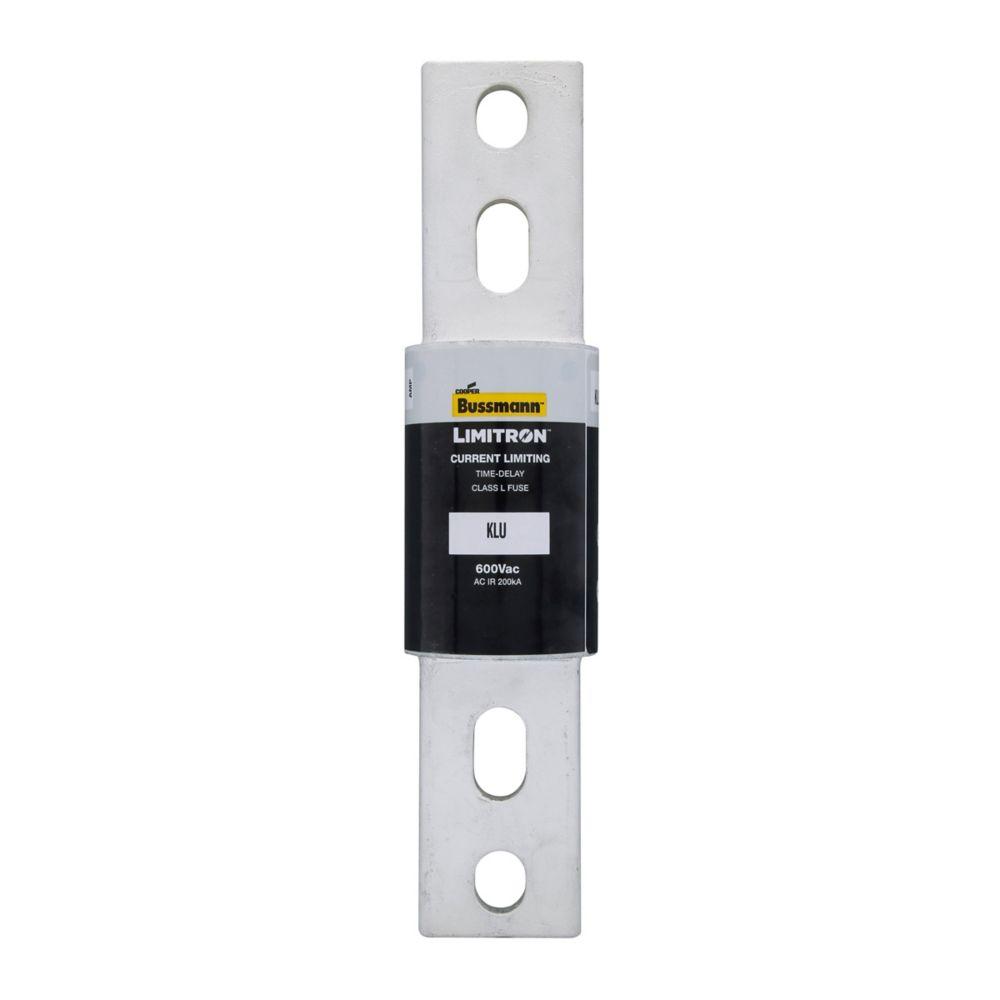

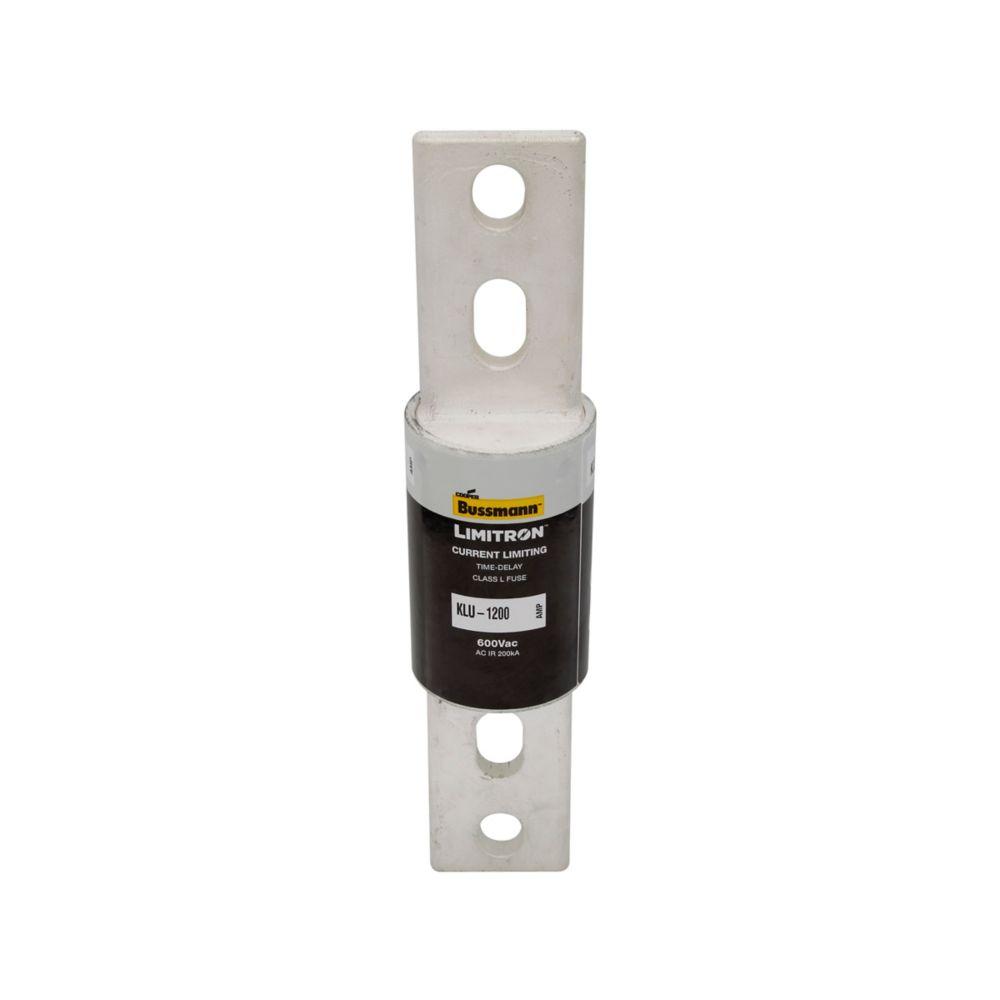

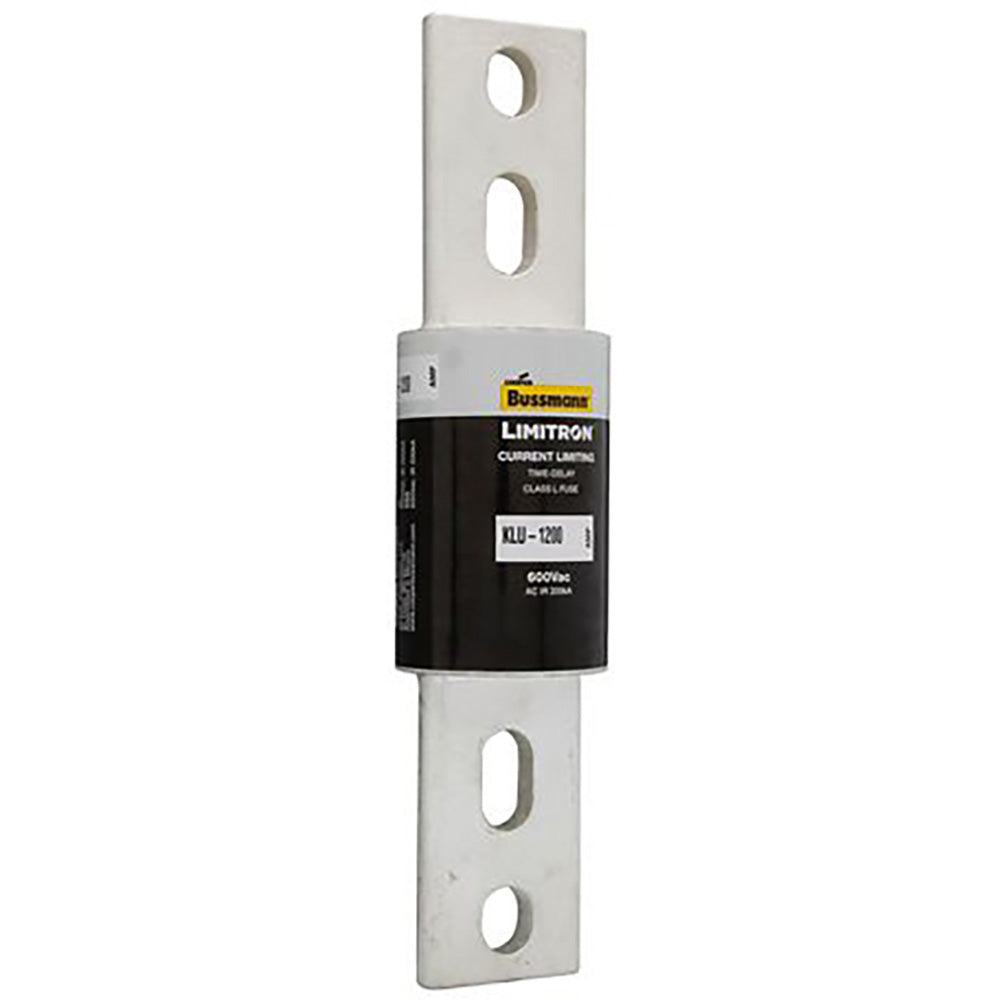

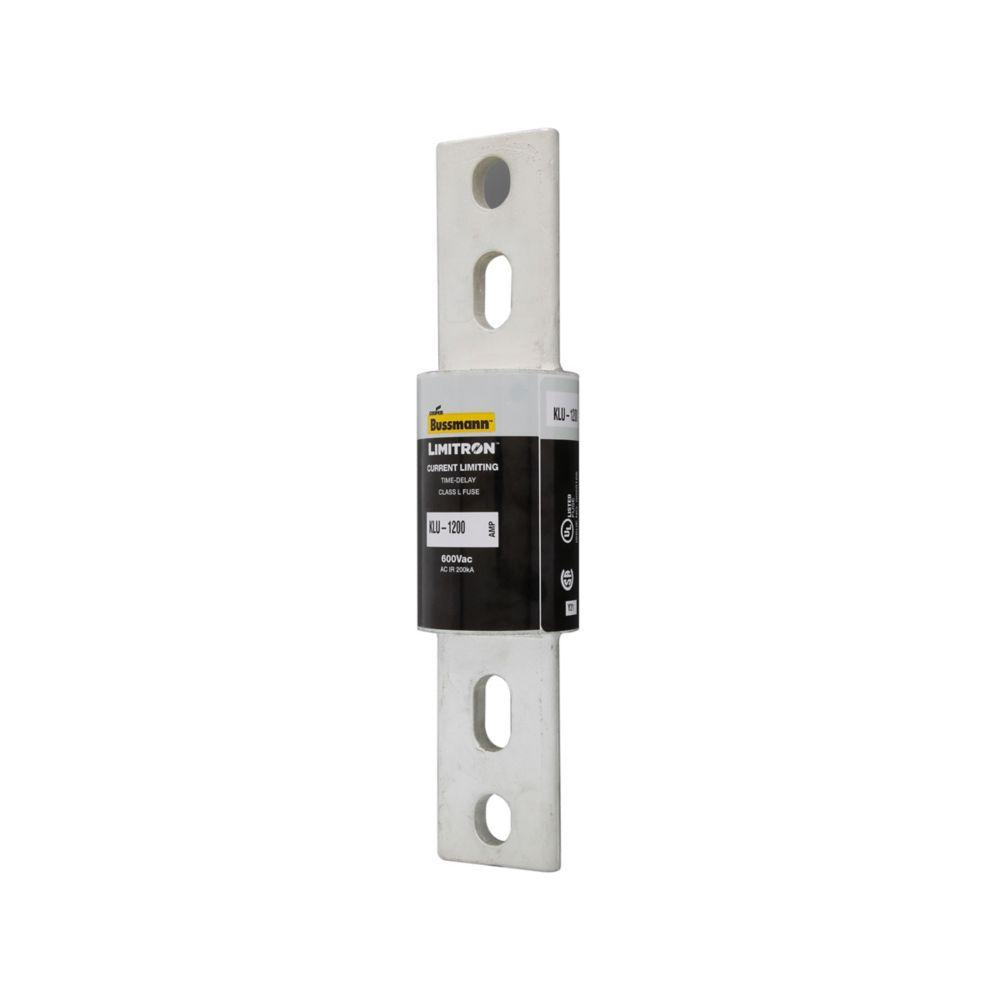

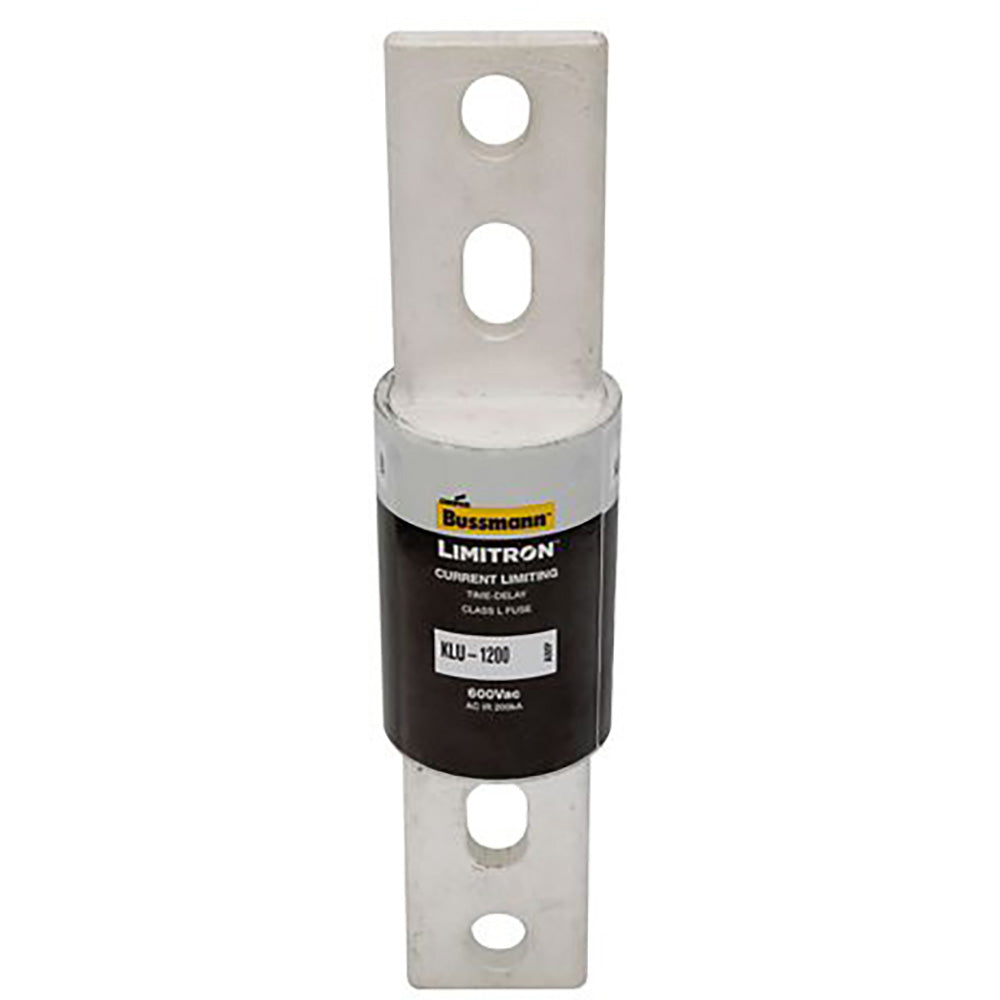

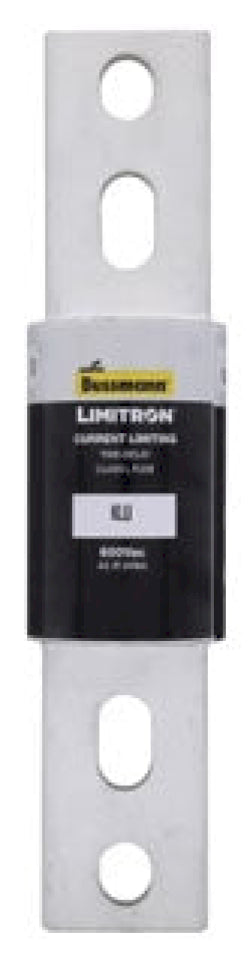

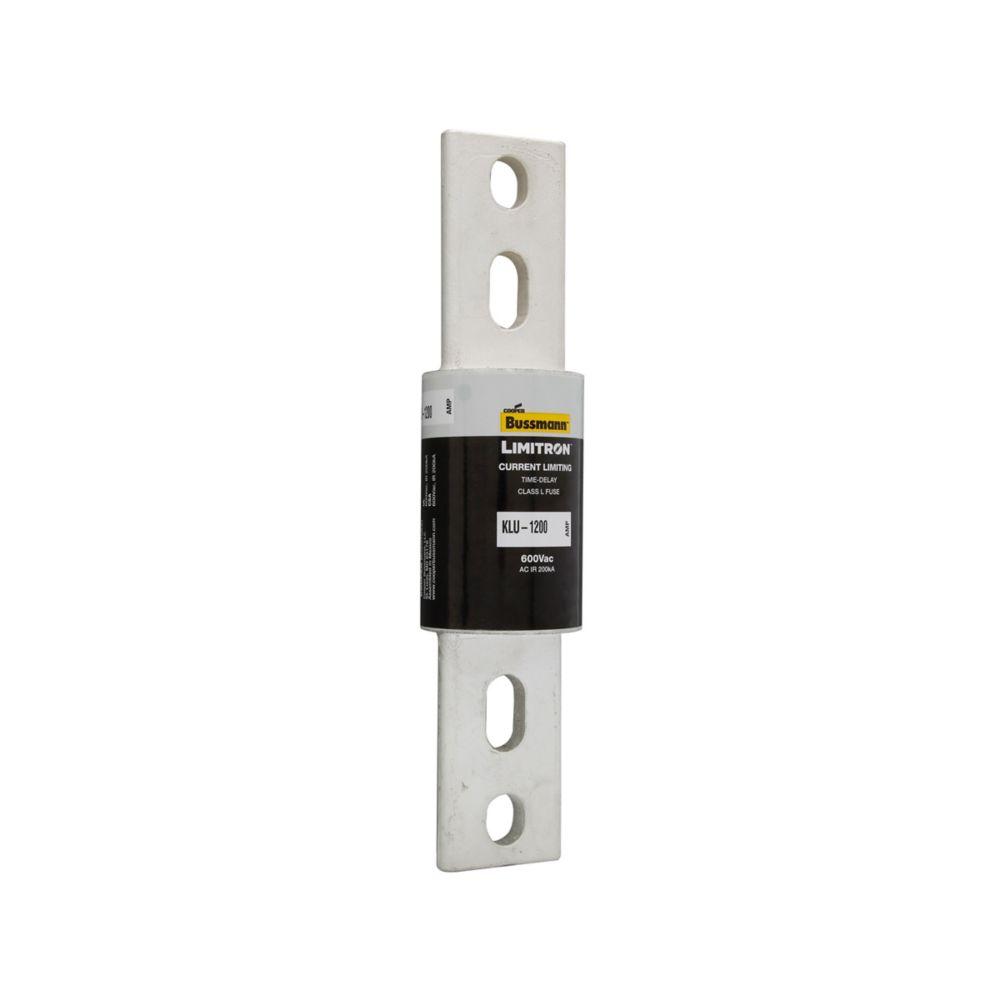

KLU-1200 is an Eaton Bussmann Series Class L fast-acting, current limiting fuse designed for robust circuit protection in demanding electrical applications.

This fuse features a 1200A amperage rating, 600V voltage rating, and a high 200kA interrupting capacity, ensuring reliable performance in high-fault environments. The KLU-1200 is a non-indicating, bolt-on cartridge fuse with a time-delay element, providing selective coordination and component short-circuit protection. It is constructed with fiberglass/melamine for durability and is compliant with RoHS and CE standards.

Key Specifications
• Amperage: 1200A
• Voltage: 600V
• Poles: 1
• Mounting Type: Bolt-on
• Interrupt Rating: 200kA at 600VAC
• Series/Frame: KLU, Class L
• Trip Unit: Non-indicating, time-delay (5 sec at 500% rated current)
• Certifications: RoHS, CE
• Connection: Bolted blade end x bolted blade end
• Body Size: 2.5 in diameter x 10.75 in length
• Material: Fiberglass/melamine
• Packaging: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLU-1200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : KLU
• Voltage : 600
• Amperage : 1200
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 2.4
• Class Rating : L
• Barrels : 1

Product Data

• UPC : 051712135078
• GTIN : 00051712135078
• Country of Origin : Mexico
• Dimensions : 10.75 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 4.25
• Certification : CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
