Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

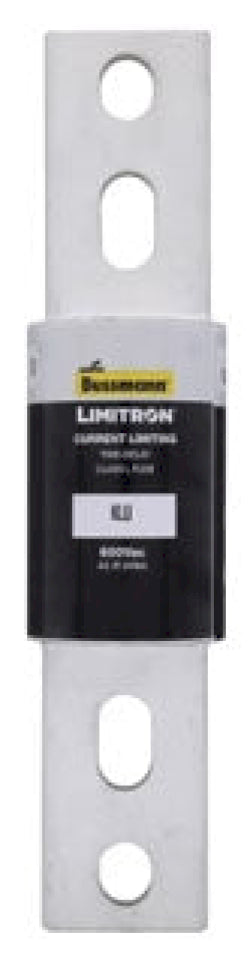

KLU-1000
KLU-1000 is a Bussmann Series Class L fuse designed for high-current applications requiring reliable protection and fast-acting performance. This Eaton fuse features a 1000A current rating, 600V voltage rating, and a 200kAIC interrupting rating at 600Vac. It utilizes a bolted blade end connection for secure mounting and is suitable for use in large distribution switchboards, power panelboards, and industrial disconnects. The fuse is non-indicating and constructed with fiberglass/melamine for durability.
- Part Number: KLU-1000
- Manufacturer: Eaton
- Series: Bussmann Series Class L
- Amperage Rating: 1000A
- Voltage Rating: 600V
- Interrupt Rating: 200kAIC at 600Vac
- Mounting Type: Bolted Blade
- Connection: Bolted Blade End x Bolted Blade End
- Response Time: 5 seconds at 500% rated current
- Material: Fiberglass/Melamine
- Compliance: UL, CSA, CE, RoHS
- Application: Large Distribution Switchboards, Power Panelboards, Industrial Disconnects
Specifications
- Part Number: KLU-1000
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : KLU
- Voltage : 600
- Amperage : 1000
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.4
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 051712135061
- GTIN : 00051712135061
- Country of Origin : Mexico
- Dimensions : 10.75 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 4.338
- Certification : CE/UL-248-10 Guide JDDZ/CSA Class 1422-02
