Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLSR400

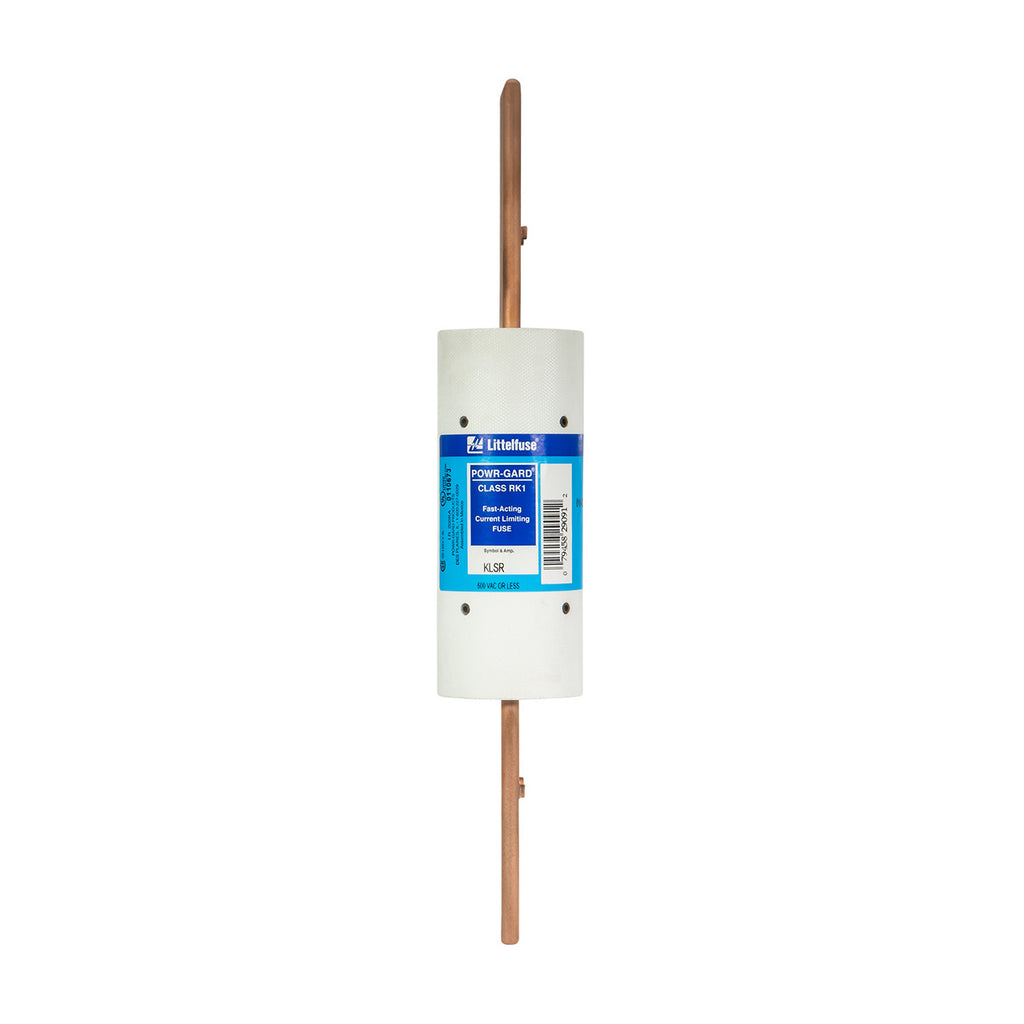

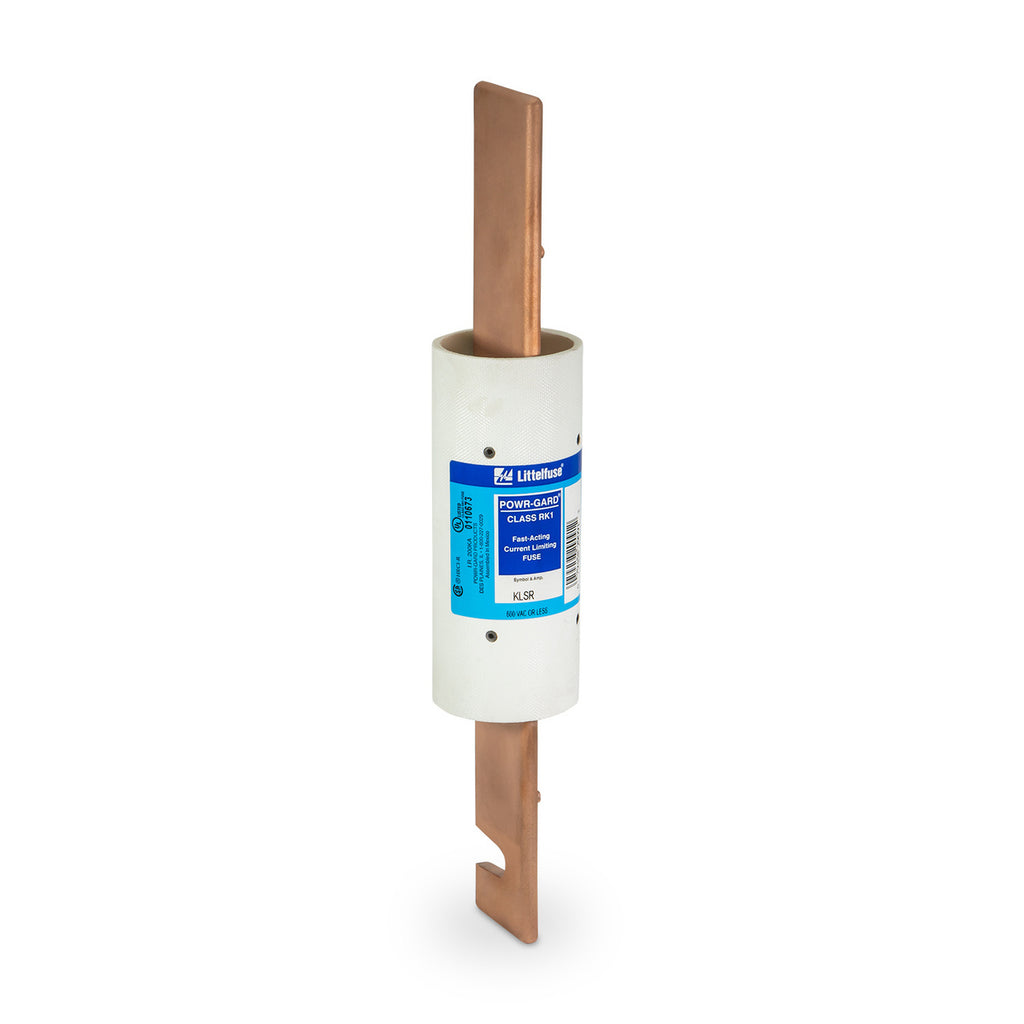

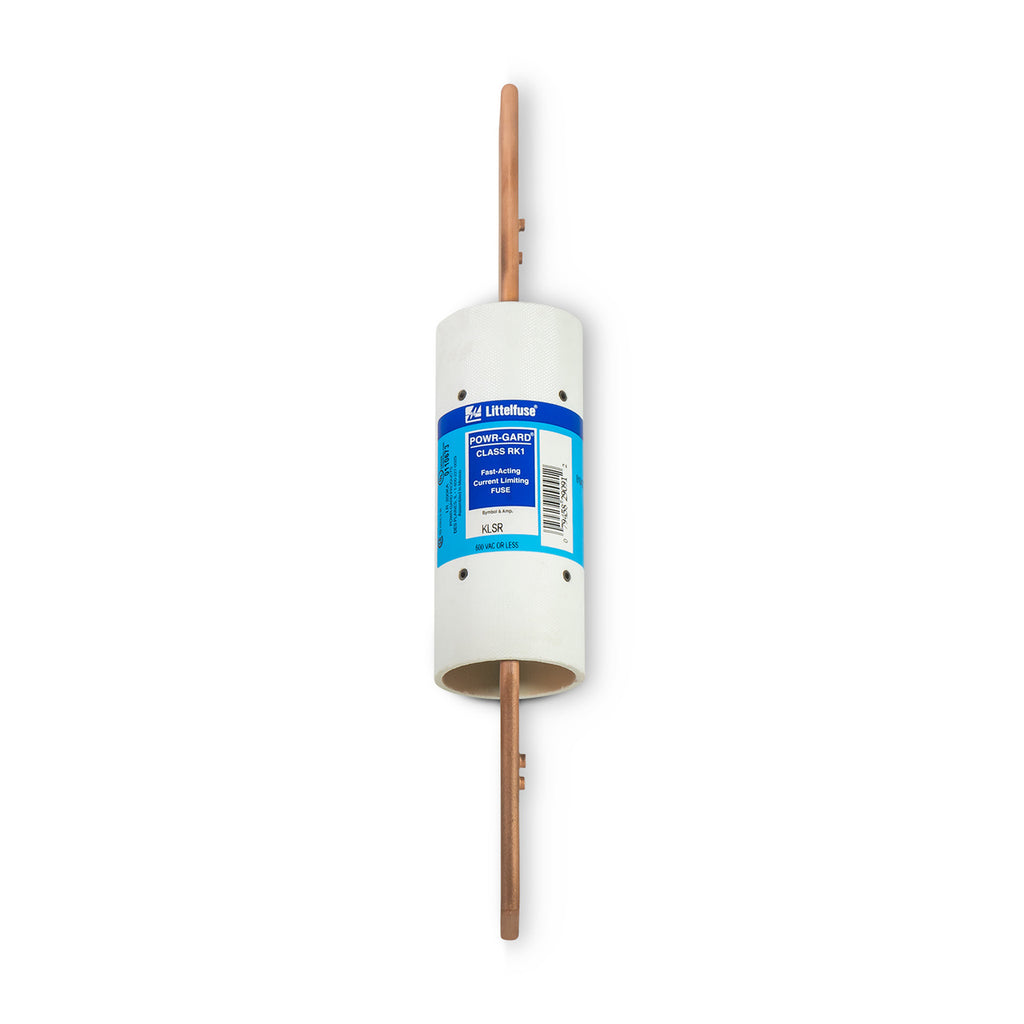

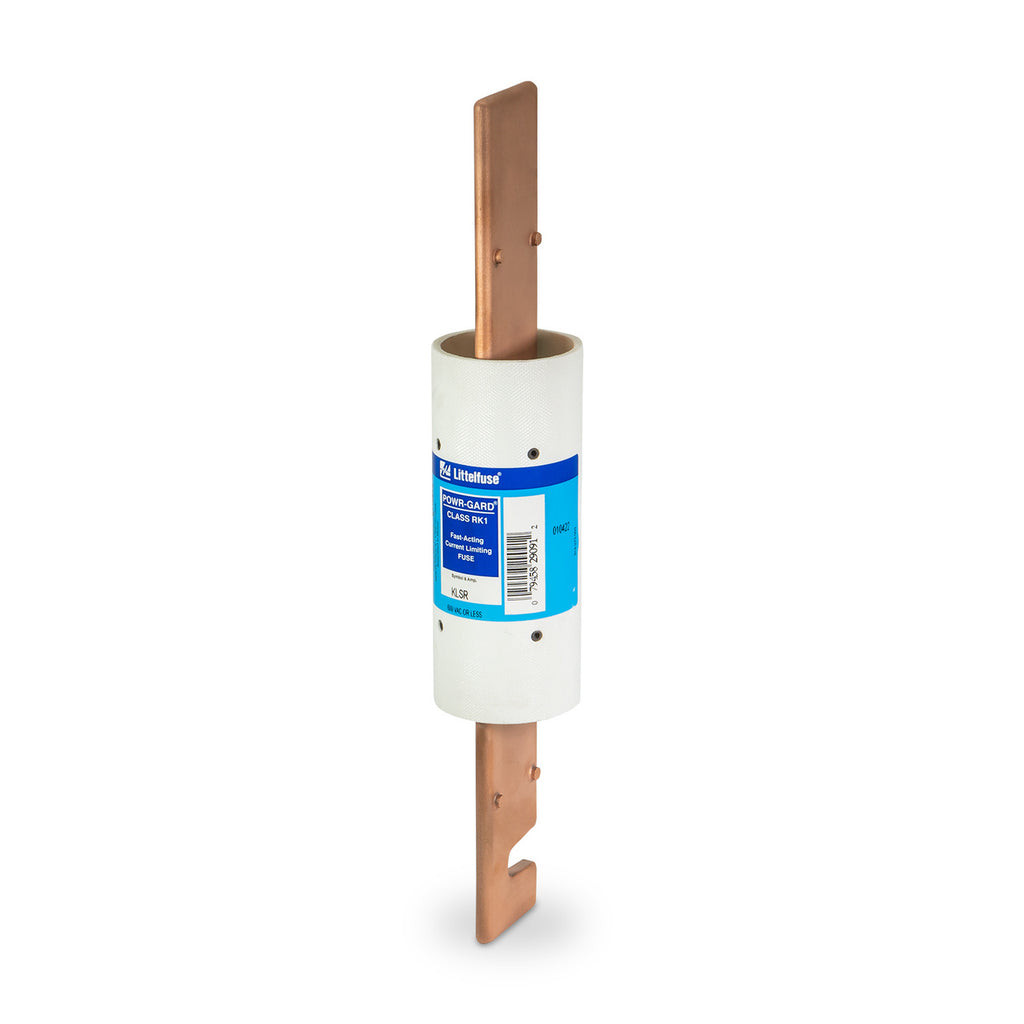

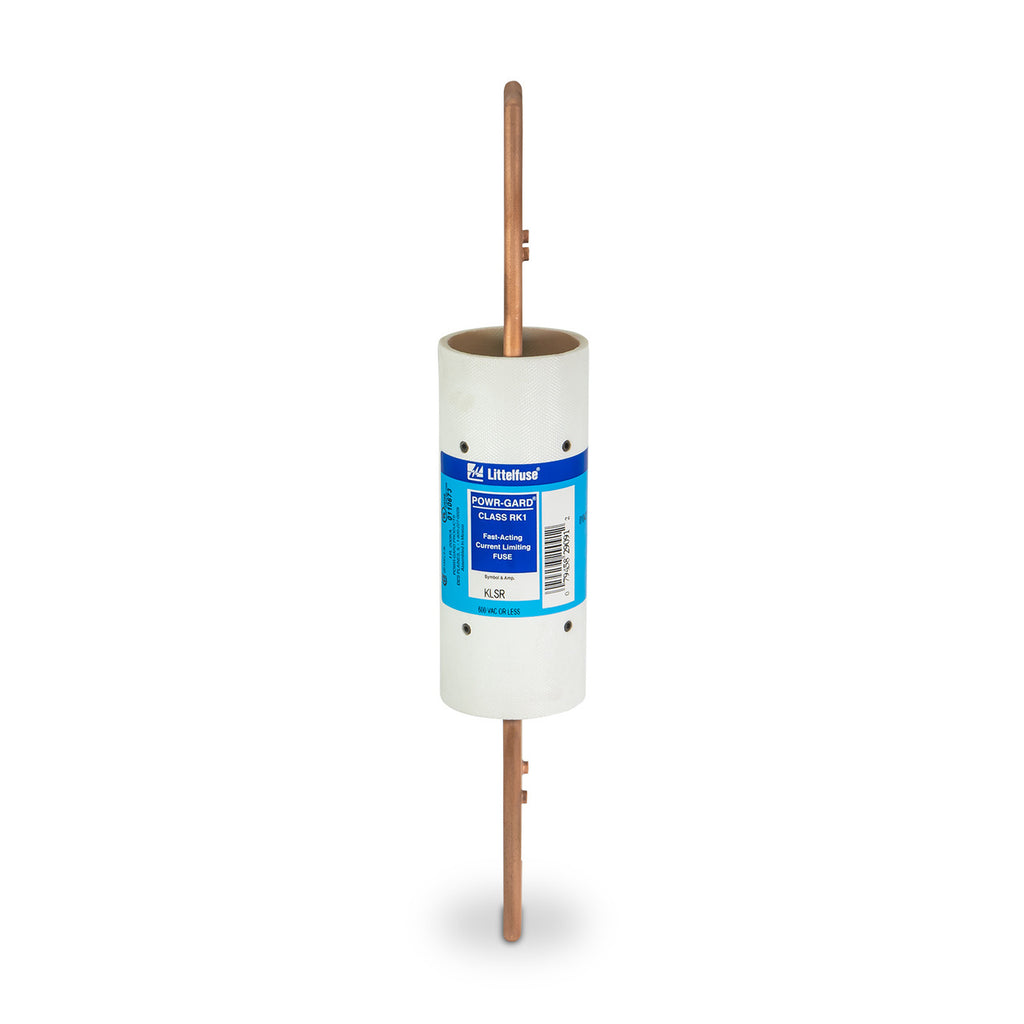

KLSR400 is a Littelfuse Class RK1 fast acting cartridge fuse rated for 400 amps and 600 volts AC/300 volts DC.This current limiting fuse is designed for noninductive loads such as resistance heaters and lighting circuits. It features a knife-blade size and requires a fuse holder for mounting. The KLSR400 offers a high interrupting rating of 200,000 amps AC and complies with UL 248-12, CSA, and CE certifications.
- Amperage Rating: 400 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Fuse Type: Fast Acting Cartridge
- Mounting Type: Requires Holder
- Interrupting Rating: 200,000 A AC / 20,000 A DC
- Size: Knife-Blade
- Series: KLSR
- Certifications: UL, CSA, CE
- Application: Noninductive loads, resistance heaters, lighting circuits
Specifications
- Part Number: KLSR400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLSR
- Type : KLSR
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945829093
- GTIN : 00079458290936
- Weight : 2
