Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLSR100

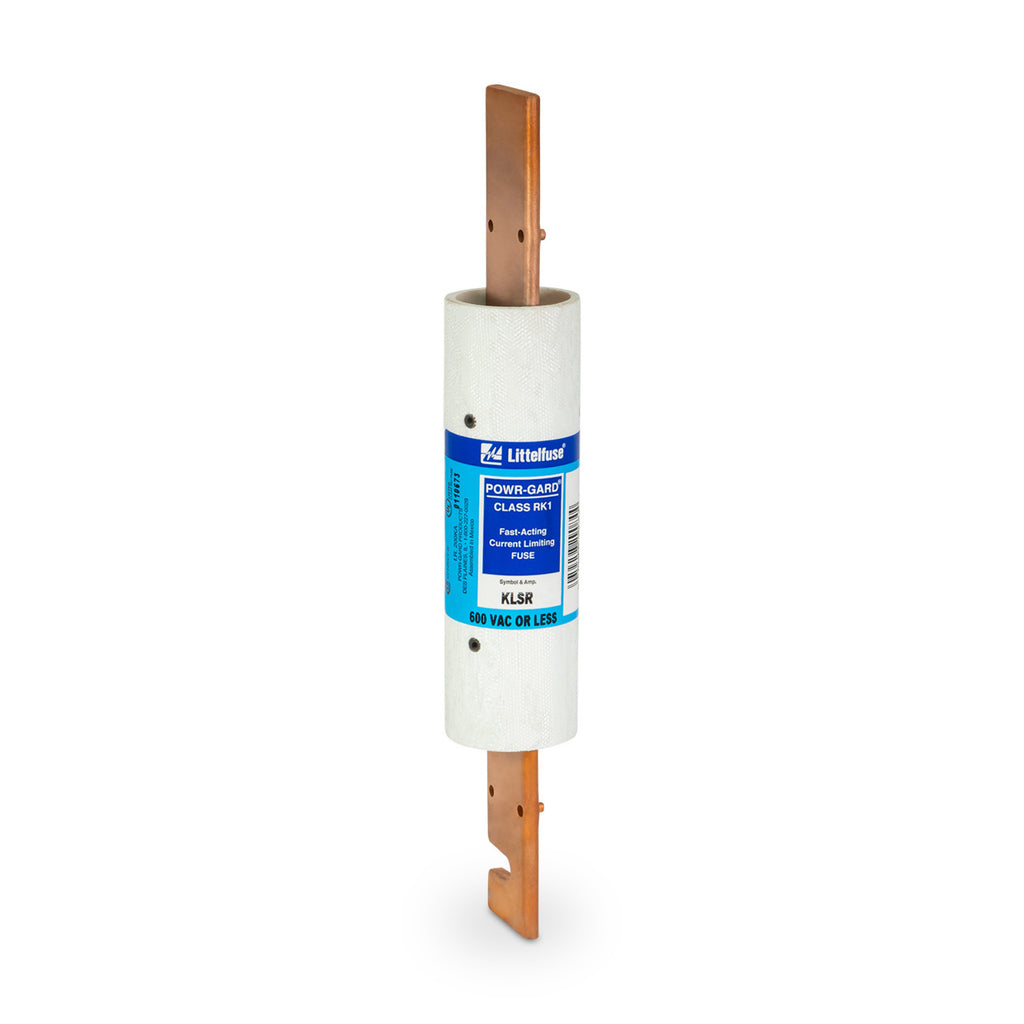

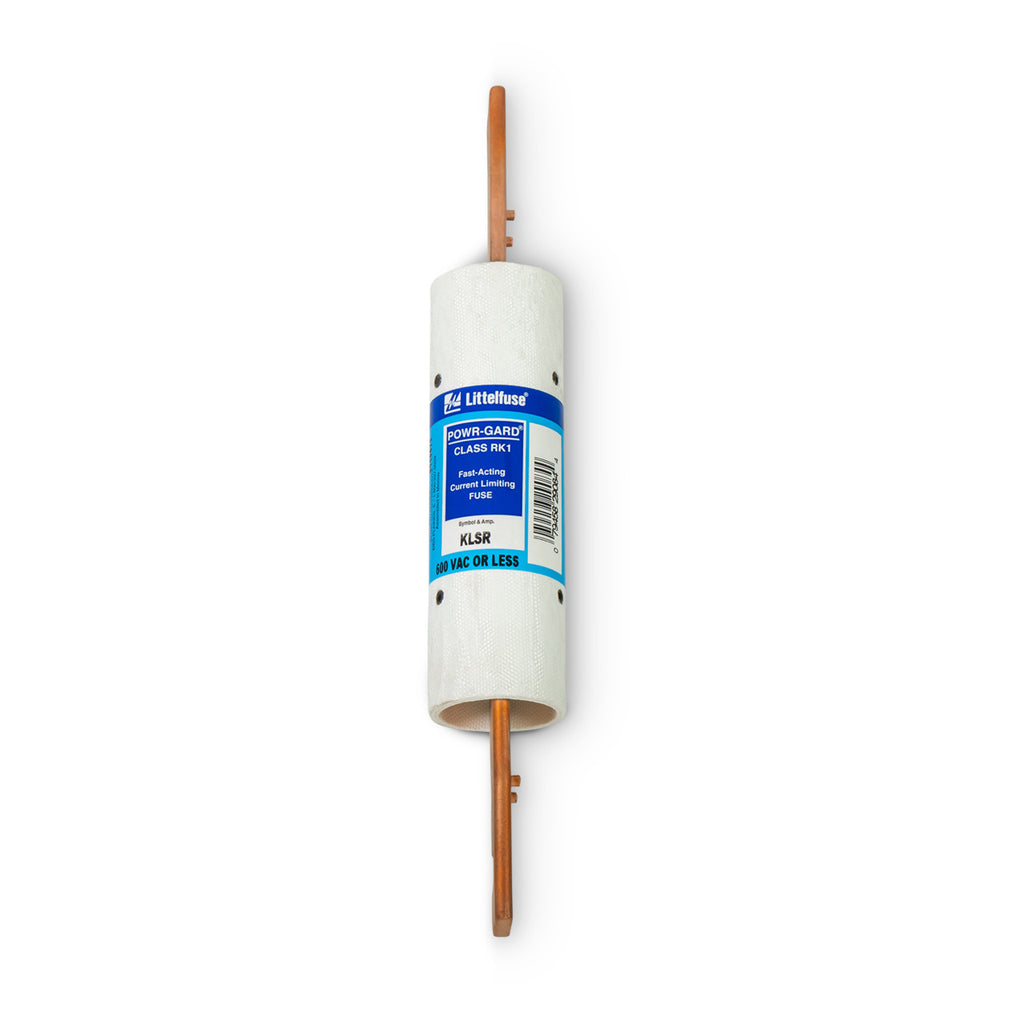

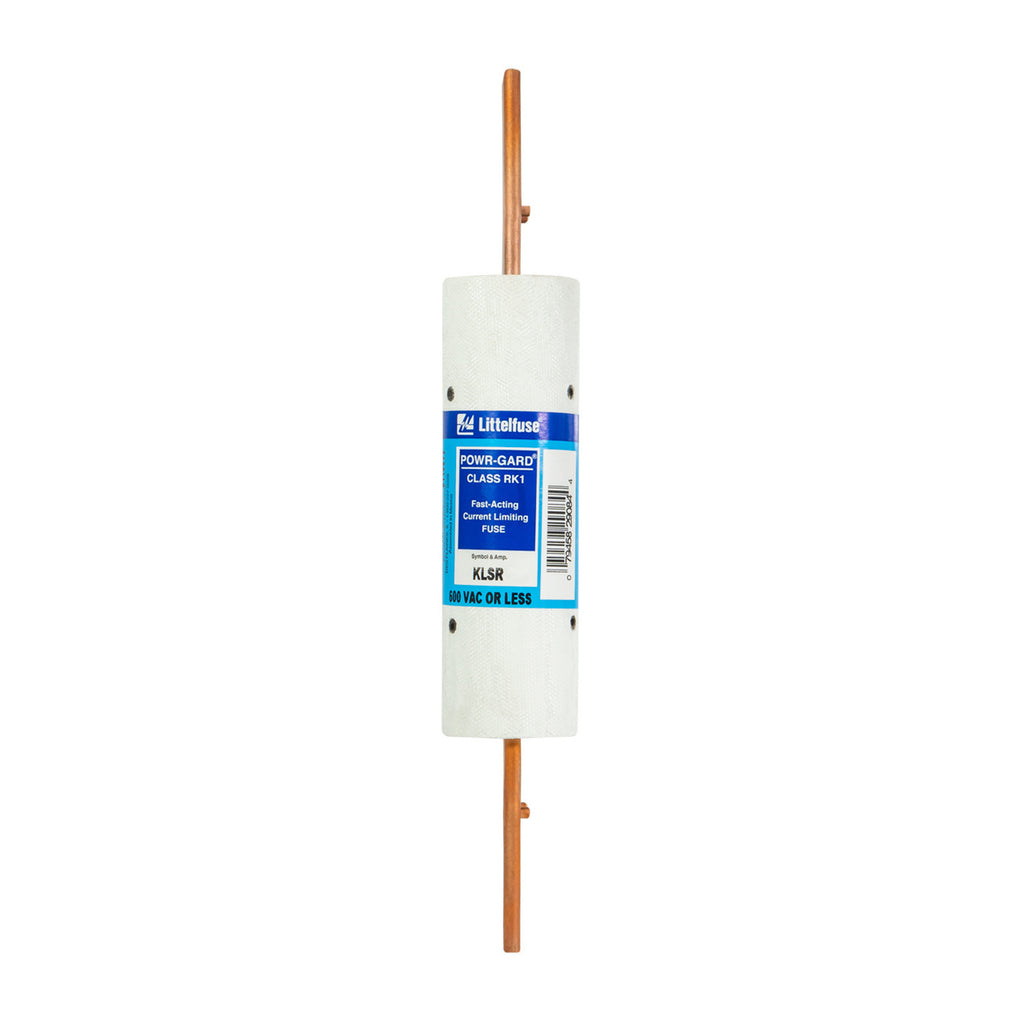

KLSR100 is a Littelfuse Class RK1 fuse designed for reliable overcurrent protection in industrial and commercial applications.This 100 amp fuse features a 600 volt AC and 300 volt DC voltage rating with a knife-blade size and current limiting design. It offers a fast-acting response and a high interrupting rating of 200,000 amperes, meeting UL 248-12, CSA, and CE certifications for safety and performance.
- Amperage: 100A
- Voltage Rating: 600V AC / 300V DC
- Fuse Class: Class RK1
- Size: Knife-Blade
- Interrupting Rating: 200kAIC
- Fast Acting
- Current Limiting
- Certifications: UL 248-12, CSA, CE
- Physical Length: 7-7/8 inches
- Diameter: 1-5/16 inches
Specifications
- Part Number: KLSR100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLSR
- Type : KLSR
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 3.09
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458290820
- GTIN : 00079458290820
- Country of Origin : Mexico
- Weight : 3.04
- Certification : Supplemental Protection
