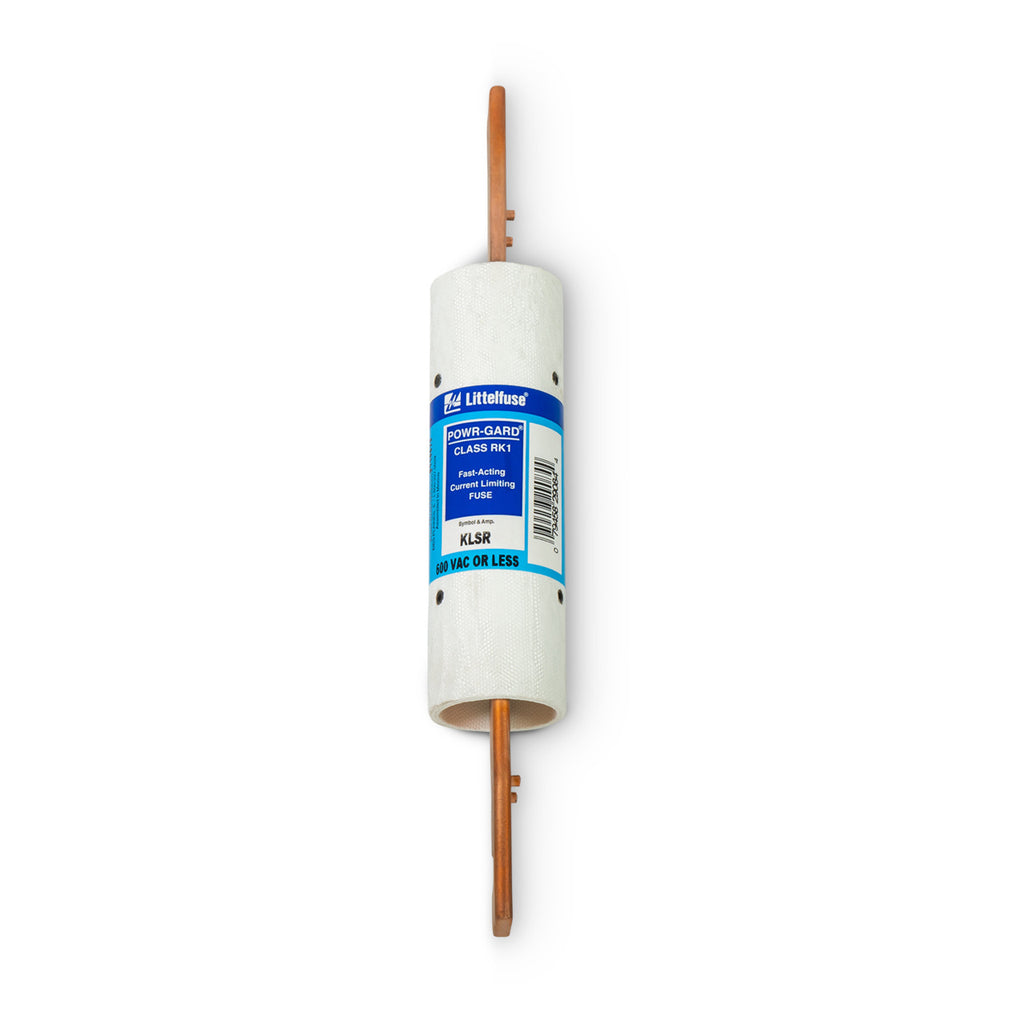

KLSR-100 - Littelfuse Class RK1 Fast-Acting Fuse 100A 600V AC

KLSR-100

KLSR-100 is a Class RK1 fast-acting fuse designed for reliable circuit protection in industrial and commercial applications. This fuse provides fast-acting overcurrent protection for systems operating at 100 amps and up to 600 volts AC. The KLSR-100 fuse features a robust construction suitable for demanding environments. It is engineered for high interrupting capacity and consistent performance, making it ideal for use in power distribution panels and motor control centers.

• Part Number: KLSR-100
• Manufacturer: Littelfuse
• Category: Fuse
• Type: Class RK1
• Amperage: 100 A
• AC Voltage Rating: 600 V
• DC Voltage Rating: 300 V
• Interrupting Rating: 200,000 A
• Opening Type: Fast-Acting
• Diameter: 1 5/16 inches
• Length: 7 7/8 inches
• Certifications: UL 248-12, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLSR-100
• Category : Fuse
• Item Subcategory : Fast-Acting (Single-Element)
• Type : RK1
• Voltage : 600 AC / 300 DC
• Amperage : 100 s
• AIC rating : 200 kA @ 600V AC, 20 kA @ 300V DC
• Mounting : Knife Blade Terminals

Product Data

• UPC : 007945829082
• GTIN : 00079458290820
• Dimensions : 1.311” Diameter x 7.874” Length (33.30mm x 200.00mm)
• Weight : 0.8 lb
• Certification : UL Listed (File: E81895), CSA Certified (File: LR29862), CE Marked
