Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLPC800

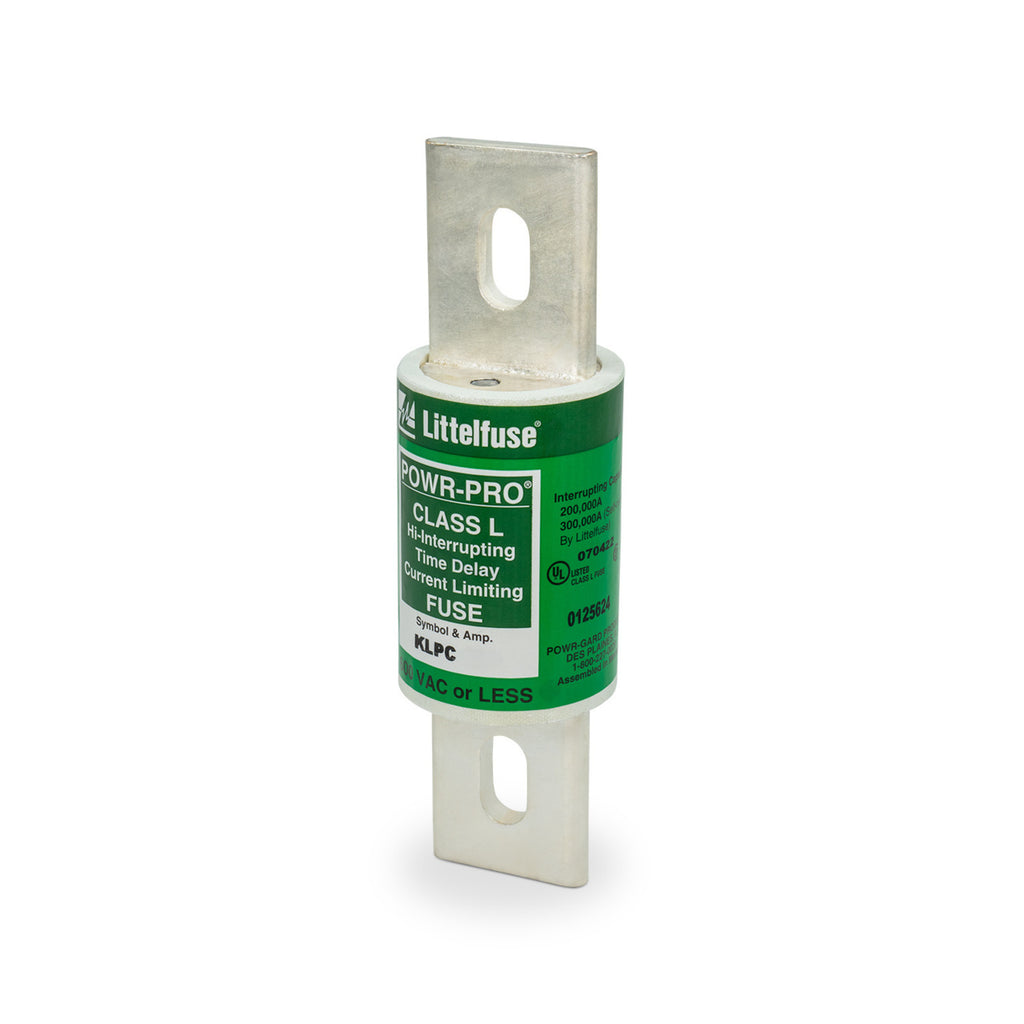

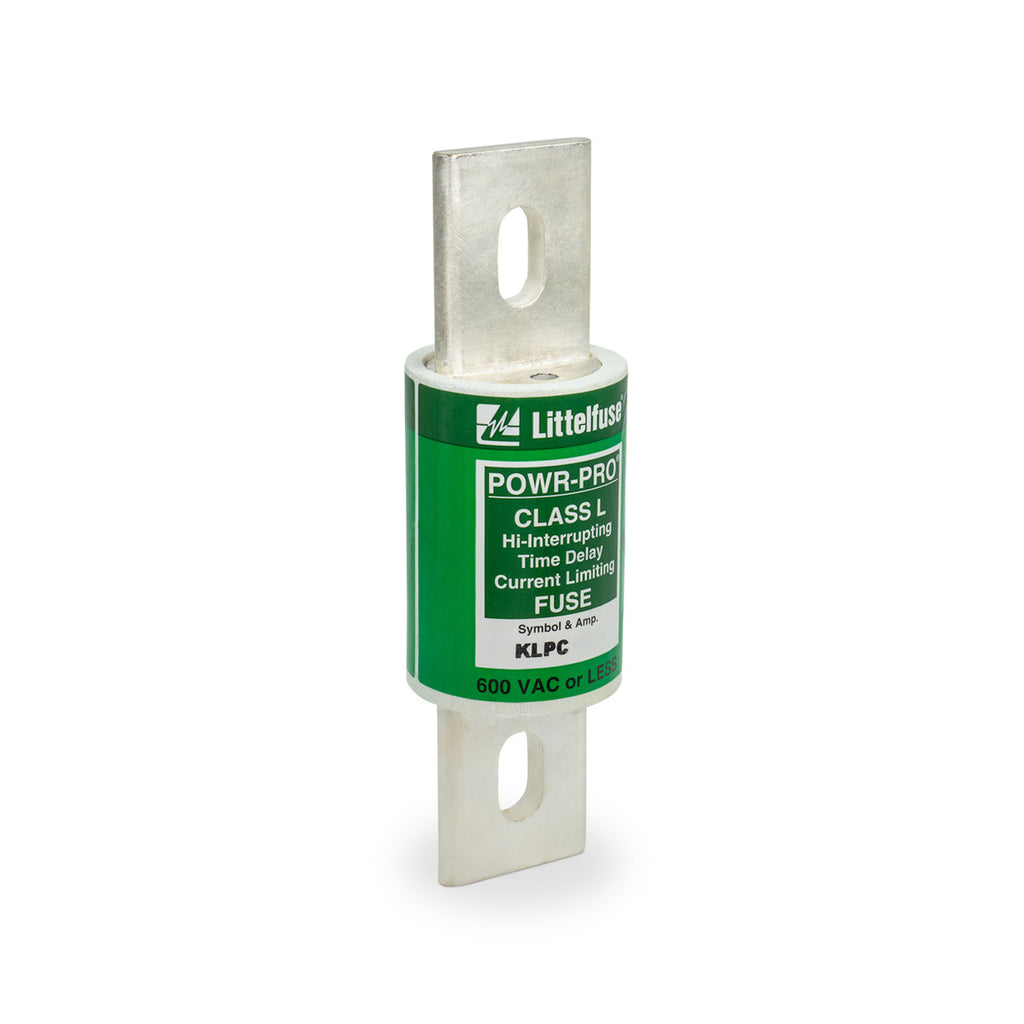

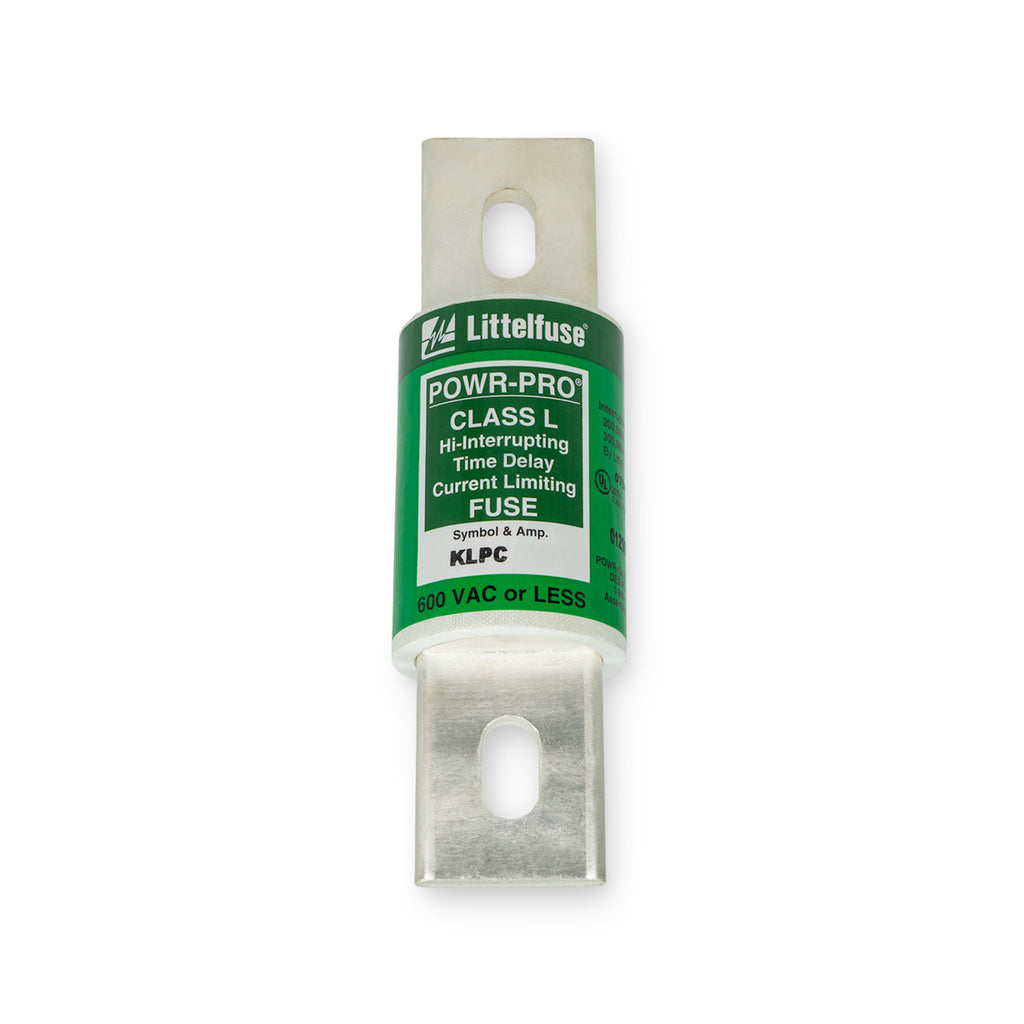

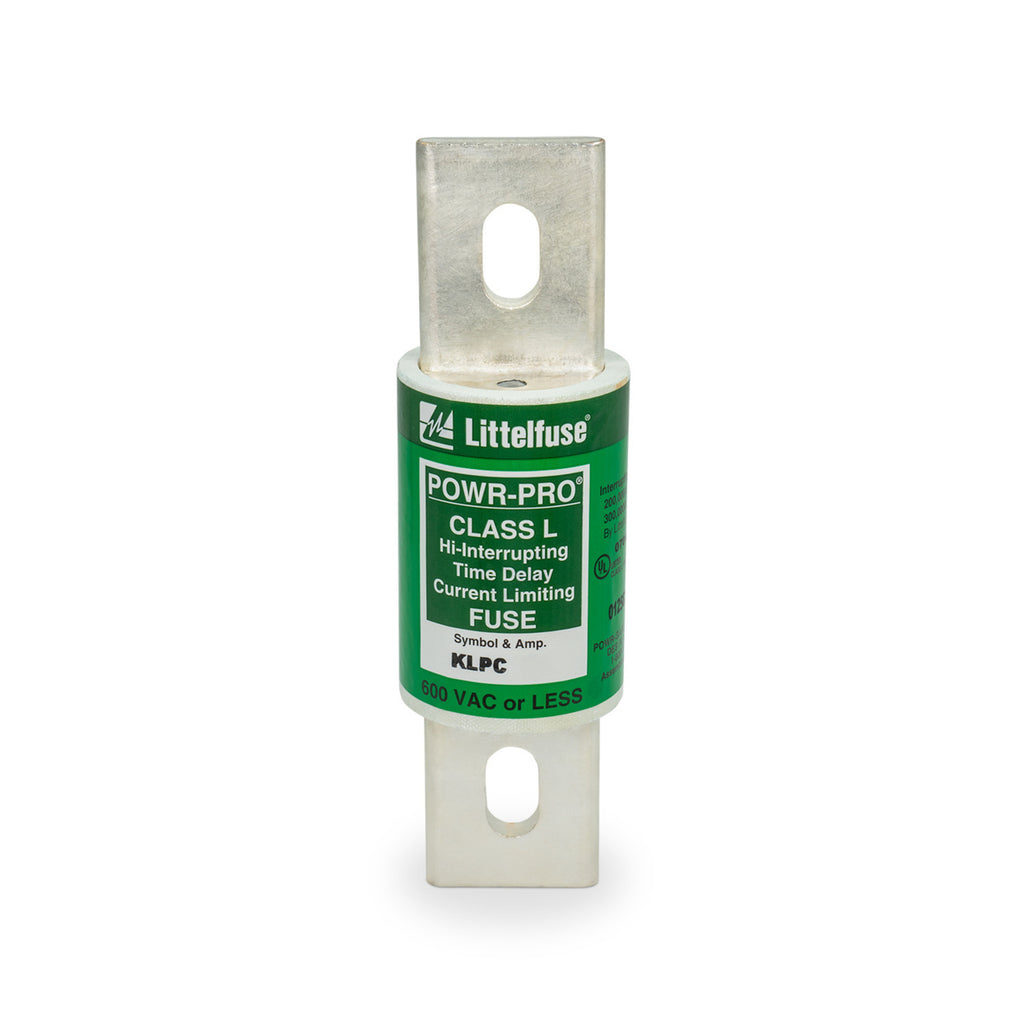

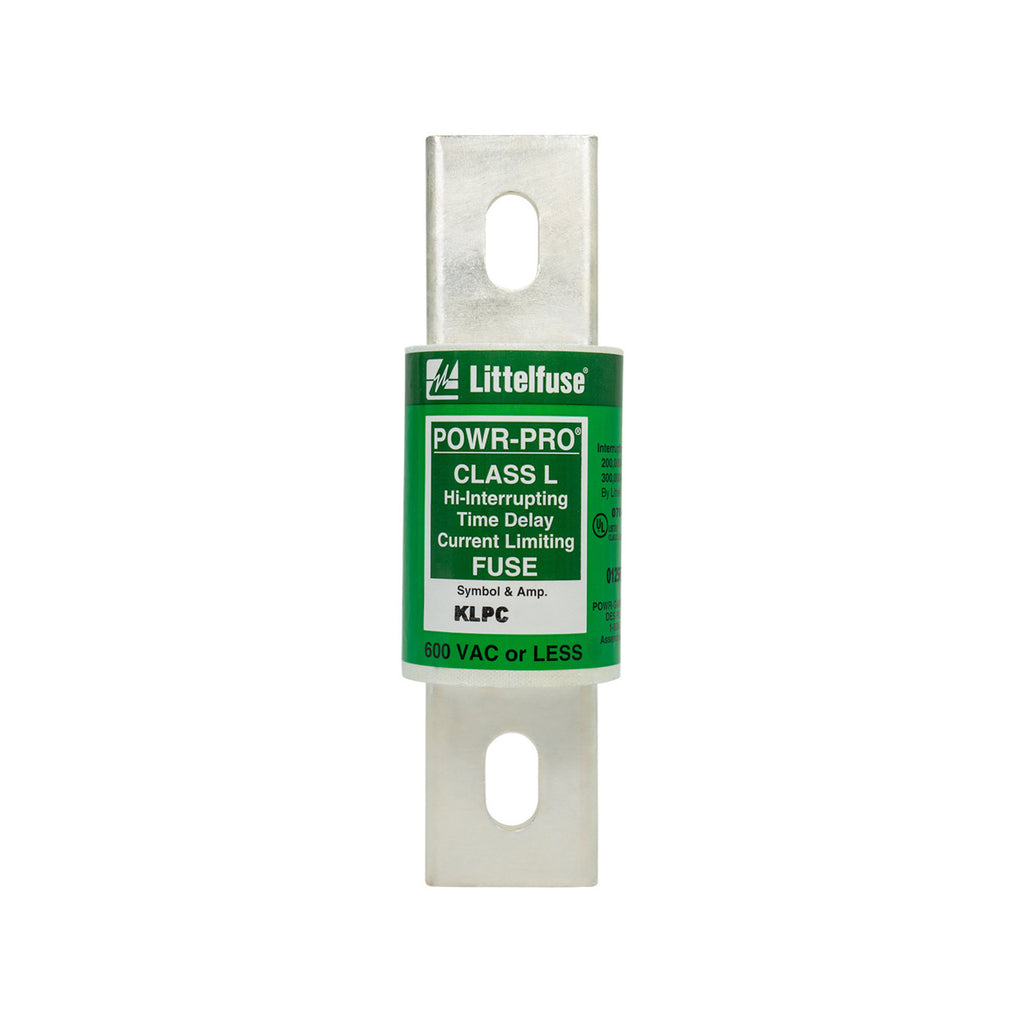

KLPC800 is a Littelfuse 800 Amp, 600 Volt AC Class L time delay fuse designed for reliable overcurrent protection.This KLPC series POWR-PRO fuse features current limiting and best-in-class time-delay withstand capabilities. It has silver links with silver-plated copper end bells and a glass-reinforced melamine body. Rated for 600 VAC and 480 VDC, it offers an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 480 VDC. The fuse is bolt-in mounted and UL listed, suitable for switchboard mains, motor control centers, and large motor branch circuits.
- Key Specifications
- Amperage: 800 A
- Voltage Rating: 600 VAC / 480 VDC
- Fuse Class: Class L
- Time Delay (Slo-Blo) Type
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 480 VDC
- Mounting Type: Bolt-In
- Body Material: Glass Reinforced Melamine
- Silver Links with Silver-Plated Copper End Bells
- Physical Size: 2" diameter x 8 5/8" length
- Certifications: UL Listed, CSA, CE
- Series: POWR-PRO® KLPC
- Part Number: KLPC800
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLPC
- Type : KLPC
- Voltage : 600
- Amperage : 800
- AIC rating : 300kA@600V
- Connection : Bolt-In
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
- Clip Center : 6.75
- UPC : 079458301038
- GTIN : 00079458301038
- Weight : 3.62
